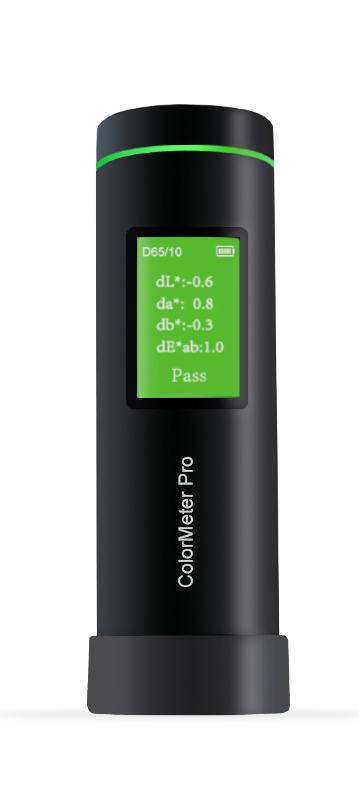

Small Size ColorMeter Pro

Measurement structure: D/8, including specular reflection light (SCI)
Measuring caliber: 8mm
Wavelength interval: 10nm
Wavelength range: 400-700nm

Availability:
  • ColorMeter Pro

  • NADE

  • 1

  • 1 year

  • China

Product Description

NADE small size ColorMeter Pro Digital Portable Colorimeter color tester 20 kinds of parameters, 26 kinds of light sources


ColorMeter SE/Pro/MAX is different from traditional colorimeters. It is small in size and can be placed in the user's pocket, making it more convenient to carry. At the same time, it adopts the D/8 structure that ordinary spectrophotometers have, and the measurement is more accurate; It can be wirelessly connected to Android or IOS devices, and the colors can be managed on the phone; with the color number search function, you can find the color you want. Colorimeter is widely used in different industries such as food, plastic cement, printing, paper, paint, weaving and dyeing.


Features

1. Colorimeter with more accurate color measurement

Adopt the international D/8 (integrating sphere diffuse illumination, 8° observation angle), SCI illumination observation conditions, the measurement is more accurate;Using a spectral sensor to provide better spectral data than a traditional colorimeter, comparable to a spectrophotometer;You can directly see the prompt of "Pass" or "Fail" on the screen of the instrument, and the quality inspection is worry-free;

NADE small size ColorMeter Pro Digital Portable Colorimeter color tester 20 kinds of parameters, 26 kinds of light sourcesNADE small size ColorMeter Pro Digital Portable Colorimeter color tester 20 kinds of parameters, 26 kinds of light sourcesNADE small size ColorMeter Pro Digital Portable Colorimeter color tester 20 kinds of parameters, 26 kinds of light sources


2. Massive color card database

Connect to the mobile app, create a color database, and enter the color card information of printing, coating, textile, etc.;No need to carry heavy color cards, you can use the instrument to find the closest color among multiple sets of color cards anytime and anywhere;

3. Automatic calibration

The instrument is automatically calibrated at the same time when the instrument is turned on, and the color detection can be carried out by picking up the instrument, and the data is correct;

4. Available as a stand-alone machine, with plenty of measurement and data

1.14-inch IPS display, giving you the color information you want;The instrument can store data, and open the App to synchronize data at any time;

5. Cloud database, easier to view and upload

Provide the official color card database, search at will, and use it as you like;The color information library created by the user can be uploaded to the cloud, multi-device data sharing, color processing is more convenient;Enterprise users can create and manage their own color card information database and color formula in the cloud, and share the information database and color formula with merchants and users through a unique invitation code.


Specification

Model

ColorMeter Pro

Measurement structure

D/8, including specular reflection light (SCI)







measurement standard

Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTM E313-00) , ASTM E313-73, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), blackness (My, dM), stain fastness, color fastness , Tint (ASTM E313-00), color density CMYK (A, T, E, M), metamer index Milm, Munsell, hiding power, strength (dye strength, tinting power)

Lighting source

LED (full band balanced LED light source)

Measuring caliber

8mm

Wavelength interval

10nm

Wavelength range

400-700nm

Measurement stability

ΔE≤0.1 (measure the whiteboard 30 times every 5s)

Difference between stations

ΔE*00<0.4 (Measured average value of 12 color bricks of BCRAⅡseries)

measure time

1.5s

interface

USB

Light source conditions

A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84

Field of view

2°, 10°

screen

IPS full color screen (135*240, 1.14inch)

battery capacity

A single full charge can continuously measure 10,000 times

Language

Simplified Chinese, English

calibration

Automatic calibration

software support

Andriod, IOS, Windows

weight

About 90g

volume

Diameter: 31mm, height: 102mm

Can it be over-metered

Over-metering

storage

APP mass storage

measurement accuracy

0.1

Support app

Yes

Support software

Yes

NADE small size ColorMeter Pro Digital Portable Colorimeter color tester 20 kinds of parameters, 26 kinds of light sources
