1 year
other
Zhejiang, China
NADE
CS-10
Electronic
LED
Yes, very light and small, only 550g
Yes, large screen
Yes
Yes
About 0.5 seconds
paper, food, plastic cement, printing, paint, weaving and dyeing
Product Description

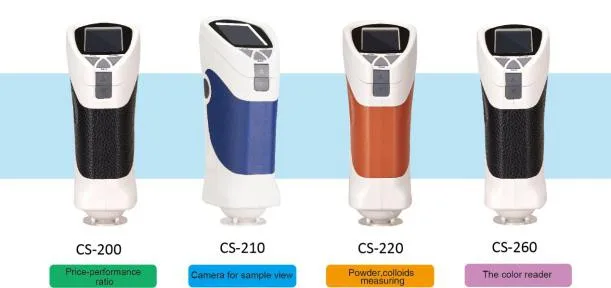

There are several models in CS Series portable colorimeter, pls choose a most suitable model or inquire us for help.
Application:
Colorimeter is widely used in different industries such as food, plastic cement, printing, paper, paint, weaving and dyeing.
It measures the sample color data L*a*b*, L*c*h*, color difference E and Lab according to CIE color space.
Product Characteristic:
Type | CS-10 | CS-200 | CS-210 | CS-220 | CS-260 | |||
Illumination system | 8/d(8°/diffused illumination) | |||||||
SCI(specular component included) | SCE | SCI | ||||||
Display modes | Colorimetric values: L*a*b,L*C*h,E*ab,XYZ,Yxy, relative RGB values; Color difference values: (L*a*b),(L*C*h); | |||||||
-- | Whiteness values:hunter whiteness,ganz whiteness Yellowness value: Hunter WI, Gantz WI,YI | |||||||
Measuring caliber | 8mm and 4mm | |||||||
Measuring conditions | CIE 10° standard observer; CIE D65 light source | |||||||
Measuring range | L*:1-100 | |||||||
Repeatability | Standard deviation within E*ab*,0.08(condition: measure the white calibration board 30 times for average) | |||||||
Storage | 100 sets of standard samples; up to 100 under each standard sample | |||||||
Measuring time | About 0.5 seconds | |||||||
Measuring light source | LED | Halogen lamp | LED | |||||
Languages | Chinese,English | |||||||
Power | 4 AA1.5V Alkaline battery or nickel-metal hydride batterys;Exclusive DC5V adapter | |||||||
Port | USB2.0 printer | |||||||
Weight | 550g | |||||||
Size | 77×86×210mm | |||||||
Others | Lowest Price | High Performance Price Ratio | Camera for sample view | powder, colloids measuring | Color card reading |
