NADE ColorMeter SE High-precision Digital Portable Colorimeter color tester

  • 1 year

  • other

  • Zhejiang, China

  • NADE

  • ColorMeter SE

  • Electronic

  • paper, food, plastic cement, printing, paint, weaving and dyeing

  • D/8, including specular reflection light (SCI)

  • LED (full band balanced LED light source)

  • 8mm

  • 1.5s

  • 0.1

  • yes

  • APP mass storage

  • 10°

  • no

Product Description

Introductions:

NADE ColorMeter SE High-precision Digital Portable Colorimeter color tester

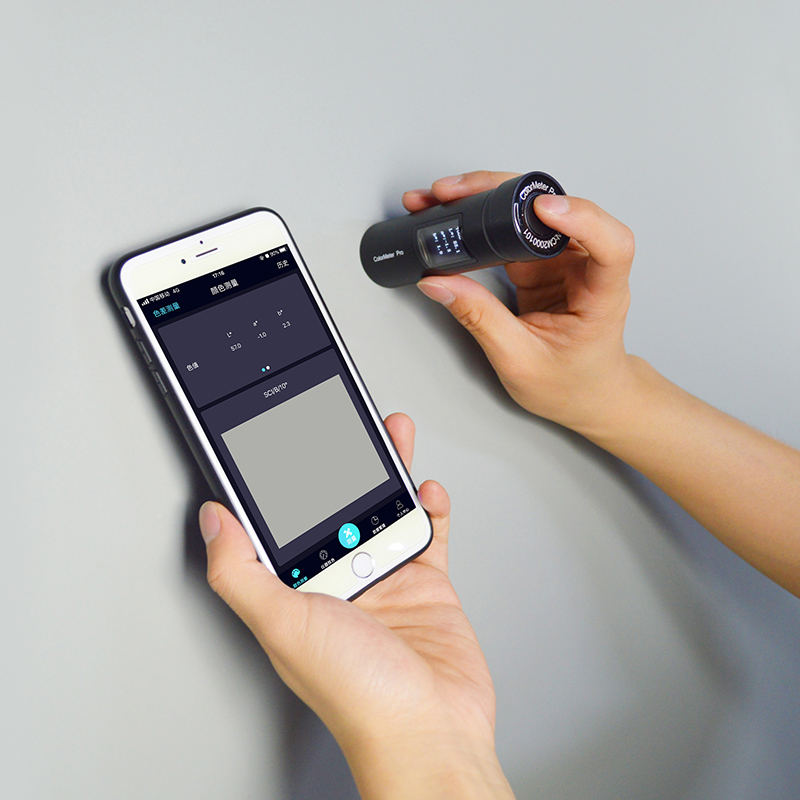

ColorMeter SE is different from traditional colorimeters. It is small in size and can be placed in the user's pocket, making it more convenient to carry. At the same time, it adopts the D/8 structure that ordinary spectrophotometers have, and the measurement is more accurate; It can be wirelessly connected to Android or IOS devices, and the colors can be managed on the phone; with the color number search function, you can find the color you want. Colorimeter is widely used in different industries such as food, plastic cement, printing, paper, paint, weaving and dyeing.

Feature

1. Colorimeter with more accurate color measurement

Adopt the international D/8 (integrating sphere diffuse illumination, 8° observation angle), SCI illumination observation conditions, the measurement is more accurate;Using a spectral sensor to provide better spectral data than a traditional colorimeter, comparable to a spectrophotometer;You can directly see the prompt of "Pass" or "Fail" on the screen of the instrument, and the quality inspection is worry-free;

NADE ColorMeter SE High-precision Digital Portable Colorimeter color tester NADE ColorMeter SE High-precision Digital Portable Colorimeter color tester NADE ColorMeter SE High-precision Digital Portable Colorimeter color tester

2. Massive color card database

Connect to the mobile app, create a color database, and enter the color card information of printing, coating, textile, etc.;No need to carry heavy color cards, you can use the instrument to find the closest color among multiple sets of color cards anytime and anywhere;

3. Automatic calibration

The instrument is automatically calibrated at the same time when the instrument is turned on, and the color detection can be carried out by picking up the instrument, and the data is correct;

4. Available as a stand-alone machine, with plenty of measurement and data

1.14-inch IPS display, giving you the color information you want;The instrument can store data, and open the App to synchronize data at any time;

5. Cloud database, easier to view and upload

Provide the official color card database, search at will, and use it as you like;The color information library created by the user can be uploaded to the cloud, multi-device data sharing, color processing is more convenient;Enterprise users can create and manage their own color card information database and color formula in the cloud, and share the information database and color formula with merchants and users through a unique invitation code.

Specification

Model

ColorMeter SE

Measurement structure

D/8, including specular reflection light (SCI)

measurement standard

CIE-Lab, ΔE*ab, spectral curve

Lighting source

LED (full band balanced LED light source)

Measuring caliber

8mm

Wavelength interval

/

Wavelength range

/

Measurement stability

ΔE≤0.1 (measure the whiteboard 30 times every 5s)

Difference between stations

ΔE*00<0.4 (Measured average value of 12 color bricks of BCRAⅡseries)

measure time

1.5s

interface

USB (for charging only), Bluetooth

Light source conditions

D65

Field of view

10°

screen

IPS full color screen (135*240, 1.14inch)

battery capacity

A single full charge can continuously measure 5000 times

Language

Simplified Chinese, English

calibration

Automatic calibration

software support

Andriod,IOS

weight

About 90g

volume

Diameter: 31mm, height: 102mm

Can it be over-metered

do not guarantee

storage

APP mass storage

measurement accuracy

0.1

Support app

Yes

Support software

no
