1 year
other
Zhejiang, China
NADE
ET-320
Electronic
0.005~320g
0.001 g/cm3
About 5 seconds
Product Description

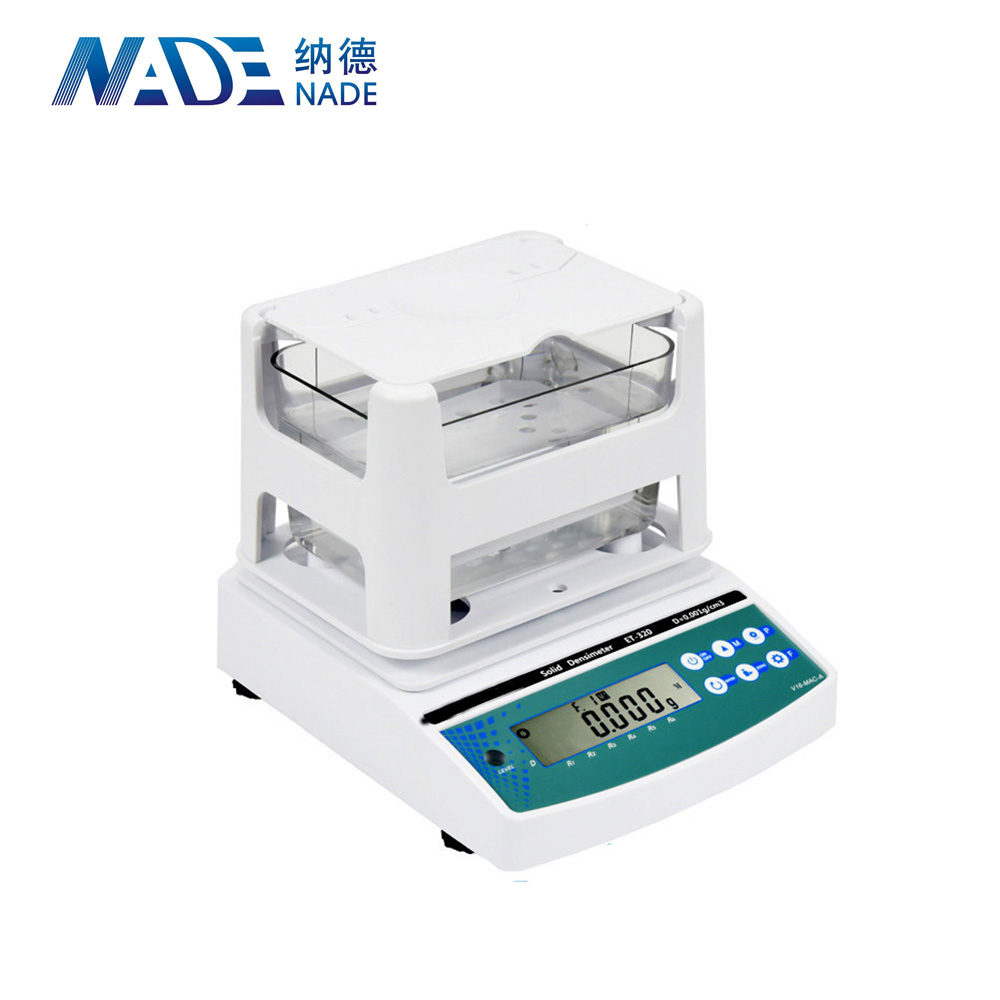

NADE Digital Solid Density meter price for metal,glass,Rubber ET-320
In accordance with ASTM D792,ASTM D297,GB/T1033,GB/T2951,GB/T3850,GB/T533,HG4-1468,JIS K6268,ISO 2781,ISO 1183,GB/T9867,DIN-53516,ISO-4649,GB/T168,GB/T1689.,etc.
These series instrument is the dramatic updating and upgrading products.Compared with other competing products,it has been made much progress on reliability;Eliminated the problem:machine crash,button failure,suspension wire bend,the easy touch between nacelle and container,fragile slot;Improved measurement resolution,simplified operation procedure,and upgraded application function for software.which makes these machine very popular among lots of customers.
(1)Solid samples with any shape can be measured.such as granule,thin film,floating,foaming,powder.,etc.
(2)No cap design,more better easy operation.
(3)Excellent weight precision.
(4)Function of 10 group data storage.and automatical measuring value of average,maximum,and minimum.
(5)Measuring volume,percentage of volume.
(6)Either density is less than one or more than one can be measured.
(7)Function of automatic zero tracking,buzzer warning,and overload warning.
(8)Function of actual water temperature compensation.would adapt to the changing testing environment
(9)Either water or other liquid could be as medium.
(10)Adopt completed injection moulding high capacity transparent PC sink.(length15.3cmXwidth10.7cmXheight9.3cm)
(11)Adopt completed injection moulding windproof dustproof cover;Convenient configuration;Better durability.
(12)Density of liquid can be measured by choosing liquid measurement accessories.
(13) Including RS-232 interface;It's convenient to connect PC and printer;AU-40 could be available to print result.
(14) Gross weight/size:4.5kg/length42.5cm X width17.5cm X height32.5cm
(15)Power supply:Europe standard AC100V-240V;50HZ/60HZ
Rubber,plastic,tire,shoe materials,wire and cable,electrical apparatus,packing materials,sports goods,sports equipment,glass,hard alloy,metal,powder metallurgy,magnetic materials,fireproof materials,mineral and stone,new materials laboratory.,etc.
| Brand | NADE | ||
| Model | ET-320 | ||
| Weight | Range | 0.005~320g | |
| Standard deviation | 0.005g | ||
| Density | resolution | 0.001 g/cm3 | |
| Measuring board | ABS injection molding |
| |
| Range | Either density is more than one or less than one can be meastured | ||
| Measturement type | Any shape of solids | ||
| Result display | Density,volume,percentage,average value,maximum value,and minimum value | ||
| Measturement principle | Archimedes buoyancy method | ||
| Measturement time | About 5 seconds | ||
| The method of opening cap | Rapid unimpeded no lifting cap design | ||
| Sink | PC completed high capacity transparent PC sink(Size:length15.3 cm X width 10.7 cm X height9.3cm) | ||
| Measturement procedure | Place sample on test board, then press ENTER button to memory. Place the sample into water,density value is displayed. | ||
| Parameter setting | Water temperature setting,measuring medium density setting,primary materials and secondary materials setting,air density setting,suspension wire buoyancy deviation setting | ||
| Data statistics | Function of 10 group data storage;Automatically display average value,maximum value,and minimum value according to data storage. | ||
| Liquid measuring | Choose liquid measuring accessories | ||
| Calibration method | Single button calibration,automatically testing | ||
| Standard accessories | host,sink,measuring board,tweezers,thermometer,weight,windproof dustproof shield,one set of measuring granule accessories,one set of measuring floating accessories,power transformer | ||
| Data interface | Standard RS-232 interface | ||
| Optional accessories | ET-40 printer,data connecting wire | ||
| Power | AC110V~220V 50HZ/60HZ (Europe standard) | ||
| Gross weight/Packing size | 4.5kg/Length 42.5 cm X width 17.5 cm X height 32.5cm | ||
Measuring Procedure:
(1)Place sample on testing board to measure weight in air;press ENTER key to memory.
(2)Place the sample into water;density value will be displayed(No need to press ENTER key)
According to your actual needs, we can customize the large-range solid density meters with different ranges.
Customized large range for the measurement of jewelry and jade (maximum measurement: 1200g)
