VISCO TM-895 Digital Viscometer 895g

Viscosity:
A1 50 to 200,000mPa.s / 50 to 200,000cP
A2 100 to 600,000mPa.s / 100 to 600,000cP
A3 500 to 2,000,000mPa.s / 500 to 2,000,000cP
UL 1~2,000mPa.s
Torque:0.0 to 100.0%
Availability:
Inquire

  • VISCO TM-895

  • Atago

  • 220V/110V 50HZ/60HZ

  • 1

  • 1

  • JAPAN

Product Description

VISCO™  was awarded Bronze "IBO 2016 Industrial Design Awards" for "Portable Analytical Instrument Design" by Bioinformatics, Strategic Directions International. VISCO™ was awarded for excellence in its functionality and industrial design.By changing the material used for body, legs and stand to alminium, unit weight is now 895g as described in the model name. Appearance and all features remain unchanged, while achieving 25% weight reduction compared to existing VISCO™.

Applications

Food Products and Industrial Oil

ATAGO VISCO TM-895 Digital Viscometer Light weight type Aluminum body 895g and other option models   ATAGO VISCO TM-895 Digital Viscometer Light weight type Aluminum body 895g and other option models


Feature


1. Easy Operation:The assembly takes 30 seconds. It frees you from the hassle of preparation, cleaning up, and removes hesitation for measurements. Only one button to deal with. From setting up to measurements, you can do it with one hand. The state of the actual assembly is here.

2. Small Sample Volume:The amount of sample required for measurement is only 15 mL or 100 mL. The time to wash the beaker is greatly reduced, too.

3. Disposable Containers:Measureable even with a paper cup.VISCO™ can measure using paper cups or plastic cups. It's disposable and does not require you to wash the beakers. It is safe even in the areas where glassware is restricted.

4. Lab to the Production Site:ATAGO's viscosity meter VISCO™ is very lightweight and compact with a height of 20 cm and a weight of 895 g. Easy to carry from the lab to the production site.

5. Battery Powered:VISCO™ is powered by AC power supplies or batteries. The battery life is about seven hours. Easy measurements, any place and in any situation.

6. Good with Low Viscosity:Low viscosity samples can be measured with VISCO™. ATAGO’s VISCO™ has an adapter for low viscosity samples.

Specification


Model

VISCO™-895

Cat.No.

6820

Measurement item

Viscosity.Temperature.Torque%

Range

Viscosity:
A1 50 to 200,000mPa.s / 50 to 200,000cP
A2 100 to 600,000mPa.s / 100 to 600,000cP
A3 500 to 2,000,000mPa.s / 500 to 2,000,000cP
UL 1~2,000mPa.s
Torque:0.0 to 100.0% (recommended torque: 10.0 to 100.0%)

Speed

0.5 to 250rpm
Number of Speeds: 20

Accuracy

Viscosity: ±1% of Maximum Viscosity (Refer to the "Maximum Measurement Values Guideline Chart," from p.34)
Temperature: ±0.2℃

Power Supply

LR6 / AA alkaline batteries (x4)
AC adapter

Computer Communication

Output: USB - PC

Dimensions & Weight

Main unit:120(W)*120(D)*200.6(H)mm / 0.895kg


Other pictures:

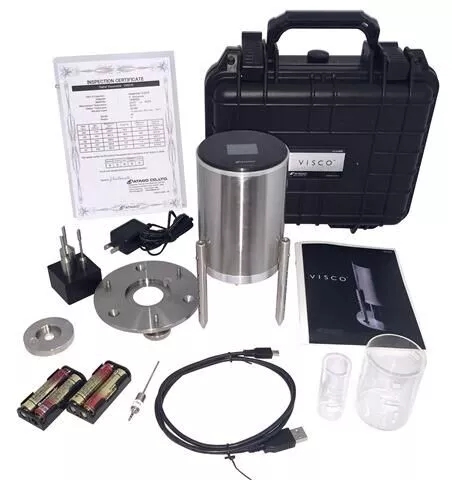

ATAGO VISCO TM-895 Digital Viscometer Light weight type Aluminum body 895g and other option models ATAGO VISCO TM-895 Digital Viscometer Light weight type Aluminum body 895g and other option models

ATAGO VISCO TM-895 Digital Viscometer Light weight type Aluminum body 895g and other option models


Option model:

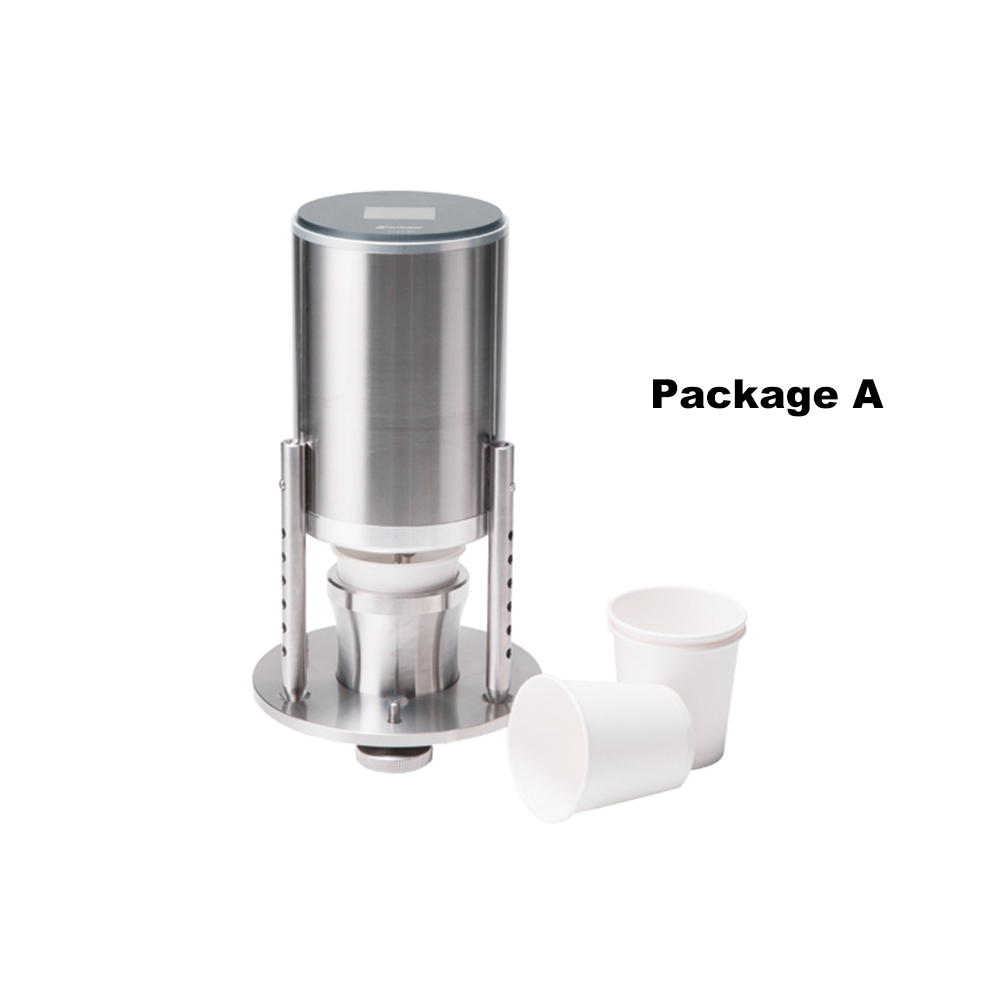

ATAGO VISCO TM-895 Digital Viscometer Light weight type Aluminum body 895g and other option models   Model VISCO™-895 VISCO Package A:

Includes adapter for disposable containers

Specifications:

Model

VISCO™-895 VISCO Package A

Cat.No.

6830

Package Contents

VISCO-895 (main unit) + standard accessories
Cup adapter
 *50 pcs of paper cups and 50 pcs of plastic cups are included.

ATAGO VISCO TM-895 Digital Viscometer Light weight type Aluminum body 895g and other option models   Model VISCO™-895 VISCO Package B:

Includes adapter for low viscosity

Specifications:

Model

VISCO™-895 Package B

Cat.No.

6831

Package Contents

VISCO-895 (main unit) + standard accessories
Ultra Low Adapter(RE-77120)
