Zhejiang, China
NADE
±1.0% of range
No.0~No.4,five kinds of spindles
≤80%
(0.1,0.2,0.3,0.6,1.5, 3,6,12,30,60,120)r/min
5~35℃
Digital viscometer price
Needle printer
RS232 interface
AC 220V±10%, 50 Hz±10 %( 24V adapter)
Product Description

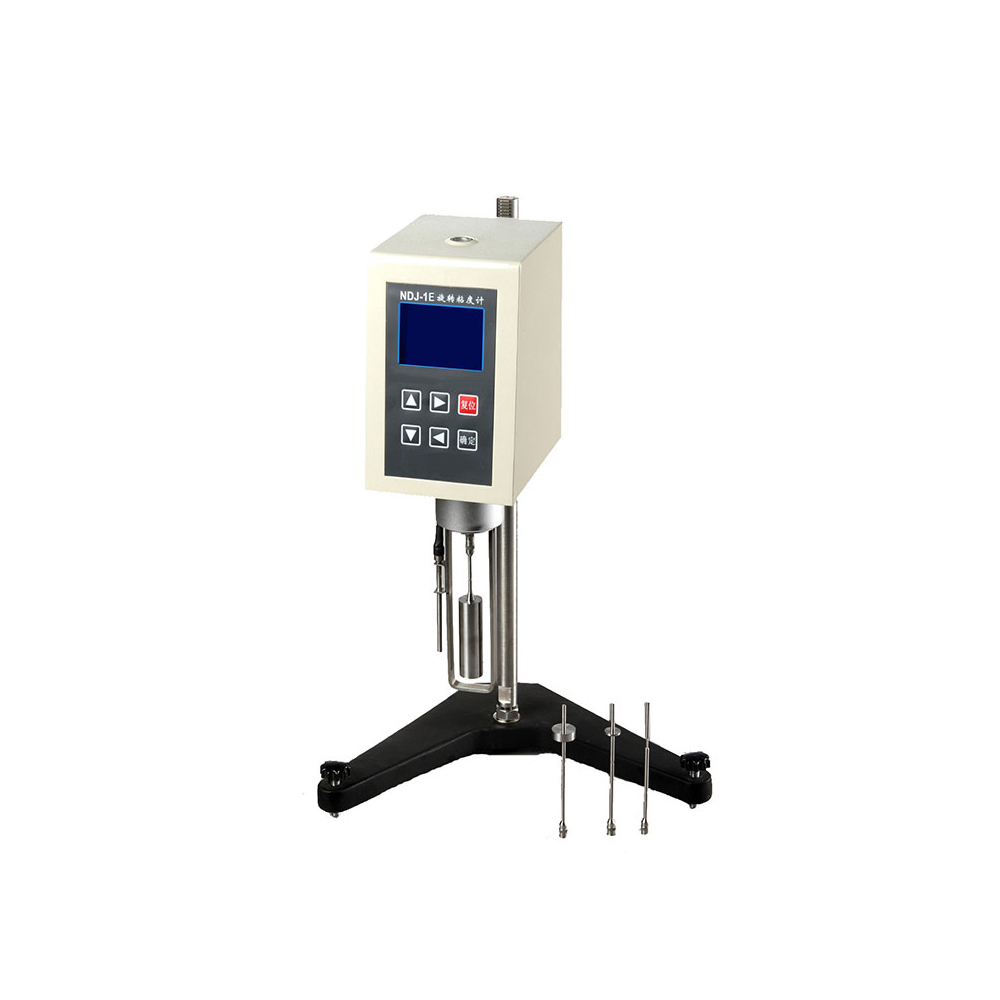

NADE Rotational Multi-speed Digital Viscometer NDJ-1E brookfield viscometer price
The instrument is one of the upgraded products in our company. Adopting the advanced mechanical design technology, the manufacture techniques and the microcomputer technology, it can collect data accurately. Using white background light and ultra bright LED display screen, it can show data clearly. With a special printing interface, it can plot out the measurement data through a printer. It is suitable to determine the absolute viscosity of the Newton liquids and the apparent viscosity of non-Newtonian liquids. It can be widely used to determine the viscosity of various liquid such as greases, oil paints, plastic, pharmaceuticals, dopes, adhesives, and detergents, etc.
1. The instrument adopts advanced mechanical design technology and manufacturing process, using micro-computer technology to control speed, collect data and process data. Accurate data acquisition, high sensitivity, reliable test results, easy to use, and good looking.
2. Display selection of white backlight, high brightness LCD display, can directly display the viscosity of the sample, the number of the rotor, speed and other information, data display clear.
3. The test data can show on the screen real time and also output by printer. In addition, the instrument can also connect with PC via RS232 communication port.
4. Choose different models can have different ranges, for measuring different samples.
1. Measurement range: (1~6000000)mPa•s
2. Spindle: No.0~No.4,five kinds of spindles
3. Spindle speed:(0.1,0.2,0.3,0.6,1.5, 3,6,12,30,60,120)r/min
Also can do stepless speed regulation.
4. Accuracy: ±1% (F.S);
5. Print output: Needle printer
6. Communication with the PC: RS232 interface
7. Power supply: AC 220 V±10 %, 50 Hz±10 %( 24V adapter)
8. Working environment:
(1) Ambient temperature: 5~35℃
(2) Relative humidity: ≤80%
