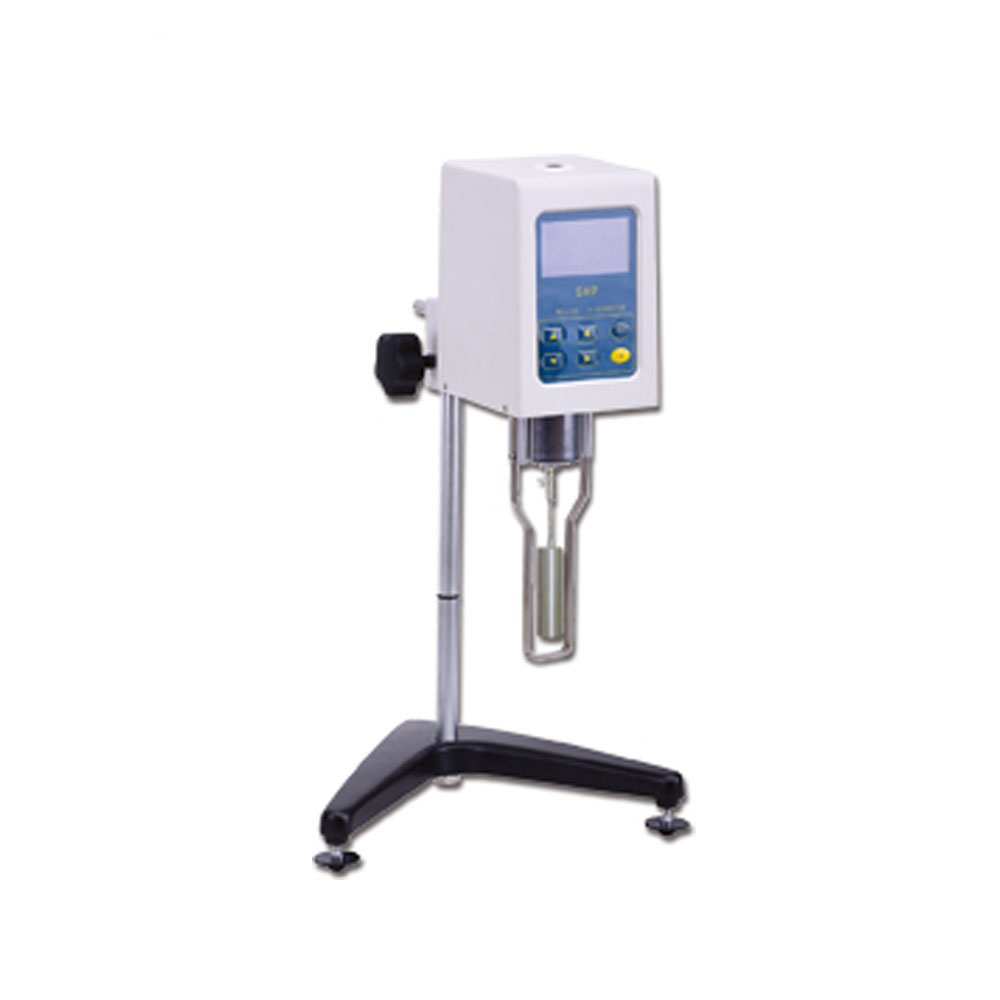

NDJ-5S
NADE
220V 50HZ/60HZ
1
1
CHina
Product Description
Usage:
It is used to measure viscosity resistance and absolute viscosity of fluids, including lipid, oil, food. Many applications such as cosmetic, grease, painting, pharmacy and adhesives.
Features:
1. New digital product based on the single chip micro-processor technologies
2. Used for determining the liquid viscose capacity and the absolute viscosity.
3. Comparing with other similar products, this instrument has the following features:
High measuring accuracy;
Stable in measured display;
Easy operation and read-out;
Excellent in Anti-interference.
Model | NDJ-8S | NDJ-5S | SNB-1 |
Display mode | digital | ||
Rotors speed(r/min) | 0.3/0.6/1.5/3/6/12/30/60 | 6/12/30/60 | 6/12/30/60 |
Speed governing | Eight level | Intelligence | Intelligence |
Rotor | 1,2,3,4 | ||
Measure Range(mPa.s) | 10~2×106 | 10~105 | 10~105 |
Measure error( Newtonian liquid ) | ±2% | ±2% | |
Dimension(mm) | 275×230×475 | ||
Voltage(V) | 110-240 | ||
No zero Rotor: specially used for small sample or low viscosity sample.
Our viscometer can work together with our Thermostatic Bath DC series
