(1- 1*106 )mPa.s
7.5--750r/min stepless speed regulating
±3 %( F.S)
Unit II 1# 10# 100#
Ambient temperature: 5~35℃
AC 220 V±10%, 50 Hz

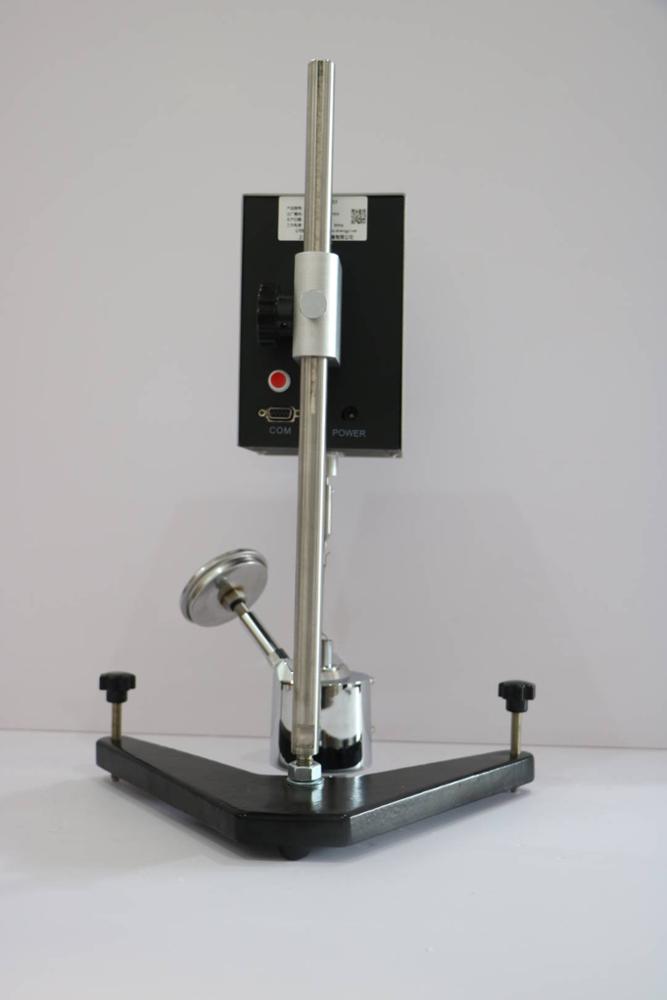

This viscometer is the upgraded instrument of NDJ-79 rotational viscometer. It can be used to determine absolute viscosity of Newtonian liquids and apparent viscosity of Non-Newtonian liquids. It can be widely used to determine the viscosity of liquids such as greases, oil paints, plastics, pharmaceutics, coatings, adhesives, detergents and other fluids. The viscometer has the advantages of small volume, light weight, convenient and simple maintenance, durable and can rapidly and reliably measuring liquid viscosity and other characteristics
1. The instrument adopts advanced mechanical design technology and manufacturing process, using micro-computer technology to control speed, collect data and process data. Accurate data acquisition, high sensitivity, reliable test results, easy to use, and good looking.
2. Display selection of white backlight, high brightness LCD display, can directly display the viscosity of the sample, the number of the rotor, speed and other information, data display clear.
3. The test data can show on the screen real time and also output by printer. In addition, the instrument can also connect with PC via RS232 communication port.
1. Measurement range: 1mPa•s~1×106mPa•s
2. Spindle: Unit II 1# 10# 100#
3. Spindle speed: 7.5--750r/min stepless speed regulating
4. Measuring accuracy: ±2 %( F•S)
5. Temperature control range: 0℃~100℃
6. Power supply: AC 220V±10%,50Hz
7. Ambient temperature: 5℃~35℃
8. Relative humidity: ≤80%
We have other viscometers for your reference, rotary viscosimeter, Brookfield Viscometer, Engler viscosimeter,Storm Krebs viscometer and so on. For Newtonian liquid and non-Newtonian liquid, high viscosity and low viscosity whether in large capacity or small capacity.
