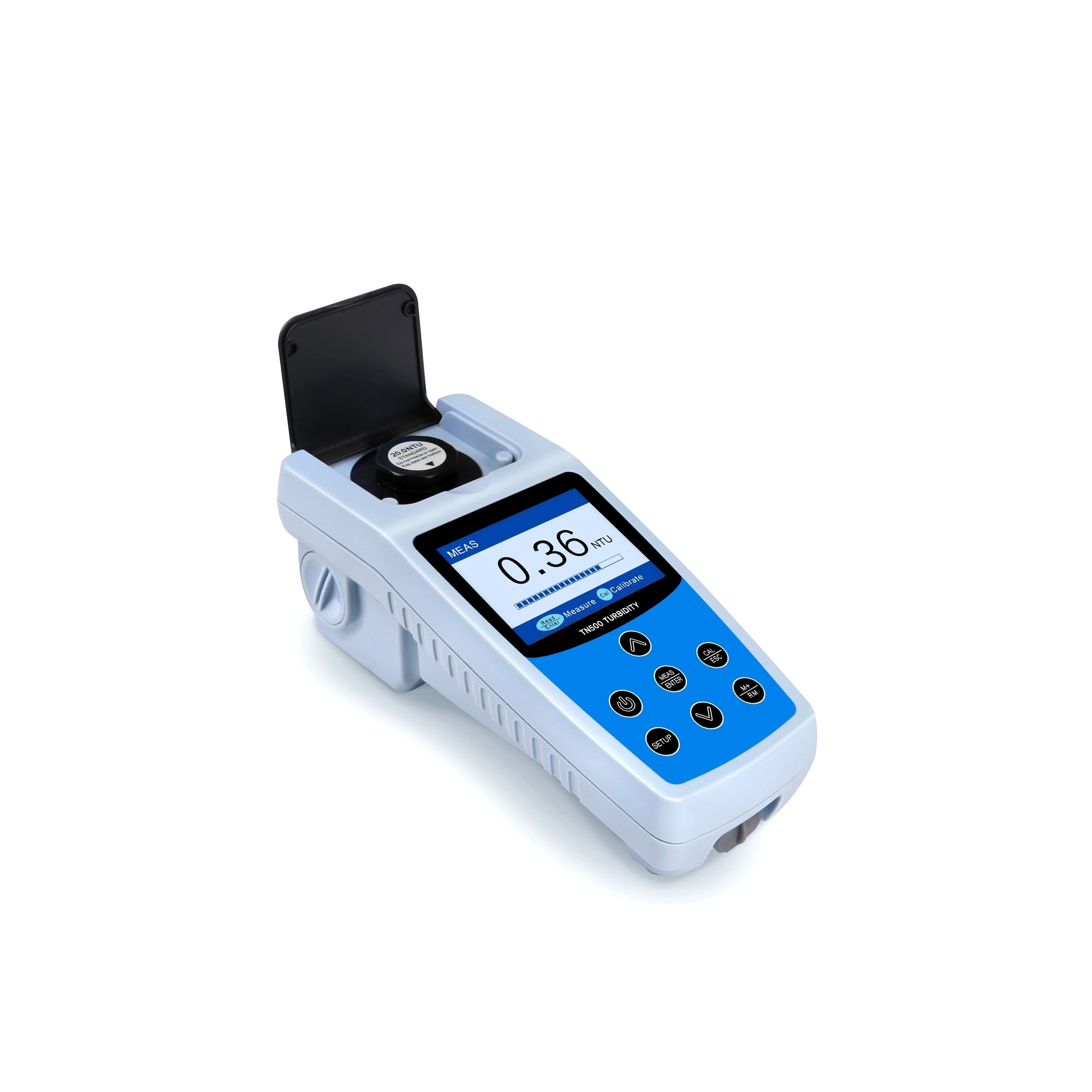

TN500 Portable Turbidity Meter

Light Source: Tungsten filament lamp
Accuracy: ≤ ±2% of reading+ stray light
Resolution: 0.01/0.1/1 NTU (FNU)
Data Storage: 200 groups


  • TN500

  • NADE

  • 4*AA Alkaline Batteries

  • 1

  • 1 year

  • China

Product Description

NADE TN500 0.01~1000 NTU Portable waterproof Turbidity Meter with Data Storage for tap water

Turbidity Meter uses tungsten filament lamp as the light source and 90°scattering method for the determination of turbidity in drinking, ground, surface, and saline waters, domestic and industrial wastes. The instrument is designed for water quality professionals, offering long-term reliability in high-accuracy turbidity measurement with an intuitive operation system, simple calibration, and GLP data management.


1. TruReadTM measurement mode automatically takes multiple consecutive readings, and calculate their average, minimum and maximum value, as well as displaying each set of data in a brief test report. TruRead is a much better way to determine the true turbidity of your samples, rather than relying on just one reading. It's especially suitable for sample solutions with rapid settling and continuous measurement changes.

2. The kit comes with AMCO high-molecular polymer turbidity standard solutions (0, 20, 100, 400, 800 NTU), which are EPA approved primary standards that are safe, non-toxic and disposable, and have a guaranteed one-year shelf life. It is NIST traceable to particle size/distribution and optical density, and its inherent stability means it does not settle from suspension. Store the standards in room temperature. They must not be frozen.

3. Zero turbidity error reminder: the instrument has zero-point calibration and zero-point error reminder to ensure high accuracy for low-turbidity solutions.

4. Large TFT color screen with blue background for measurement mode, green background for calibration mode. An advanced yet intuitive user interface with plain language and graphic screen prompts, supporting English, Spanish, and Chinese.

5. 3.7V rechargeable lithium battery can supply power for over 20 hours of continuous measurement. The battery life is 5 times longer compared with other products in the market.

6. The instrument’s structure meets IP67 water-resistant grade and is suitable for use in harsh environments.

7. Other intelligent functions such as automatic calibration, operation navigation, 200 sets of data storage with USB data output to PC (Windows-based), real-time clock display, calibration date check, automatic power off, and low battery reminder.

8. Everything comes in a rugged carrying case, including AMCO calibration solutions (0, 20, 100, 400, 800 NTU), 6 pieces of sample vials, USB charger, USB cable, silicone oil, microfiber wipe, PC-Link software flash drive, and user manual.






Pls inform us required language before placing order

Measurement Method

90° scattering measurement


 U.S EPA180.1 compliant

Light Source

Tungsten filament lamp

Measuring Range

0 to 1000 NTU (FNU), automatic range switch, 0.01 to 19.99 NTU(FNU)

20.0 to 99.9 NTU(FNU), 100 to 1000 NTU(FNU)


≤ ±2% of reading+ stray light


≤ ± 1% of reading or 0.02 NTU(FNU) (the greater of the two)


0.01/0.1/1 NTU (FNU)

Calibration points

0, 20, 100, 400 and 800NTU (FNU)

Data Storage

200 groups

Data Output


Parameter setting




Automatic storage


Number of sample vials included



TFT color screen

Sample Vial

Φ25×60 mmhigh borosilicate glass with lid

Sample Vial Volume

18 ml

Power supply

4*AA Alkaline Batteries

Working Condition

Temperature: 0 to 50°C32°F to 122°F);Relative humidity

0 to 90% at 30°C, 0 to 80%at 40°C, 0 to 70% at 50°C, no condensation

Instrument sealing grade


Dimension and Weight

Meter: (90×203×80) mm/385g

Test Kit: (310×295×110) mm/1.5kg




AA Alkaline Batteries*4

Standard Solutions(18ml):0.02NTU*1, 20.0NTU*1, 100NTU*1, 800NTU*1

Screw Driver*1(to remove battery cover)

Sample Vial*3

Carrying Case

Silicone Oil(10ml)*1

Instruction Manual

Soft Cloth*1

Detail images

NADE TN500 0.01~1000 NTU Portable waterproof Turbidity Meter with Data Storage for tap water

  NADE TN500 0.01~1000 NTU Portable waterproof Turbidity Meter with Data Storage for tap waterNADE TN500 0.01~1000 NTU Portable waterproof Turbidity Meter with Data Storage for tap water

               Complete Test Kit                               Calibration Solution
