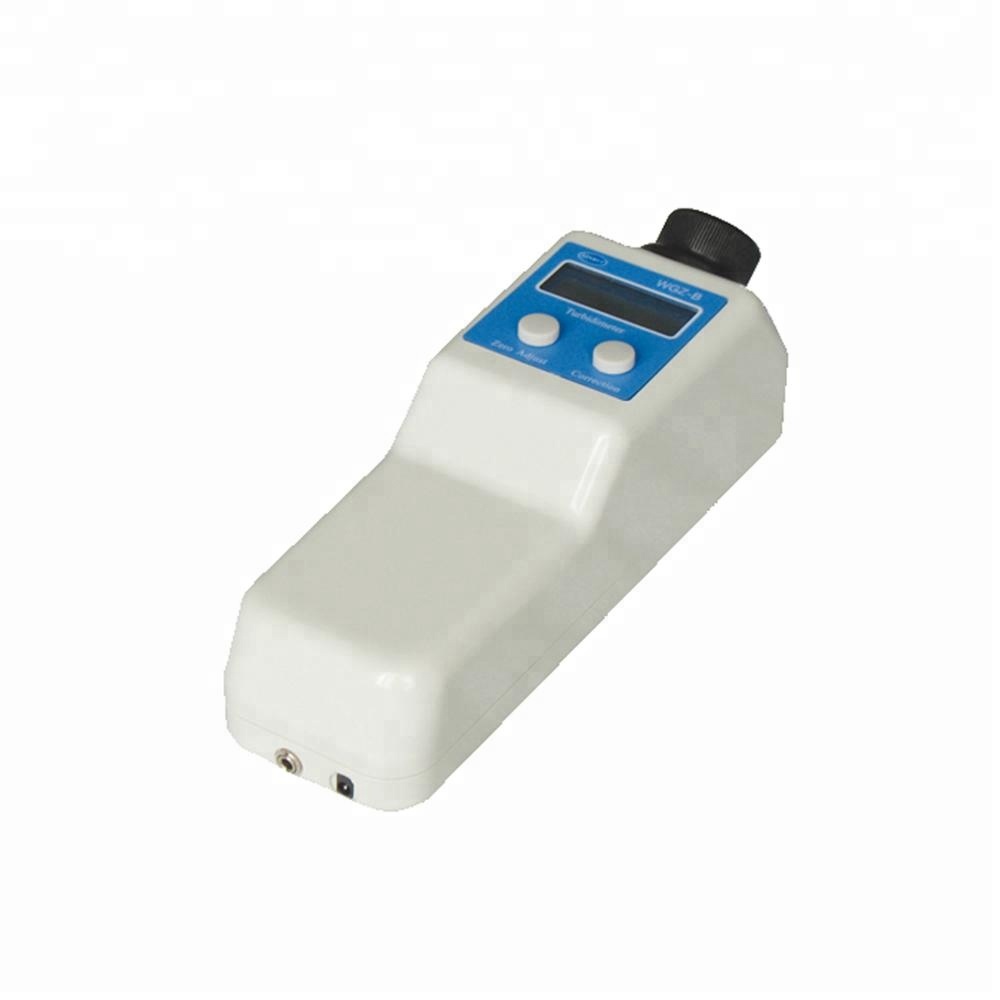

WGZ-200B Portable Turbidimeter

Minimum Principle: 90°scattered light
Minimum readout: 0.01 NTU
Measuring range: 0 to 20 NTU or 0 to 200 NTU
Basic error F.S: 8(2.5%F.S)
Availability:
  • WGZ-200B

  • NADE

  • AC 220V/50Hz

  • 1

  • 1 year

  • China

Product Description

Portable type, cheap, economical, stable
WGZ Series has different models, for more information pls contact us.


WGZ Series scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters.
It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.

Features

  • AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

  • Configured with auto power-off function and low power dissipation circuit, able to effectively prolong service life of battery;

  • Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

  • Adopting low-drift and high-accuracy integrated circuit, efficient and timeproof light source, effectively ensuring long reliable performance

  • Unique locative structure and high-accuracy light path system, effectively ensuring exactness and repeatability;

  • Low voltage indication, cuing users to change battery, to ensure exact and effective measurement;

  • Configured with output port of measured values, possible to connect with recording meter

  • Light source: LED.


Specification

 Model

WGZ-20B

WGZ-1B

WGZ-200B

Minimum Principle

90° scattered light

90° scattered light

Minimum readout NTU

0.01

0.1

0.01

Measuring range NTU

0-20

0-200

0-20, 0-200

Basic error F.S

8%(2.5%F.S)

8%(2.5%F.S)

8%(2.5%F.S)

Repeatability

1%

 1%

 1%

Zero draft NTU

1%F.S

1%F.S

1%F.S

Power supply

DC 1.5V, 5 AA alkaline dry cells


AC 220V/50Hz DC7.5V 0.2A power supply adapter

Meter dimension

235*75*65 mm
