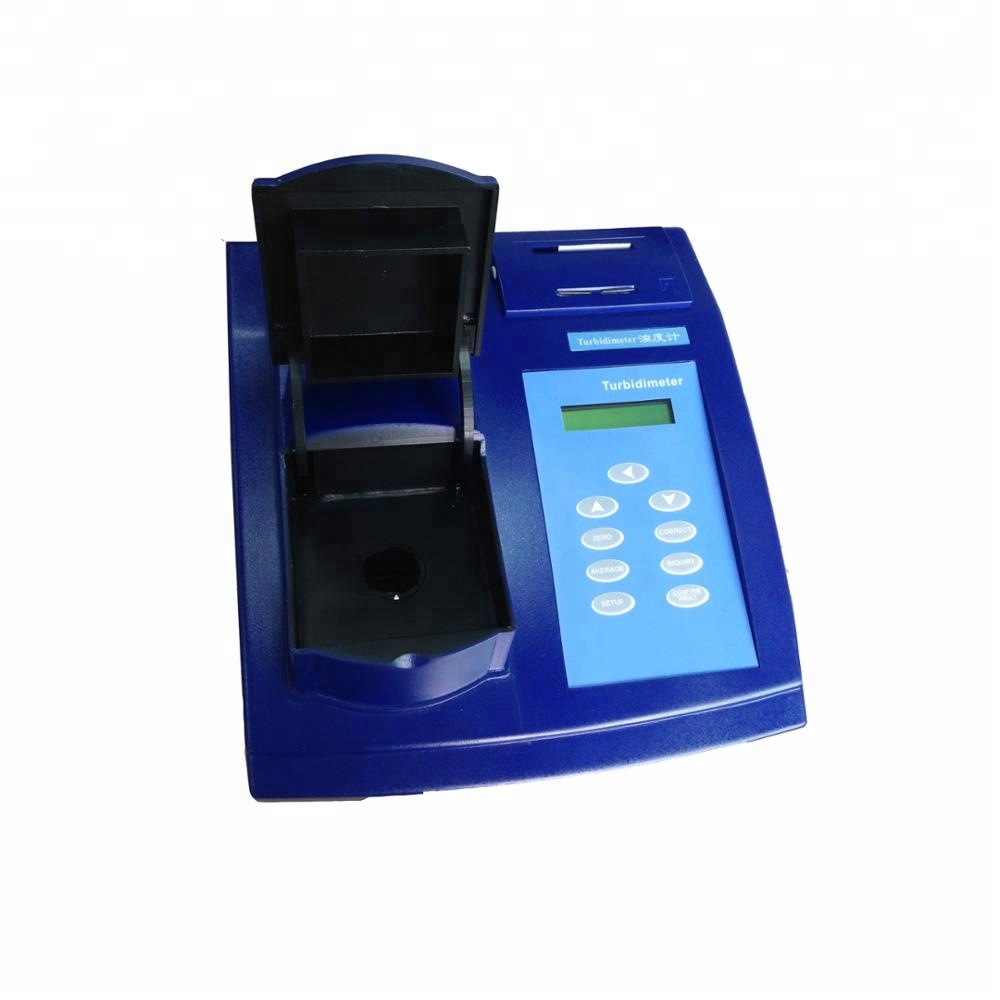

WGZ-2000/WGZ-2000P Bench-type High Precise Research Grade Turbidimeter

Minimum Principle: 90°scattered light
Minimum readout: 0.001 NTU
Measuring range: 0-10/0-100/0-1000/0-2000
Basic error F.S: ±6%±2%F.S/±3%F.S/±5%F.S

Availability:
  • WGZ-2000/WGZ-2000P

  • NADE

  • 1

  • 1 year

  • China

Product Description

WGZ Series scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters.

It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.



Features

1. Microcomputer, touch keyboard, backlight LCD, standard parallel RS232 data communication interface

2. Custom-made high strength long service life lamp-house, provided with data storage and inquiry function, can meet GLP requirements

3. Data nonlinear processing and data smoothing function, quick and automatic multi-points calibration, self-diagnostic information prompt, selectable span ¨C automatic or manual switch

4. Set average measuring mode with shortcut to obtain correct data within quickest time, applicable particularly to measure extreme-low turbidity and can be used to measure unstable water sample

5. Precise light route system, reliable positioning structure, effective tone compensation, direct turbidity reading


Specification

Model

WGZ-2000

WGZ-2000P

WGZ-2000A

WGZ-2000AP

WGZ-4000

WGZ-4000P

WGZ-4000

WGZ-A4000AP

Minimum Principle

90º scattered light

Minimum readout NTU

0.001

0.01

0.001

0.01

Measuring range NTU

0-10/0-100

0-1000/0-2000

0-10/0-100

0-1000/0-2000

0-10/0-100

0-1000/0-4000

0-10/0-100

0-1000/0-4000

Basic error F.S

±6%±2%F.S/±3%F.S/±5%F.S

Repeatability

<=0.5%

Zero draft NTU

±0.5%F.S

Meter dimension

278*310*140mm

*Models with P have function of printer.
