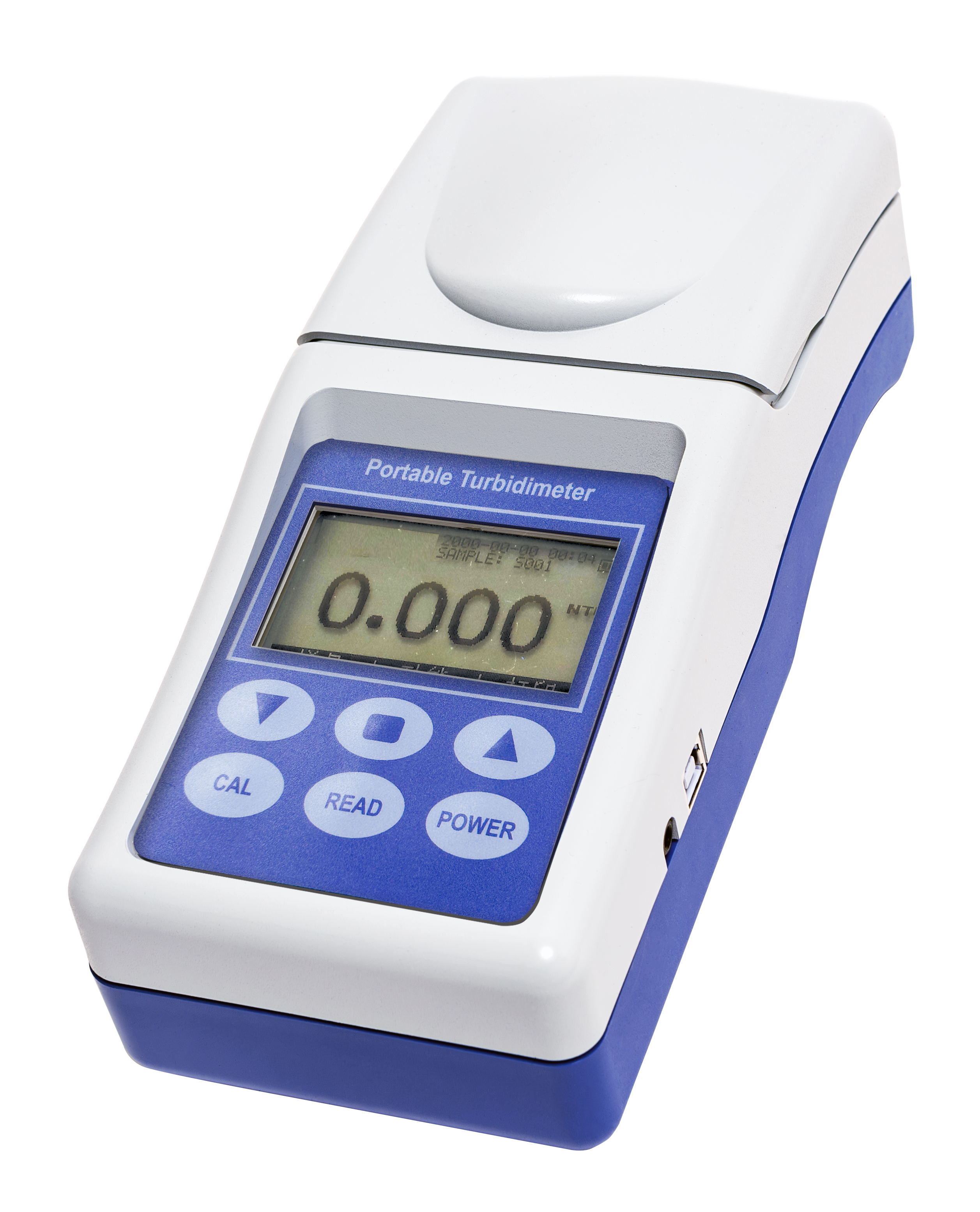

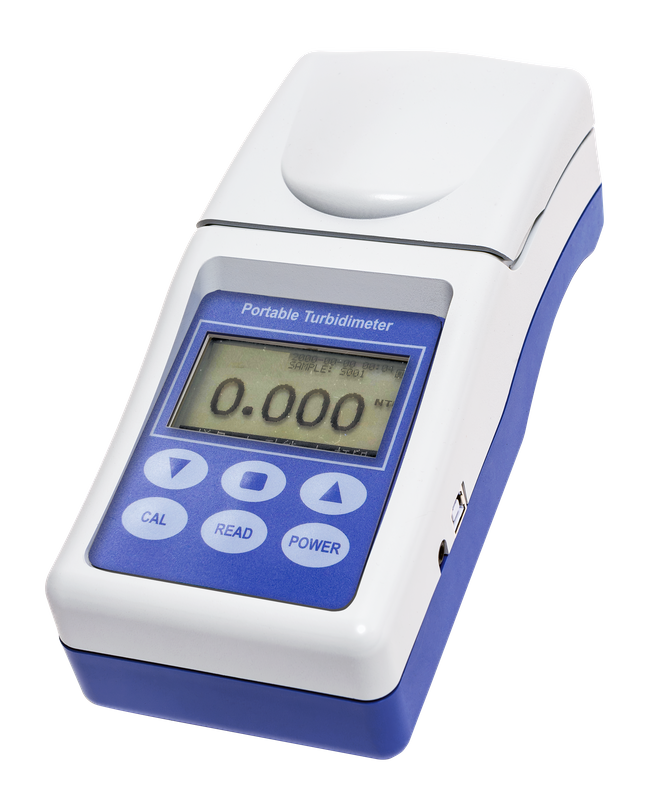

WGZ-2000B / WGZ-1000B / WGZ-500B / WGZ-200B / WGZ-100B / WGZ-50B / WGZ-20B
NADE
1
CHINA
Product Description
The Ratio Turbidimeter is an instrument that quantifies the turbidity of a liquid by measuring the scattering or transmission characteristics of light by suspended particles in the liquid. Its core application lies in evaluating the clarity of liquids and the content of impurities.
• LCD display, and the backlight can be set.
• Novel appearance, convenient for user in field testing.
• Using four AA batteries, external power supply, and automatic power-off to save energy.
• Infrared light source, can measure the turbidity of colored solutions.
• Automatic range switchover, support zero-point and four-point calibration, in line with GLP Regulation and ISO7027 standard.
Applications
• Food Industry: In beer fermentation, the turbidity meter is used to monitor the changes in wort turbidity, which helps to determine the end point of fermentation and the activity of yeast.
• Biomedical Industry: It is employed to monitor the turbidity changes in cell culture or fermentation liquids, providing real-time reflection of microbial growth density.
• Agriculture: The turbidity meter is used to monitor the turbidity of aquaculture water, thereby optimizing the breeding environment.
Specifications
Parameters/Model | WGZ-2000B | WGZ-1000B | WGZ-500B | WGZ-200B | WGZ-100B | WGZ-50B | WGZ-20B |
Light source | LED | ||||||
Wavelength | 860nm | ||||||
Measuring mode | NTU, FTU, EBC, ASBC | ||||||
Measuring range NTU | 0.000-20.00 20.01-200.0 200.1-2000 | 0.000-20.00 20.01-200.0 200. 1-1000 | 0.000-20.00 20.01-200.0 200.1-500.0 | 0.000-20.00 20.01-200.0 | 0.000-20.00 20.01-100.0 | 0.000-20.00 20.01-50.0 | 0.000-20.00 |
Minimum reading | 0.001 | ||||||
Allowable error of indication | ≤±6% | ||||||
Zero Drift | ≤±0.5%FS | ||||||
Stability of indication | ≤±0.5%FS | ||||||
Repeatability | ≤0.5% | ||||||
Sample bottle | Φ 25 mm×65 mm | ||||||
Sample volume | 20--30 ml | ||||||
Calibration points | 7 | 6 | 5 | 4 | 4 | 3 | 2 |
Display | LCD | ||||||
Interface | USB | ||||||
Data storage | 2000 sets | ||||||
Power supply | 4 x AA batteries; 5V USB power | ||||||
Overall dimensions | 325mm×225mm ×170mm | ||||||
Weight (Gross) | 3kg | ||||||
