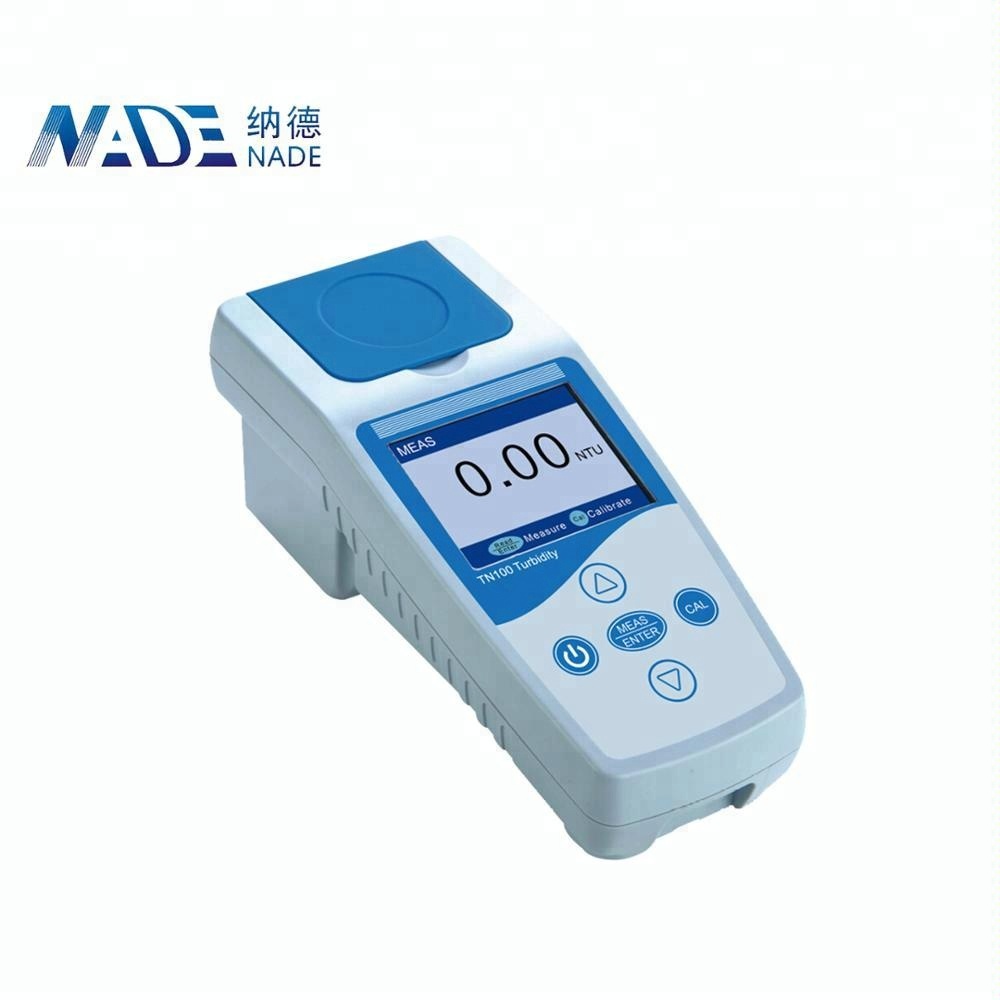

TN100 Portable Turbidity Meter

Resolution: 0.01/0.1/1NTU
Indication Error: ≤±2% reading± stray light
Sample Volume: 18ml
Detector: Silicon photovoltaic
Availability:
  • TN100
  • NADE
  • 1
  • 1 year
  • China

Product description

Features:

1. Portable meter facilitates measuring progress;
2. Different color screens show data and meter's condition vividly;
3. Text and graphic operate directly;
4. Non-toxic Reagecon high-molecular polymer is more easy to use.
5. Flip cover of sample well is more convinient.


Functions:
1. TFT color screen shows blue backgraound in measuring mode, green  background in calibration mode, progress bar displays measuring progress;
2. Turbidity Meter provides 4 kinds of Reagecon high-molecular polymer turbidity standard solutions.


Application:

The turbidity meter is mainly applied in the production of beverage, drinking water and bear to measure the turbidity of water. It also can be used to test water in swimming pool and aquarium, chemical and electroplated field.


Specification

Measuring Method

ISO 7027 compliant nephelometric Method(90°)

Measuring Range

0-1000NTU, Automatic range selection

      0.01-19.99NTU

      20.0-99.9NTU

      100-1000NTU

Resolution

0.01/0.1/1NTU

Indication Error

≤±2% reading± stray light

Repeatability

≤±1% of reading or 0.02NTU, subject to chichever is greater

Calibration Standards

0.02NTU, 20.0NTU, 100NTU, 800NTU(Polymer)

Light source

Infrared-emitting diode(850nm wavelength)

Detector

Silicon photovoltaic

Display

TFT color screen

Sample Vials

Φ25*60mm, high borosilicate glass with screw cap

Sample Volume

18ml

Operating Temp.Range

0 to 50℃32℉ to 122℉)

Power Supply

4*"AA" Alkaline Batteries

IP Rating

8.3 × 7.7 × 14.0 in/211 × 180 × 355 mm

Net Weight

IP67

Dimension/Weight

Meter: (90*203*80)mm/385g

Carrying case:(310*295*110)mm/1.5kg

Quality and Safety Certificate

ISO9001:2008&CE


Comparison between Reagecon high-molecular polymer and Formazin


Reagecon high-molecular polymer

Formazin

Toxicity

Non-toxic

Highly toxic

Accuracy

±1%(all solutions)

±10%(400NTU), 30%(diluted solutions)

Shelf Life

One year

Several hours to several days

Traceability

Traceable to NIST and so on

Non-traceable

Usability

Can be used anytime, very convenient

Preparation needed before every use


Accessories:

TN100Meter

AA Alkaline Batteries*4 (please prepared at local)

Standard Solutions(18ml):0.02NTU*1, 20.0NTU*1, 100NTU*1, 800NTU*1

Screw Driver*1(to remove battery cover)

Sample Vial*3

Carrying Case

Silicone Oil(10ml)*1

Instruction Manual

Soft Cloth*1

4 Standard Solutions
