Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min

  • 1 year

  • Nade

  • YZII 15

  • Zhejiang, China

  • Water Distribution, laboratory, industry

  • 0.07-0.27Mpa, Low Pressure

  • Diaphragm Pump

  • 0.8-9.6mm

  • 220v

  • Other

  • Air Pump

  • Electric

  • Standard

  • Vacuum Pump

  • Peristaltic pump Head

  • 0.06 - 2280

  • 13# 14# 16# 25# 17# 18# 19#

  • Stainless Steel

  • 3

Product Description

Nade Lab Equipment Peristaltic pump Head YZII15 0.06 - 2280ml/min
Product Description

Instruction:

Patent No.:200620026529.1. Change tubing easily and rapidly; Compact size. The tubing retention set is a linkage, It is convenient to load the tubing; Accept several tubing sizes for a wide flow range; The rollers adopt high quality materials and has good wearing property; The housing material is PESU. It has perfect rigidity and structure property. It is stable and autoclavable (200°C)

Parameters:

Pump head

Flow rates(mL/min)

Tubing

Housing

Rollers

Number of Rollers

Weight(kg)

Materials

Materials

YZⅡ25

1.7 - 3000

15# 24# 35# 36#

PESU

SS

3

0.35

YZⅡ15

0.06 - 2280

13# 14# 19# 16# 25# 17# 18#

PESU

SS

Specification

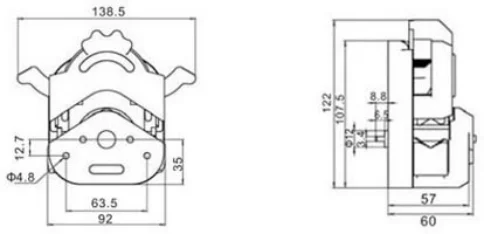

Dimensional Drawing:

Packaging & Shipping

Our Packaging Details:

Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min

Our Shipping

Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min

Company Information

Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min

Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min

Hot Selling Products

Hot Selling Products..........

Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min
Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min Nade Peristaltic pump head YZII15 for laboratory equipment 0.06 - 2280ml/min

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
