Nade Peristaltic pump Head FG15-13&FG25-13 0-2150 ml/min

  • /
  • Nade
  • FG15-13 & FG25-13
  • Zhejiang, China
  • laboratory, MARITIME
  • Electric
  • 0.07-0.27Mpa, Low Pressure
  • Diaphragm Pump
  • 0.8-6.4mm
  • /
  • Other
  • Air Pump
  • Electric
  • Standard
  • Vacuum Pump
  • Peristaltic pump Head
  • 2150
  • ≤600
  • Other

Product Description

Nade Lab Equipment Peristaltic pump Head FG15-13,FG25-13

Instruction:

FG series pump head has single channel. The pump head is mounted on the drive unit easily by using special mounting plate. With the special flip cover design, the tubing can be loaded into or removed from the pump head easily. And the spring loaded tubing clamps can clamp various tubing automatically and tightly. FG15-13 series pump head accepts tubing with wall thickness of 1.6mm, and the range of flow rate is 0-2400ml/min. FG25-13 series pump head accepts tubing with wall thickness of 2.4mm, and the range of flow rate is 0-2200ml/min.

Feature

FG15-13,FG25-13. Tubing loading method:

Specification

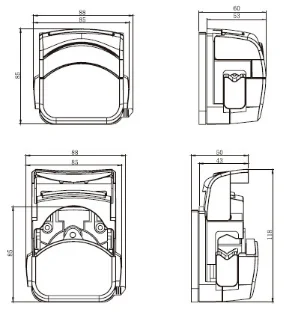

Dimensional Drawing:

Parameters:

Model

Shaft

Roller
Qty.

Roller
Material

Housing
Material

Speed
(rpm)

Tubing

Max.Flow Rate
(ml/min)

Weight

(kg)

FG15-13-A

Short

3

PA6

IXEF

≤600

13# 14# 19# 16#
25# 17# 18#

2150

0.28

FG15-13-B

Long

FG25-13-A

Short

FG25-13-B

Long

15# 24#

1930

Packaging & Shipping

Our Packaging Details:

Nade Peristaltic pump Head FG15-13&FG25-13 0-2150 ml/min

Our Shipping

Nade Peristaltic pump Head FG15-13&FG25-13 0-2150 ml/min

Company Information

Nade Peristaltic pump Head FG15-13&FG25-13 0-2150 ml/min

Nade Peristaltic pump Head FG15-13&FG25-13 0-2150 ml/min

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Peristaltic pump Head FG15-13&FG25-13 0-2150 ml/min

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
