Nade
KZ35
Zhejiang, China
/, Low Pressure
Diaphragm Pump
9.6/12.7mm
Air Pump
MARITIME
Electric
Standard
Vacuum Pump
Peristaltic pump Head
73# 82#
11000
≤600
Product Description
Instruction:
KZ35 pump head is specially designed and produced for pharmaceutical and food industry according to GMP criteria. All the key parts are made by 304 stainless steel material and tubing holders adopt PVDF material. The surface of KZ35 is polished to make it easier to be cleaned. Sophisticated structure ensure its stable performace and easy to change tubing.

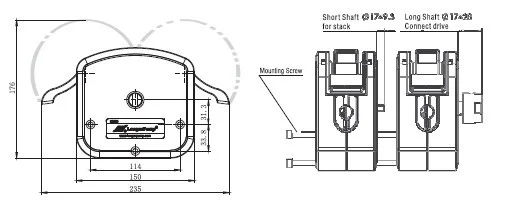

Installation Drawing:
Tubing Fitting:
Tubing Clamping Mode:
Parameters:
| Type | Tubing | Max. Flow Rate(mL/min) | Speed(rpm) | Housing Material | Tubing Holder Material | Rollers Quantity | Weight |
| KZ35 | 73# 82# | 11000 | ≤600 | 304 Stainless | PVDF | 3 | 3.7 |
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
