1 year
Nade
BZ Series
Zhejiang, China
Other, MARITIME
/, Low Pressure
Diaphragm Pump
4.8-11.2mm
/
Other
Electric
Peristaltic pump Head
BZ 25
1600
≤600
PC
Stainless Steel
3
Product Description
Instruction:

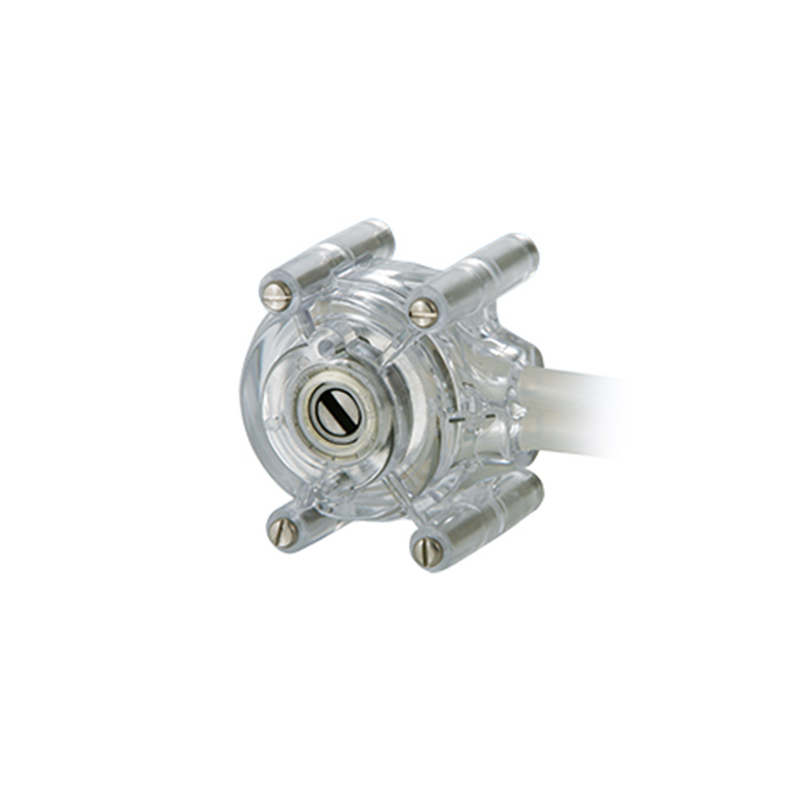

The peristaltic pump head BZ series is an original design and ideal for OEM. The pump has high reliability and can be stacked for multi-channels application. Each pump head has fixed occlusion, and accommodates a single size of tubing. When loading the tubing, the pump head needs to be removed from the drive.

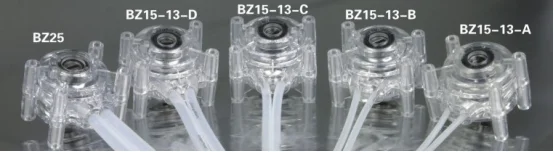

| Type | Rollers Material | Rollers Quantity | Housing Material | Speed(rpm) | Tubing | Max. Flow Rate | Weight (kg) |
| BZ15-13-A |
SS
| 3 | PC | ≤600 | 14# | 150 | 0.31 |
| BZ15-13-B | 16# | 460 | |||||
| BZ15-13-C | 25# | 960 | |||||
| BZ15-13-D | 17# | 1600 | |||||
| BZ25 | 24# | 1600 |
- Stable operation and stackable
- Compact size
- Dismounting the pump head from the drive is need when loading the tubing
- Standard pump head, fixed occlusion
- Ideal for OEM
Suitable Tubing for BZ series Pump Head
| Type | BZ25 | BZ15-13-D | BZ15-13-C | BZ15-13-B | BZ15-13-A |
| Tubing | 24# | 17# | 25# | 16# | 14# |
| Tubing OD | 11.2mm | 9.6mm | 8mm | 6.4mm | 4.8mm |
| Tubing ID | 6.4mm | 6.4mm | 4.8mm | 3.2mm | 1.6mm |
Other parameters
BZ Series
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Hot Selling Products..........
 |  |  |
 |  |  |
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
