Nade
DG15 Series
Zhejiang, China
laboratory, MARITIME
Electric
0.1-0.27Mpa, Low Pressure
Diaphragm Pump
3.2-6.4mm
/
Other
Air Pump
Electric
Standard
Vacuum Pump
Peristaltic pump Head
≤600
Other
Product Description
Instruction:

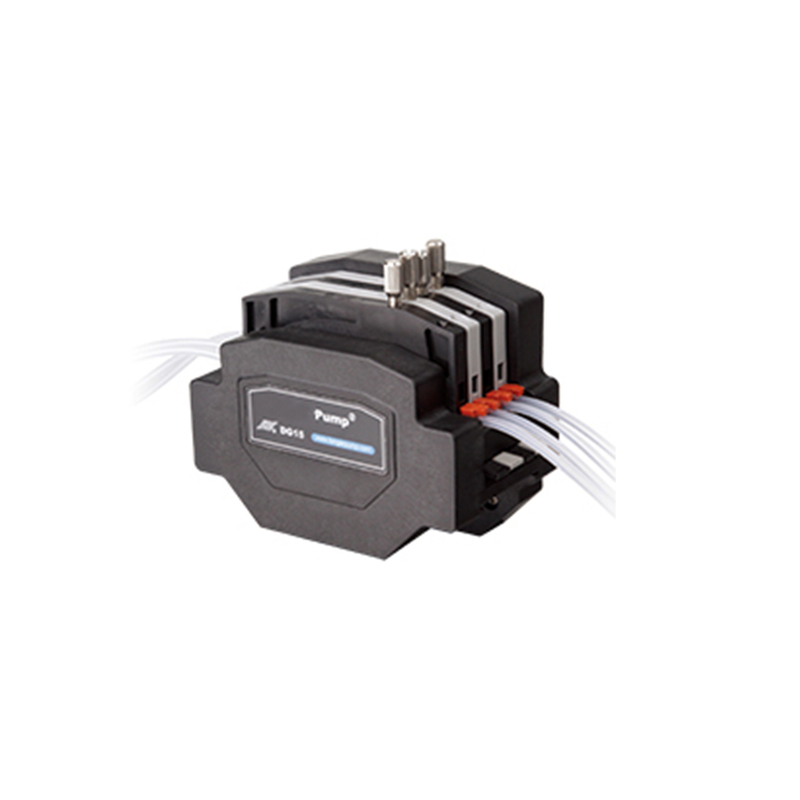

DG15 series pump heads are designed for medium and small flow rates, multi-channel fluids transfer. Easy to change and fix the tubing. Occlusion can be adjusted slightly. The rollers adopt high quality materials. The pump head consists of base, rotor assembly and easy-to-load cartridges.
Pump Head Type:

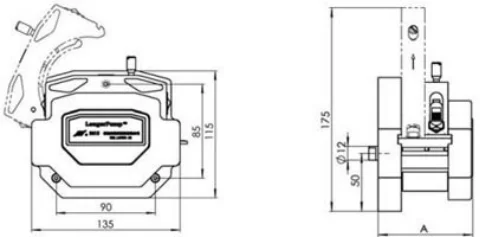

Dimensional Drawing:
Other parameters
| Model | Channel | Roller Number | Roller Material | Cartridge Material | Speed (rpm) | Tubing | Max. Flow rate (ml/min) | Weight (kg) |
| DG15-24 | 2 | 4 | Stainless Steel | POM | ≤600 | 16# 25# 17# | 1800 Single channel | 0.82 |
| DG15-28 | 2 | 8 | ≤100 | ID≤3.17(mm) | 75 Single channel | 0.67 | ||
| DG15-48 | 4 | 0.87 |
Our Packaging Details:
Our Shipping
Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.
We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.
Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.
Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.
Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
Please send your request details to us by clicking "send" at the bottom!
