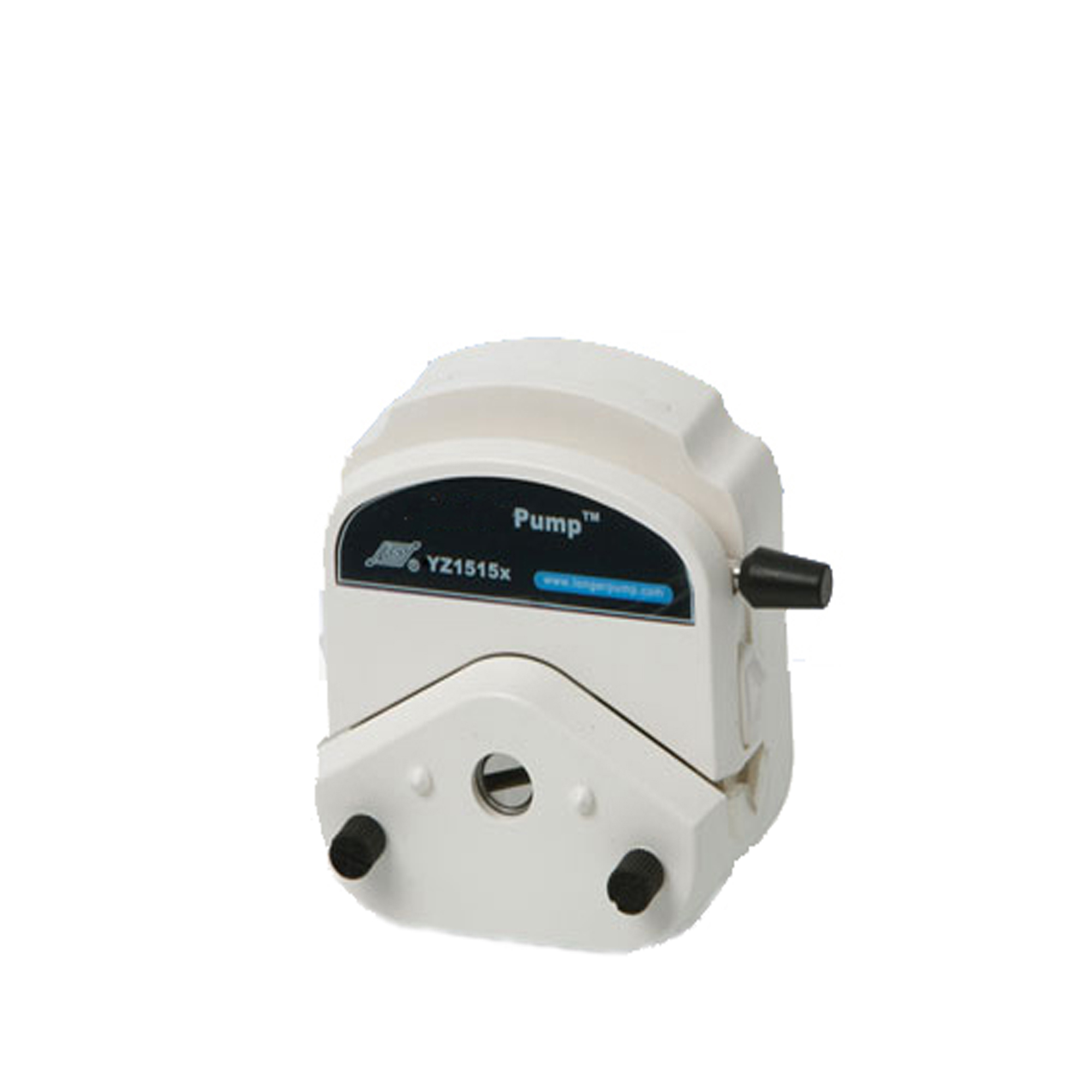

Nade Peristaltic pump Head YZ1515X 2200ml/min

  • Nade

  • YZ1515X

  • Zhejiang, China

  • Other, laboratory

  • 0, Low Pressure

  • Diaphragm Pump

  • 0.8-8mm

  • /

  • Other

  • Air Pump

  • Vacuum Pump

  • Peristaltic pump Head

  • 2200

  • ≤600

  • 13# 14# 19# 16# 25# 17# 18#

  • PESU

  • Stainless Steel

  • 3

Product Description

Nade Peristaltic pump Head YZ1515X 2200ml/min
Product Description

Instruction:

Change tubing easily and rapidly; Automatic tubing retention; Suitable for several tubing sizes; The rollers adopt high quality materials and has good wearing property; The housing of the pump head has perfect rigidity and structure property, and its materials is PESU which has stable performance and high temperature resistance (200 °C )

Parameter:

Type

Max. Flowrate

(mL/min)

Speed

(rpm)

Tubing

Housing
Material

Rollers
Material

Rollers
Quantity

Weight(Kg)

YZ1515X

2200

≤600

13# 14# 19# 16# 25#

17# 18#

PESU

Stainless
Steel

3

0.40

YZ2515X

1600

≤600

15# 24#

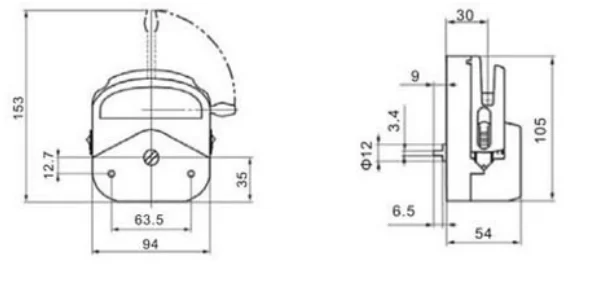

Dimensional Drawings (mm)

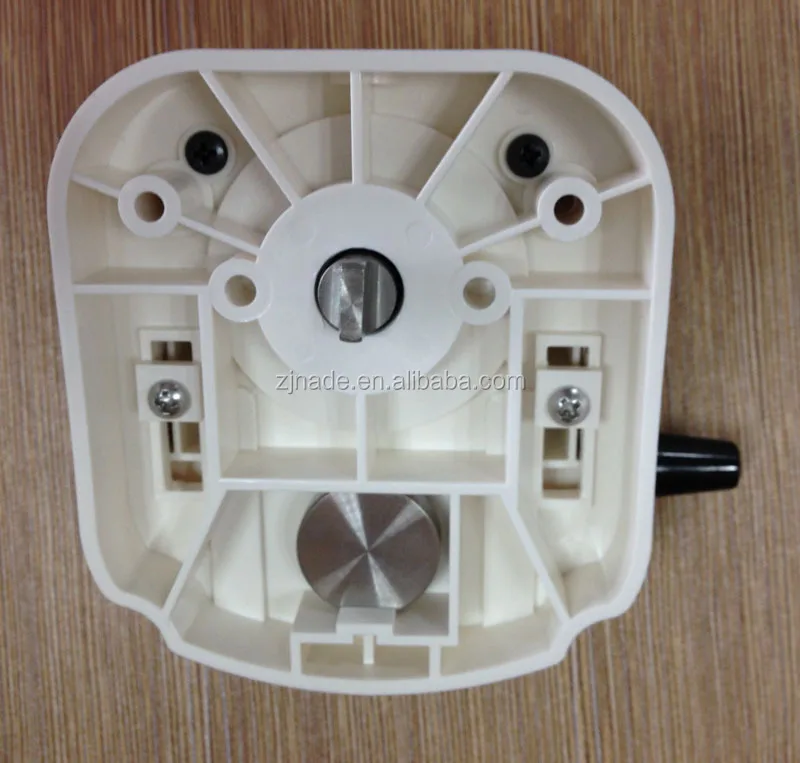

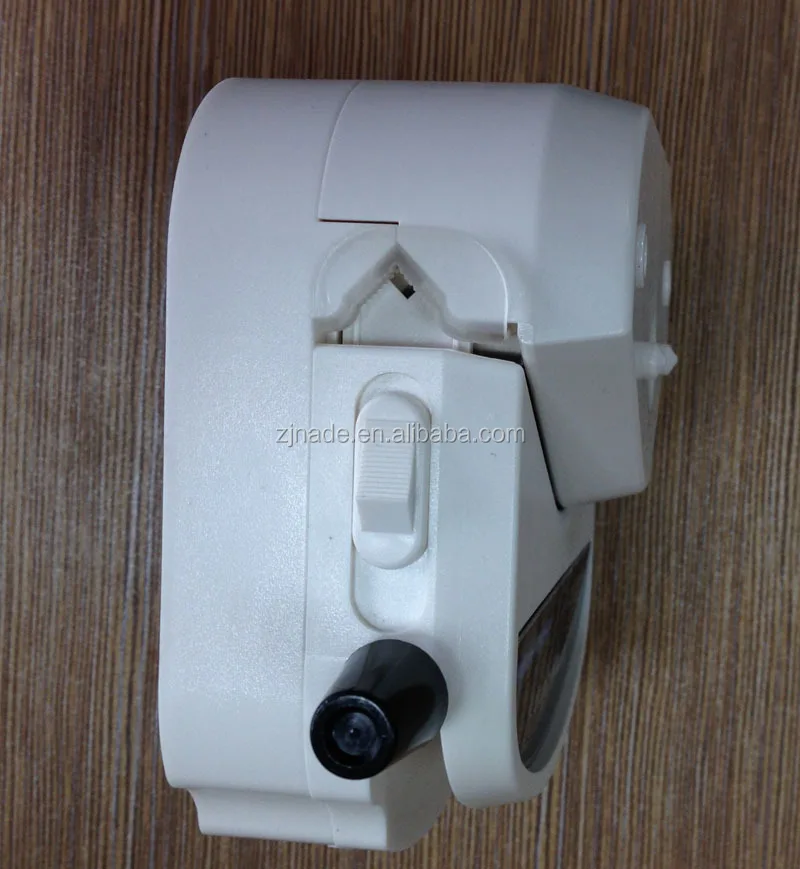

Real photos show

Nade Peristaltic pump Head YZ1515X 2200ml/min Nade Peristaltic pump Head YZ1515X 2200ml/min

Packaging & Shipping

Our Packaging Details:

Nade Peristaltic pump Head YZ1515X 2200ml/min

Our Shipping

Nade Peristaltic pump Head YZ1515X 2200ml/min

Company Information

Nade Peristaltic pump Head YZ1515X 2200ml/min

Nade Peristaltic pump Head YZ1515X 2200ml/min

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade Peristaltic pump Head YZ1515X 2200ml/min

Hot Selling Products

Hot Selling Products..........

Nade Peristaltic pump Head YZ1515X 2200ml/min Nade Peristaltic pump Head YZ1515X 2200ml/min Nade Peristaltic pump Head YZ1515X 2200ml/min
Nade Peristaltic pump Head YZ1515X 2200ml/min Nade Peristaltic pump Head YZ1515X 2200ml/min Nade Peristaltic pump Head YZ1515X 2200ml/min

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
