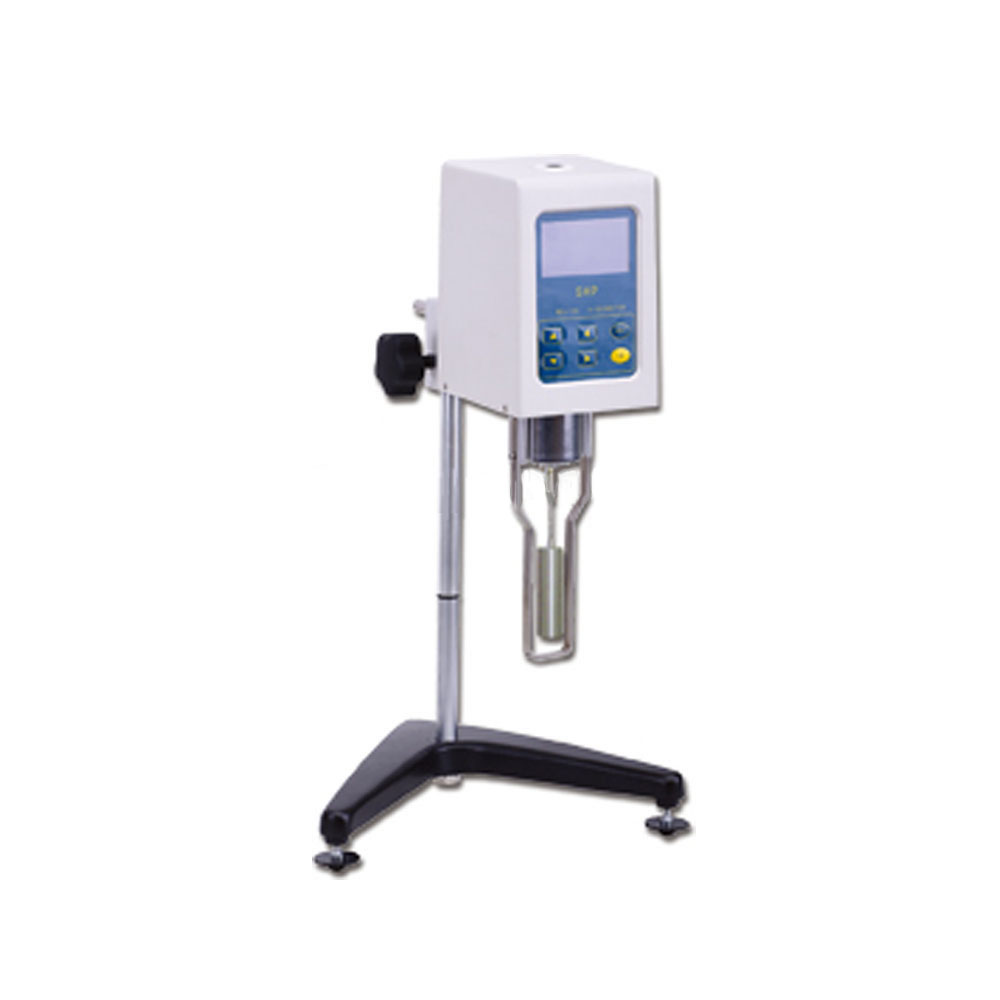

NDJ-8S Rotary Viscometer

Rotors speed(r/min):0.3/0.6/1.5/3/6/12/30/60
Rotor:1、2、3、4
Measure Range(mPa﹒s):10~2x106
Availability:
  • NDJ-8S
  • NADE
  • 220V 50HZ/60HZ
  • 1
  • 1
  • China

Product Description

Usage:

It is used to measure viscosity resistance and absolute viscosity of fluids, including lipid, oil, food. Many applications such as cosmetic, grease, painting, pharmacy and adhesives.


Feature:

1. New digital product based on the single chip micro-processor technologies
2. Used for determining the liquid viscose capacity and the absolute viscosity.
3. Comparing with other similar products, this instrument has the following features:
   High measuring accuracy;
   Stable in measured display;
   Easy operation and read-out;
   Excellent in Anti-interference.

Specification:


Model

NDJ-8S

NDJ-5S

SNB-1

Display mode

digital

Rotors speed(r/min)

0.3/0.6/1.5/3/6/12/30/60

6/12/30/60

6/12/30/60

Speed governing

Eight level

Intelligence

Intelligence

Rotor

1,2,3,4

Measure Range(mPa.s)

10~2×106

10~105

10~105

Measure error( Newtonian liquid )

±5%

±2%

Dimension(mm)

275×230×475

Voltage(V)

110-240



Accessories

No zero Rotor: specially used for small sample or low viscosity sample.

Our viscometer can work together with our Thermostatic Bath DC series
