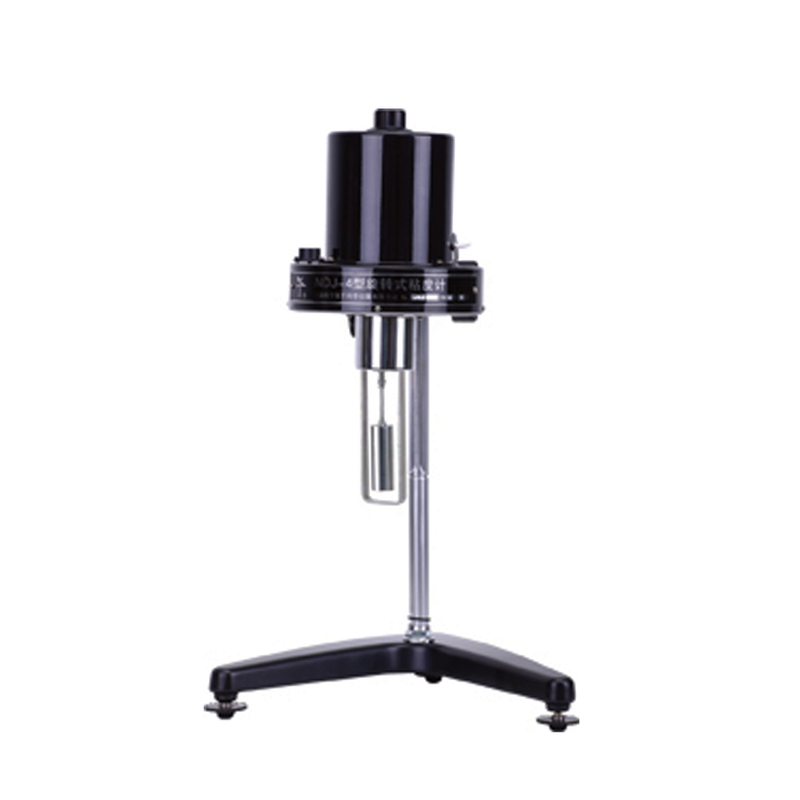

NDJ-4 Dial Rotational Viscometer

Measuring range :10~2,000,000mPa•s
Measurement accuracy(Newton liquids):±5%(F.S.)
Spindles Four spindles:No.1, 2, 3, 4
Rotation speed:0.3/0.6/1.5/3/6/12/30/60rpm
Availability:
  • NDJ-4
  • NADE
  • AC 220v±10%,50Hz Optional: AC 110V±10%
  • 1
  • 1
  • China

Product Description


The instrument is suitable to determine viscosity resistance and absolute viscosity of liquids. It is equipped with four spindles, so please select a suitable one as per the viscosity of liquids measured.

Purpose:
It is used to determine viscosities of oil greases, paints, plastics, foods, pharmaceuticals, adhesives, other liquids and various fluids.

Accessories


NDJ-1: No.0 spindle, suitable for low viscosity liquid and small volume sample(measuring range: 0.1~100mPa?s)
NDJ-1, NDJ-2, NDJ-4: Suggest equipped with circulation thermostatic water bath


Specification


Model

NDJ-1

NDJ-1(0#)

NDJ-4

Measuring range

1~100,000mPa•s

0.1~100,000mPa•s

10~2,000,000mPa•s

Measurement accuracy(Newton liquids)

±5%(F.S.)

±5%(F.S.)

±5%(F.S.)

Spindles

Four spindles, No.1, 2, 3, 4

No.0,1, 2, 3, 4

Four spindles, No.1, 2, 3, 4

Rotation speed

6/12/30/60 rpm

6/12/30/60 rpm

0.3/0.6/1.5/3rpm

6/12/30/60rpm

Power supply

AC 220v±10%, 50 Hz

Optional: AC 110V±10%

AC 220v±10%, 50 Hz

Optional: AC 110V±10%

AC 220v±10%,50Hz

Optional: AC 110V±10%

Size

275×265×445mm

275×265×445mm

275×265×445mm

*These are dial type, if you need digital type, pls contact us or search at our web.
*We have other viscometers for your reference, rotary viscosimeter, Brookfield Viscometer, Engler viscosimeter, Storm Krebs viscometer and so on.
For Newtonian liquid and non-Newtonian liquid, high viscosity and low viscosity whether in large capacity or small capacity.
