1 year
Laboratory Heating Equipments
other
NADE
SGM.M30/12S
Zhejiang, China
1200℃
30L

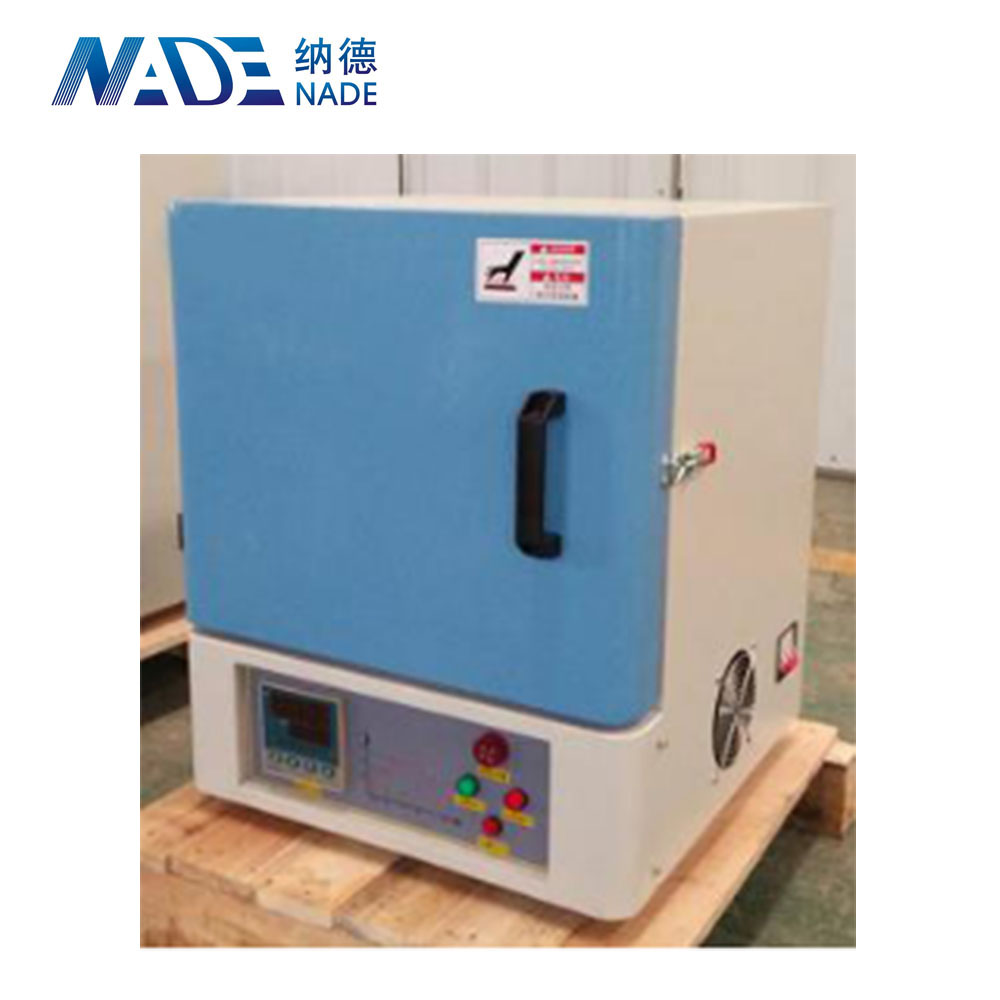

Product Description
I.Basic parameters
1. furnace size ( mm ): 300 (width) * 500 (depth) * 200 height (30L)
2. maximum temperature: 1200 ℃
3. temperature stability: ±1 ℃
4.heating speed: set freely from 0℃ / minute to 30 ℃ / minute
5. furnace material: alumina ceramic fiber material is adopted, which has high heating speed and energy saving
II.Heating control performance
1. power supply voltage: 380 volt
2. heating power: 12kw ( empty furnace absorbing power is about 30 % )
3. heating material: electric furnace wire
note: three - side heating, Located on the left, right and top of furnace )
4. control mode: thyristor control, PID parameter self-tuning function, manual / automatic non-interference switching function,over-temperature alarm function, programmable 30 sections, temperature rise curve can be set freely, and the instrument has temperature compensation and orrection functions
5. display accuracy: ±1 ℃
6. Flushing temperature value: Between 1 ℃ and 3 ℃
7. sensor type: S type
8. display window: measure temperature, set temperature Screen display, and heat power light column display.
