Energy & Mining, laboratory
No service
None
None
Not Available
Not Available
Ordinary Product
1 Year
other
New
Zhejiang, China
NADE
1300W
460mm*400mm*500mm
1 Year
Online support
Easy to Operate
AC(220±10%)V, 50Hz
1300W,continuous adjustment
100ml, division value 1ml
125ml,meet the requirements of GB/T 6536 and ASTM D86
(ambient+10)℃ to 60℃,free set
±0.5℃
LED
Room temp≤35℃
≤85%
Less 2000W
Product Description

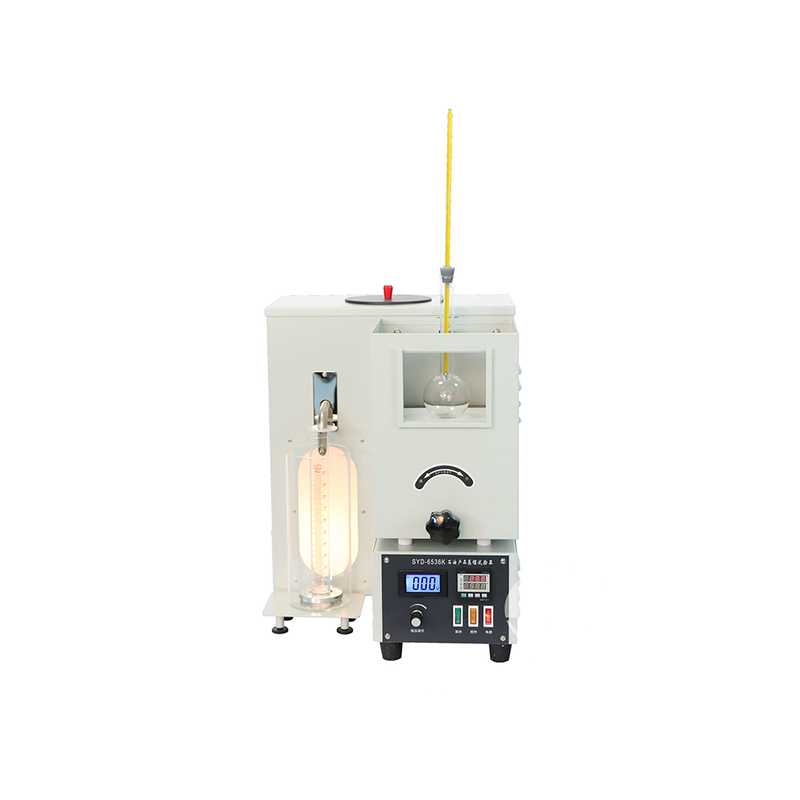

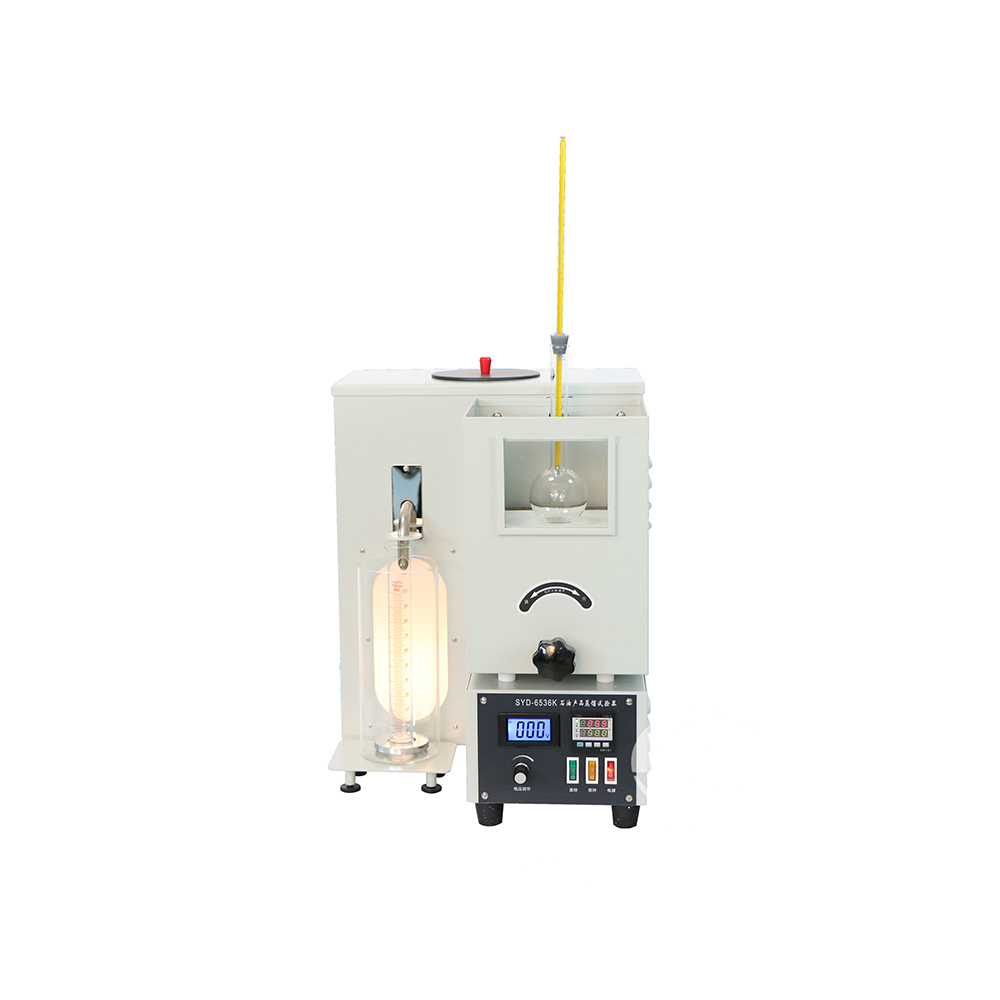

The instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.
1. This instrument is desktop structure. The design is reasonable. It is easy to use.
2. It adopts a special heating furnace to ensure the safety. The heating power can be adjusted continuously.
3. The rising up and lowering down of distillation flask can be adjusted free by lifting device.Flexible and convenient to operate.
4. Condensing tank with the temperature control function, temperature range (ambient+10)℃ to 60℃ free set and adjusted,inner temperature of bath is uniform and fit the test requirement.
| Model | SYD-6536K | |
| Power supply | AC(220±10%)V,50Hz | |
| Heating power | 1300W,continuous adjustment | |
| Receiving cylinder | 100ml, division value 1ml | |
| Distillation flask | 125ml,It can meet requirements GB/T 6536 and ASTM D86 | |
| Water bath temperature controller | Range | (ambient+10)℃ to 60℃,free set |
|
| Accuracy | ±0.5℃ |
|
| Display | LED |
|
| Heater power | 600W |
| Note:the water bath temperature control is to manage the phlegma temperature of condenser pipe. | ||
| Ambient temperature | Room temp≤35℃ | |
| Relative humidity | ≤85% | |
| Maximum power consumption | Less 2000W | |
| Dimension | 460mm*400mm*500mm | |
Notes:
1. The reagent and equipments for installing the instrument are supplied by end-users themselves.
2. The thermometer needs to be purchased by the end user. Parameter: (-2∼300)℃,(-2∼400)℃,scale division is 1℃,each 1.
3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
4. PLS read the operation manual and industry standard before using the instrument.
