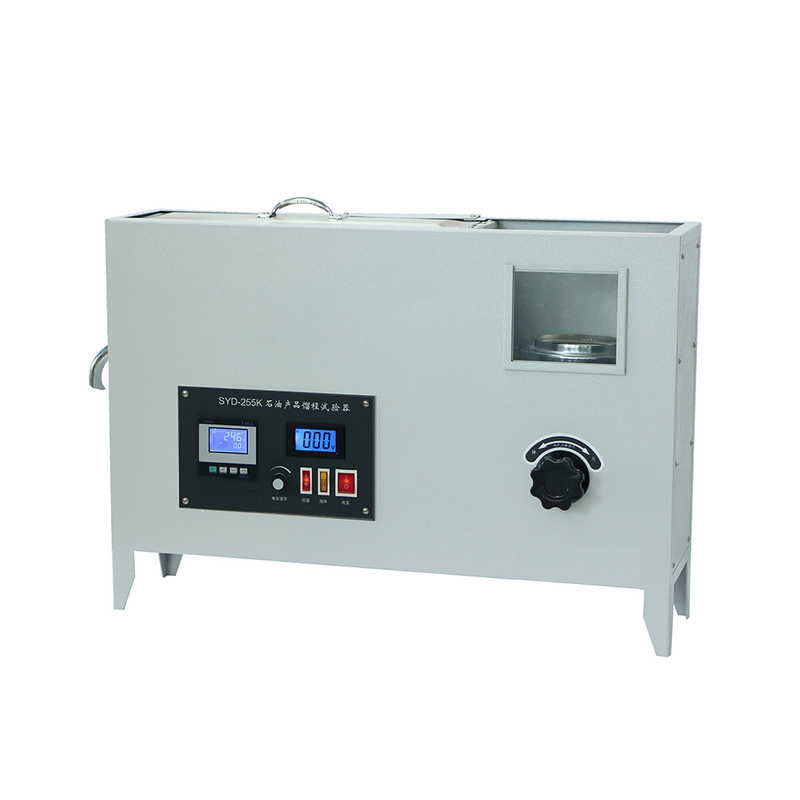

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

  • Energy & Mining, laboratory

  • Online support

  • None

  • None

  • Not Available

  • Not Available

  • Ordinary Product

  • 1 Year

  • other

  • New

  • Zhejiang, China

  • NADE

  • 1000W

  • 710mm*240mm*470mm

  • 1 Year

  • Online support

  • Easy to Operate

  • AC(220±10%)V, 50Hz

  • 1000W,Heating rate can be adjusted continuously.

  • ball dia.69mm±1mm;bottleneck dia.16mm±1mm

  • (0~360)℃,division value 1℃

  • SS,The condenser pipe is made of brass and dia.16mm*1mm

  • 10ml and 100ml

  • Room temperature-10~+35℃. Relative humidity ≤85%

  • 1100W

  • 710mm*240mm*470mm

Product Description

Product Description

The instrument is designed and made as per the national standard of People’s Republic of China GB/T255 Standard Test Method for Distillation Characteristics of Petroleum Products and the industrial standard of People’s Republic of China SH/T0121 Technical Requirements for Petroleum Products Distillation Apparatus. It is suitable to determine distillate constituent of liquid fuels, solvent oils, and light petroleum products.

Feature

1. This instrument is a kind of all-in-one machine. The design is reasonable and easy to operate.

2. The rising up and lowering down of the heating furnace is easy and stable to adjust.

3. The water chamber adopts stainless steel material.Good corrosion resistance.

4. The heating power can be adjusted continuously by electronic voltage regulator.

Specification

Model

SYD-255K

Power supply

AC(220±10%)V,50Hz

Distillation flask

Made of hard glass. Heat resistance is higher than 500℃. Diameter of ball is Dia.69mm±1mm. Diameter of bottleneck is Dia.16mm±1mm. The angle between branch pipe and bottleneck is 75°±3°

Thermometer

(0~360)℃,division value 1℃

Condensate tank

Made of stainless steel material. The condenser pipe is made of brass and diameter is Dia.16mm*1mm

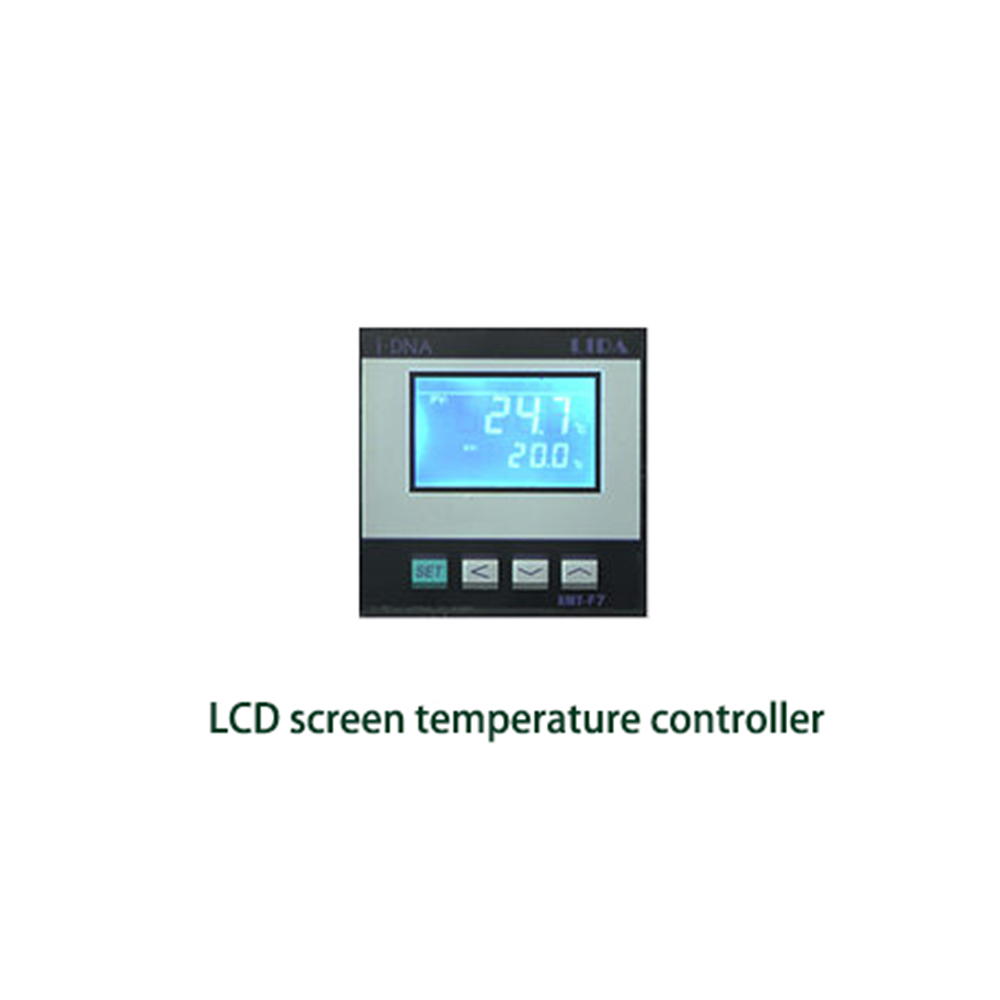

Condensate tank temperature control

Automatic temperature control function,temperature range (ambient+10)℃ to 60free set,accuracy ±0.5.

Heat adjustment

It consists of heating device,thermal control circuit and control panel. Power 1000W,Heating rate can be adjusted continuously.

Measuring cylinder and weight

Two kinds of cylinder 10ml and 100ml. The weight is made of carbon steel and being placed on cylinder bottom to prevent the cylinder from floating

Working environment

Room temperature-10~+35. Relative humidity 85%

Maximum power consumption

1100W

Dimension

710mm*240mm*470mm

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2. The thermometer needs to be purchased by the end user. Parameter:0~360℃,Scale mark 1.0℃).

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

PLS read the operation manual and industry standard before using the instrument.

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

Other models:

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

SYD-255 SYD-6536

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml SYD-6536A SYD-6536B-1 SYD-6536K

Certifications

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

Packaging & Shipping

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

Company Information

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

Our Services

NADE SYD-255K Laboratory Distillation Apparatus(All-in-one,Water Bath Control Temperature) for Petroleum Products 10ml 100ml

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
