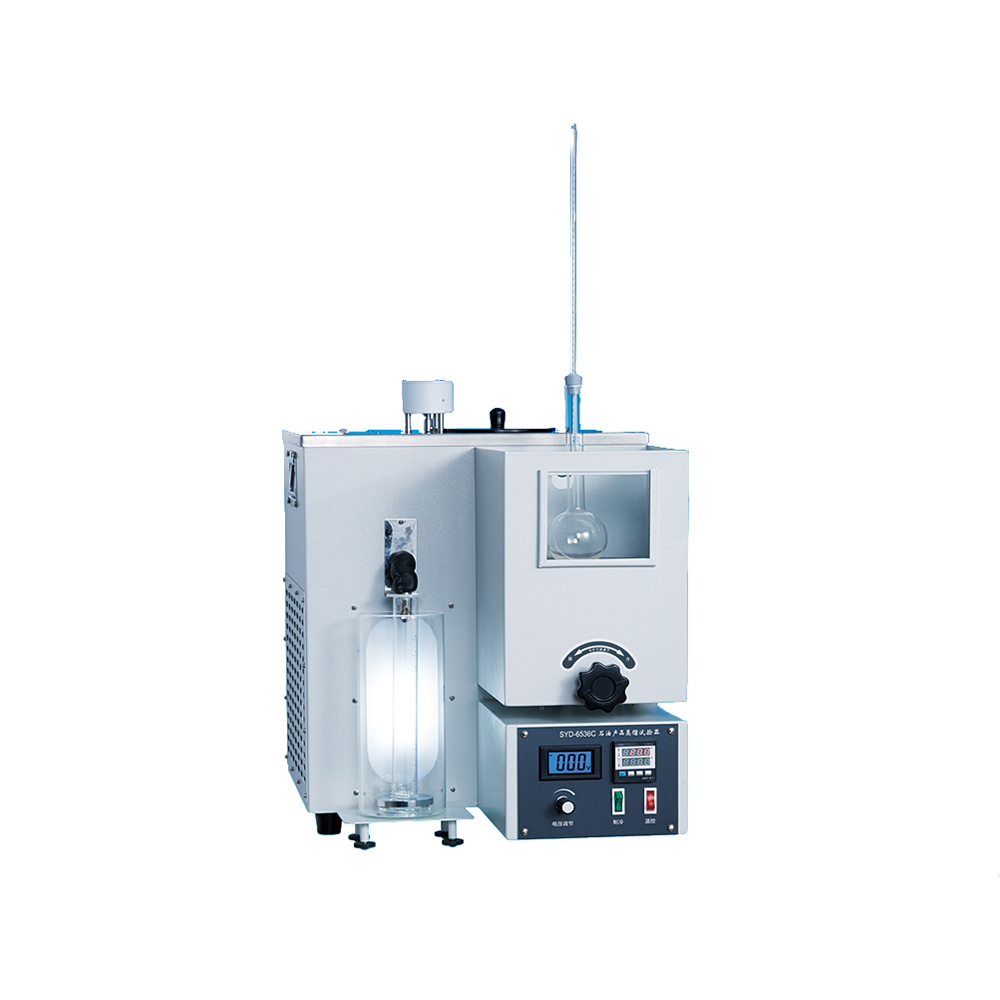

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

  • Energy & Mining, laboratory

  • Online support

  • None

  • None

  • Not Available

  • Provided

  • Ordinary Product

  • 1 Year

  • other

  • New

  • Zhejiang, China

  • NADE

  • 1000W

  • 1 Year

  • Online support

  • Easy to Operate

  • AC(220±10%)V, 50Hz

  • 1000W

  • 100ml, division value 1ml

  • 125ml,meet the requirements of GB/T 6536 and ASTM D86

  • (-2~300)℃ and (-2~400)℃, division value 1℃

  • SiC, bore diameter 32mm, 38mm, 50mm

  • 0℃~60℃

  • ≤30℃

  • ≤85%

  • 2500W

Product Description

Product Description

The instrument is designed and made as per standards GB/T6536 Test Method for Distillation Characteristics of Petroleum Products and ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.

Feature

1. The electrics parts are controlled by controlling case.

2. The controlling case is made of cold rolled steel. It has an observation window and a built-in furnace. The electric part is at the lower section of the controlling case.

3. The furnace part is composed of SiC furnace base, heater of 1000W/220V, and SiC plate. The position of furnace can be adjusted by rotating the up and down knob on the controlling case, so that you can adjust the relative position of distillation flask and the opening of condensation tube. The heating power can be adjusted by rotating the voltage adjusting knob.

4. The refrigeration bath is made of stainless steel. It contains heating device, refrigeration device, temperature measuring device and stirring device. The stirring device is driven by a motor.

5. The dimension of condensation tube complies with GB/T6536.Specification

Specification

Model

SYD-6536C

Power supply

AC(220±10%)V,50Hz

Heating power

1000W

Receiving cylinder

100ml, division value 1ml

Distillation flask

125ml,as per GB/T 6536 and ASTM D86

Thermometer

Total immersion. They are from -2 to 300 ℃ and from -2 to 400 ℃. The scale divisions of them are 1 ℃.

Flask support board

SiC, bore diameter Dia.32mm, Dia.38mm, Dia.50mm

Temperature controller

Range

0℃~60℃

Accuracy

±0.5℃

Display

LED

Ambient temperature

≤30

Relative humidity

≤85%

Cooling system

New type refrigeration compressor

Maximum power consumption

2500W

Notes:

1. The reagent and equipments for installing the instrument are supplied by end-users themselves.

2. The thermometer needs to be purchased by the end user. Parameter: (-2∼300)℃,(-2∼400)℃,scale division is 1℃,each 1.

3. The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.

4. PLS read the operation manual and industry standard before using the instrument.


NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

Other models

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

SYD-255K SYD-6536

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

SYD-6536B SYD-6536D SYD-6536K

Certifications

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

Packaging & Shipping

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

Company Information

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

Our Services

NADE SYD-6536C Laboratory Low Temperature Single tube Distillation Apparatus for Petroleum Products 100ml 125ml

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
