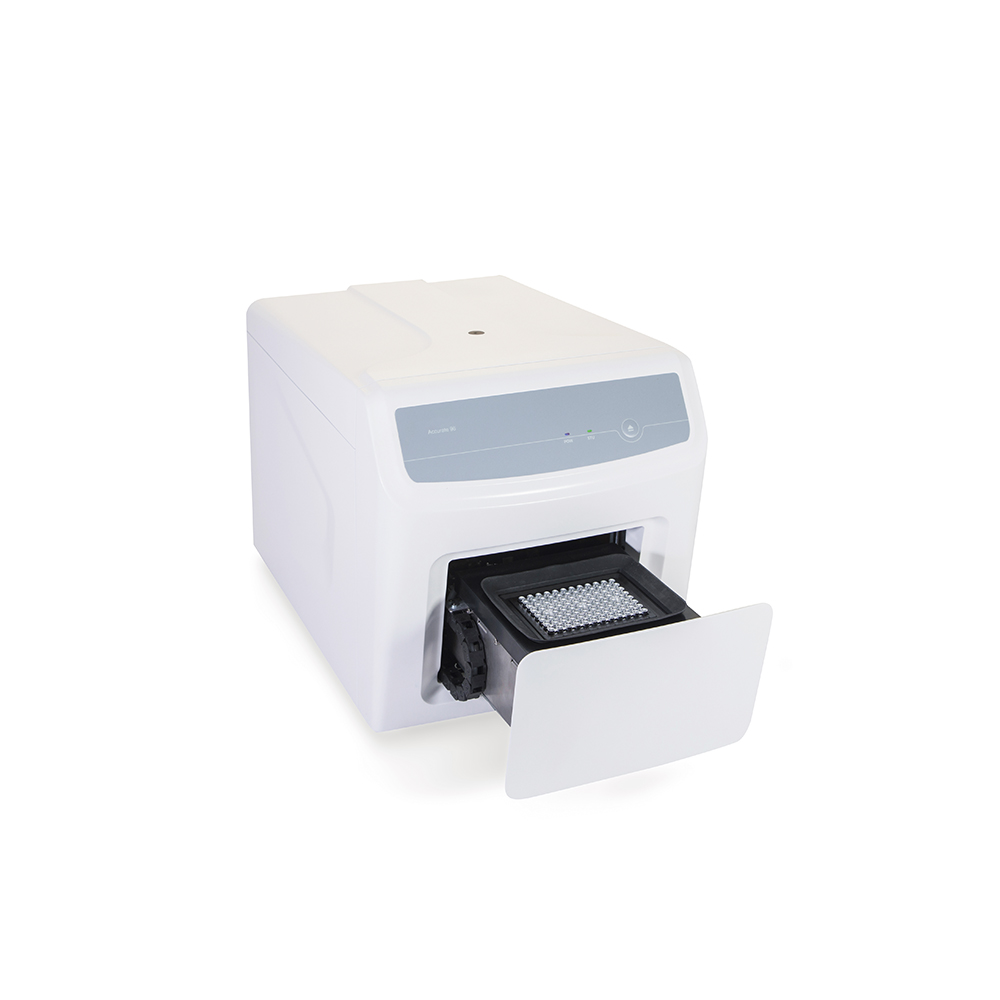

NADE Real-time Quantitative PCR for RNA detection

  • 1 year

  • Laboratory Thermostatic Devices

  • other

  • NADE

  • QPCR 4 channel

  • Zhejiang, China

  • 96

  • 10-50 μl

  • 6.0° C/s

  • 4-100 °C

  • ± 0.2°C

  • ±0.2℃ @60℃ , ±0.3℃ @95℃

  • 30-100°C

  • 4 channels

  • 455-650nm

  • 4 monochrome high efficiency LEDs

Product Description

Product Description

introduction:

As a necessary choice for quantitative analysis of molecular biology, real-time PCR system has been widely used in various fields such as scientific research, clinical detection and diagnosis, quality and safety testing, and forensic applications.


Features:

* Up to 6 fluorescence detection channels allowing multiplex PCR.
* Effectively reduce multi-color crosstalk and edge effect, no ROX correction required.
* New optical scanning detection system
* Innovative scanning method and time-resolved signal separation technology
* Unique edge temperature compensation technology
* User-friendly software


Specifications:

Temperature control system
Sample capacity
96
Reaction volume
10-50 μl
Thermal cycle technology
Peltier
Max. Heating/Cooling rate
6.0° C/s
Heating temperature range
4 – 100 °C
Temperature accuracy
± 0.2°C
Temperature uniformity
±0.2℃ @60℃ , ±0.3℃ @95℃
Temperature gradient setting range
30–100°C
Temperature gradient difference setting range
1 – 36°C
Detection system
Excitation light source
4/6 monochrome high efficiency LEDs
Detection device
PMT
Detection mode
Time-resolved signal separating technology
Excitation/detection wavelength range
455-650nm/510-715nm
Fluorescent channels
4/6 channels
Supported dye
FAM/SYBR Green, VIC/JOE/HEX/TET, ABY/NED/TAMRA/Cy3, JUN, ROX/Texas Red, Mustang Purple, Cy5/LIZ
Sensitivity
Single copy gene
Resolution
1.33 folds copy number difference can be distinguished in single-plex qPCR
Dynamic range
10 orders of magnitude copies
Detailed Images
Other models
Packing & Delivery

Standard packing for export.
