Product Description
ELVE series thermal cycler uses long service life peltier. ltsmax. Ramping rate is 5 °C/s and cycle times is more than1000,000. The product combines a variety of advanced technologies: Android system; color touch screen; gradient function; WlFl module built-in; support cell phone APP control; email notification function; big storage capacity and support USB device.

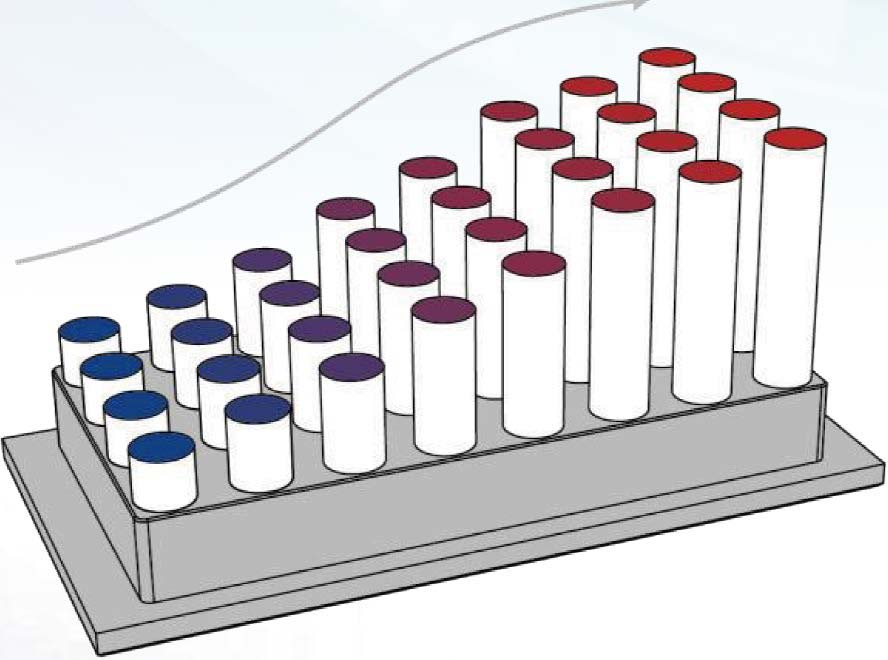

Gradient function
Features
● Small size, light weight, teaching version and vehicle version are available.
● Android system, smooth operation.
● WiFi module built-in; support cell phone APP control; email notificatioh function.
Specifications
Model/Specification | ||

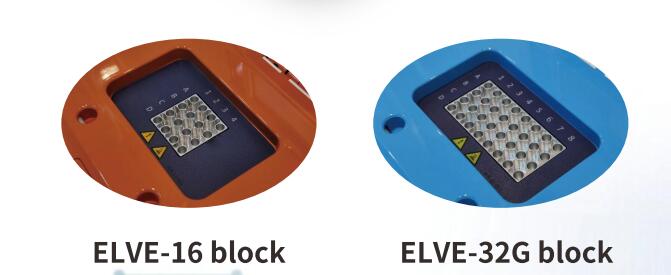

Model No. | ELVE-16 | ELVE-32G |
Capacity | 16×0.2ml(4×4 layout) | 32×0.2ml(4×8 layout) |
Formats | 0.2ml single tube | 0.2ml single tube, 8 strip |
Reaction Volume | 5-80ul | |
Temperature Performance | ||
Temperature Range | 4-100℃ | |
MAX. Ramp Rate | 5℃/s | |
Uniformity | ≤±0.2℃ | |
Accuracy | ≤±0.2℃ | |
Display Resolution | 0.1℃ | |
Temperature Control | Block/Tube | |
Ramping Rate Adjustable | 0.01-5℃/s | |
Hold at 4℃ | Forever | |
Gradient Performance | ||
Gradient Temp. Range | / | 30-100℃ |
Gradient Spread | / | 0.1-30℃ |
Hot Lid Function | ||
Hot Lid Temperature | 30-110℃ | |
Software Function | ||
Number of Programs | 10,000+(USB FLASH) | |
Max. No. of Step | 30 | |
Max. No. of Cycle | 100 | |
Time Increment/ Decrement | 1S-600 S，Long PCR is available | |
Temp. Increment/ Decrement | 0.1-10.0°℃，Touchdown PCR is available | |
Pause Function | Yes | |
Auto Data Protection | Yes | |
Touchdown Function | Yes | |
Long PCR Function | Yes | |
Language | English | |
Computer Software | Yes | |
Mobile Phone APP | Yes | |
Other Performance | ||
LCD | 5 inch, 800x480 Pixels | |
Communication | USB 2.0, WIFI | |
Dimensions | 267mm×190mm×115mm(L×W×H) | |
Weight | 2.5kg | 2.6kg |
Power Supply | 100-240VAC,50/60Hz,120W | 100-240VAC,50/60Hz,200W |
