| Model: | |
|---|---|
GET3XG
NADE
1
CHINA
Product Description
● Innovation Research
● Triple block gradient PCR
● Efficient Economic and Environmental
GET3XG thermal cycler uses long service life peltier. lts max.Ramping rate is 5 'C/s and cycle times is more than 1000,000.The product combines a variety of advanced technologies: Android system; Color capacitive touch screen; 3 blocks can run gradient experiments independently, built-in WlFl module, mobile APP and PC software control function, email notification function, big storage capacity and etc. All above functions allow PCR's excellent performance and meet higher experiment' s need.
Features

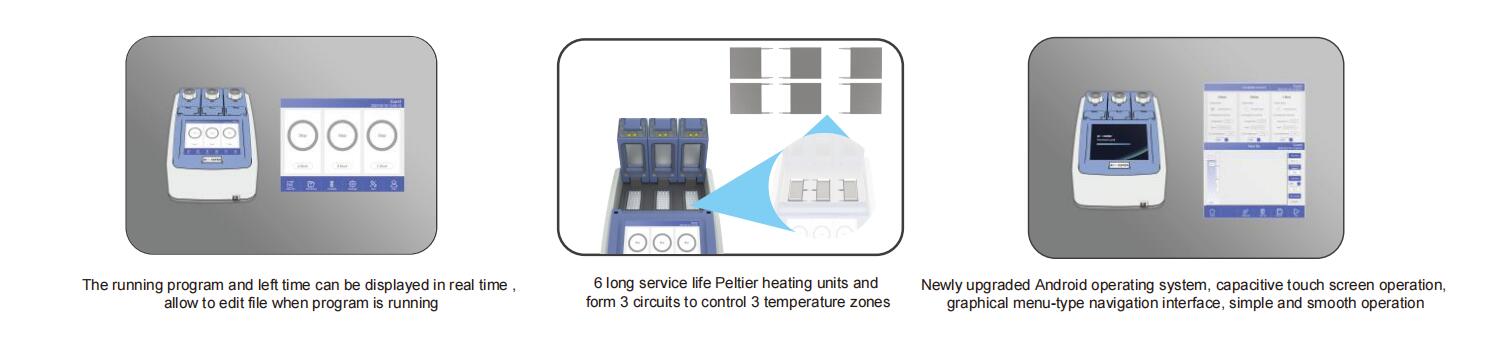

● 6 long service peltier for high temperature accuracy.
● Ramping rate 5 ℃/s, can save your precious time.
● One-click rapid incubation function to meet a variety of experimental needs.
● 3 blocks can run gradient experiments independently to improve the efficiency.
Specifications
Model/Specification | ||
Model No. | GET3X(General) | GET3XG (Gradient) |
Capacity | 3×(32×0.2ml) | |
Formats | 0.1/0.2ml，8 strips | |
Reaction Volume | 5-120μl
| |
Temperature Control Performance | ||
Temperature Range | 0-105℃ | |
MAX. Ramp Rate | 5℃/s | |
Uniformity | ≤±0.2℃ | |
Accuracy | ≤±0.1℃ | |
Display Resolution | 0.1℃
| |
Temperature Control | Block/Tube | |
Ramping Rate Adjustable | 0.01-5℃/s
| |
Hold at 4℃ | Forever | |
Gradient Performance | ||
Gradient Temp. Range | / | 30-105℃
|
Gradient Spread | / | 0.1-30℃
|
Hot Lid Function | ||
Hot Lid Temperature | 30-115℃ | |
Hot Lid Height Adjustable | Stepless Adjustable | |
Software Function | ||
Number of Programs | 200,000+(USB FLASH)
| |
Max. No. of Step | 30(Multiple nested PCR experiments) | |
Max. No. of Cycle | 200(Up to 100,000 in nested cycles) | |
Time Increment/ Decrement | 1Sec-600 Sec，Long PCR is available | |
Temp. Increment/ Decrement | 0.1-10.0°℃，Touchdown PCR is available | |
Pause Function | Yes | |
Auto Data Protection | Yes | |
Temperature Curve | Record hot lid and module temperatures in real time, with a 60-minute recording time on a single page and a sliding view | |
GLP Report | Record the running information of each step of the program, and can export CSV, PDF format report | |
File Encryption Function | Individual program files can be encrypted | |
User Management Privilege | Three levels of access (administrator, user, guest) | |
Email Notification | Email notification after experiment is over | |
Lock Screen Function | Prevents accidental termination of the program being experimented on | |
PC-LINK Function | Simultaneous on-line monitoring of more than 250 instruments | |
Mobile Phone APP | Simultaneous on-line monitoring of more than 250 instruments | |
Other Performance | ||
LCD | 8 inch, 800x600 Pixels | |
Communication | USB 2.0,LAN，WIFI | |
Dimensions | 390mm×270mm×255mm(L×W×H) | |
Weight | 9kg | |
Power Supply | 100-240VAC,50/60Hz,600W | |
