RePure-D Series
NADE
1
CHINA
Product Description
● Innovation Research and development
● Dual block PCR
● Multiple gradient exploration function
RePure-D/D+ series thermal cycler has Android operation system and 10.1 inch capacitive touch screen. Independent operation of double blocks. Air channel is in front and back and it allows machine placed side by side. Self-adapting pressure hot lid makes closing lid and tightening lid in one step. It has long service life peltier heating units and max. ramping rate is 8℃/S. Wifi unit is built in and user can control many units of PCR through mobile App.
Features

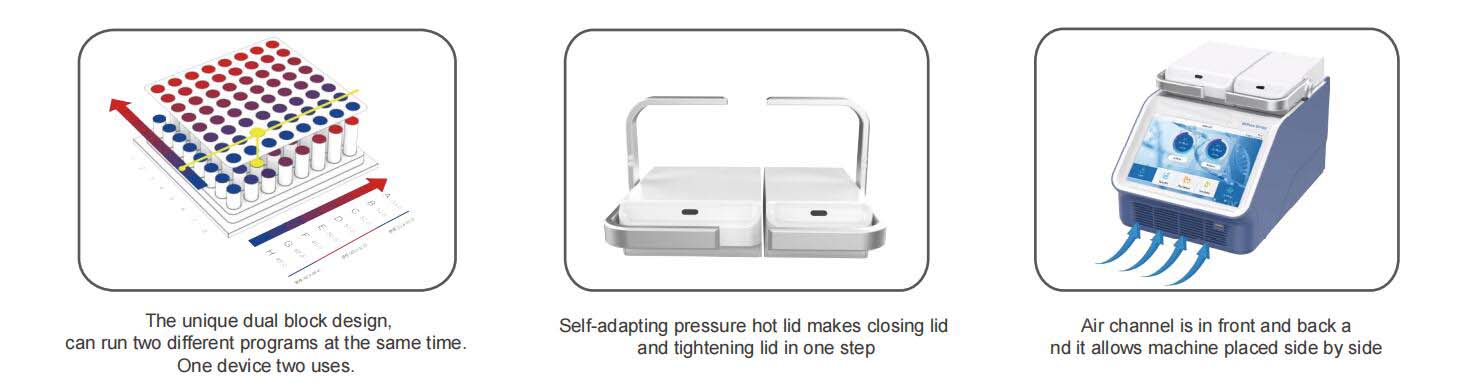

● Double blocks design, a variety of combinations, one machine can be used for two different programs.
● High heating and cooling rate, max. Ramping rate 8 ℃/s, can save your precious time.
● Self-adapting pressure hot lid makes closing lid and tightening lid in one step
● Air channel is in front and back and it allows machine placed side by side.
Specifications
Model/Specification | ||||||||||||||
Model No. | RePure-D(B) | RePure-D | RePure-D（F） | RePure-D（P） | ||||||||||
Capacity | 64×0.2ml (A Block) + 32×0.2ml (B Block) | |||||||||||||
Formats | 0.2ml tube, 0.2ml 8 strips | |||||||||||||
Reaction Volume | 5-120ul | |||||||||||||
Temperature Performance | ||||||||||||||
Temperature Range | 0-105℃ | |||||||||||||
MAX. Ramp Rate | 5℃/s | 8℃/s | ||||||||||||
Uniformity | ≤±0.2℃ | |||||||||||||
Accuracy | ≤±0.1℃ | |||||||||||||
Display Resolution | 0.1℃ | |||||||||||||
Temperature Control | Block/Tube
| |||||||||||||
Ramping Rate Adjustable | 0.01-5℃/s | 0.01-8℃/s | ||||||||||||
Hold at 4℃ | Forever | |||||||||||||
Gradient Performance | ||||||||||||||
Gradient Temp. Range | 30-105℃
| |||||||||||||
Gradient Type | Normal/Linear (A Block) | Normal/Linear (B Block) | Normal/Linear (A Block) | Normal/Linear (B Block) | Normal/Linear (A Block) | Normal/Linear (B Block) | Normal/Linear (A Block) | Normal/Linear (B Block) | ||||||
Gradient Spread | 0.1-30℃ | 0.1-30℃ | Horizontal: 0.1-30℃ Vertical： 0.1-30℃ | 0.1-30℃ | 0.1-30℃
| 0.1-30℃
| Horizontal: 0.1-30℃ Vertical： 0.1-30℃ | 0.1-30℃ | ||||||
Hot Lid Function | ||||||||||||||
Hot Lid Temperature | 30-115℃ | |||||||||||||
Software Function | ||||||||||||||
Number of Programs | 200,000+(USB FLASH)
| |||||||||||||
Max. No. of Step | 40(Multiple nested PCR experiments) | |||||||||||||
Max. No. of Cycle | 200(Up to 100,000 in nested cycles) | |||||||||||||
Time Increment/ Decrement | 1s -600s，Long PCR is available | |||||||||||||
Temp. Increment/ Decrement | 0.1-10.0°℃，Touchdown PCR is available | |||||||||||||
Pause Function | Yes | |||||||||||||
Auto Data Protection | Yes | |||||||||||||
Temperature Curve | Record hot lid and module temperatures in real time, with a 60-minute recording time on a single page and a sliding view | |||||||||||||
GLP Report | Record the running information of each step of the program, and can export CSV, PDF format report | |||||||||||||
File Encryption Function | Individual program files can be encrypted | |||||||||||||
User Management Privilege | Three levels of access (administrator, user, guest) | |||||||||||||
Email Notification | Email notification after experiment is over | |||||||||||||
Lock Screen Function | Prevents accidental termination of the program being experimented on | |||||||||||||
PC-LINK Function | Simultaneous on-line monitoring of more than 250 instruments | |||||||||||||
Mobile Phone APP | Simultaneous on-line monitoring of more than 250 instruments | |||||||||||||
Other Performance | ||||||||||||||
Communication | USB 2.0, WIFI | |||||||||||||
Dimensions | 385mm×270mm×255mm(L×W×H) | |||||||||||||
Weight | 11kg | 18kg | ||||||||||||
Power Supply | 100-240VAC,50/60Hz,600W | 100-240VAC,50/60Hz,1200W | ||||||||||||
