Q9600 Pro Series
NADE
1
CHINA
Product Description

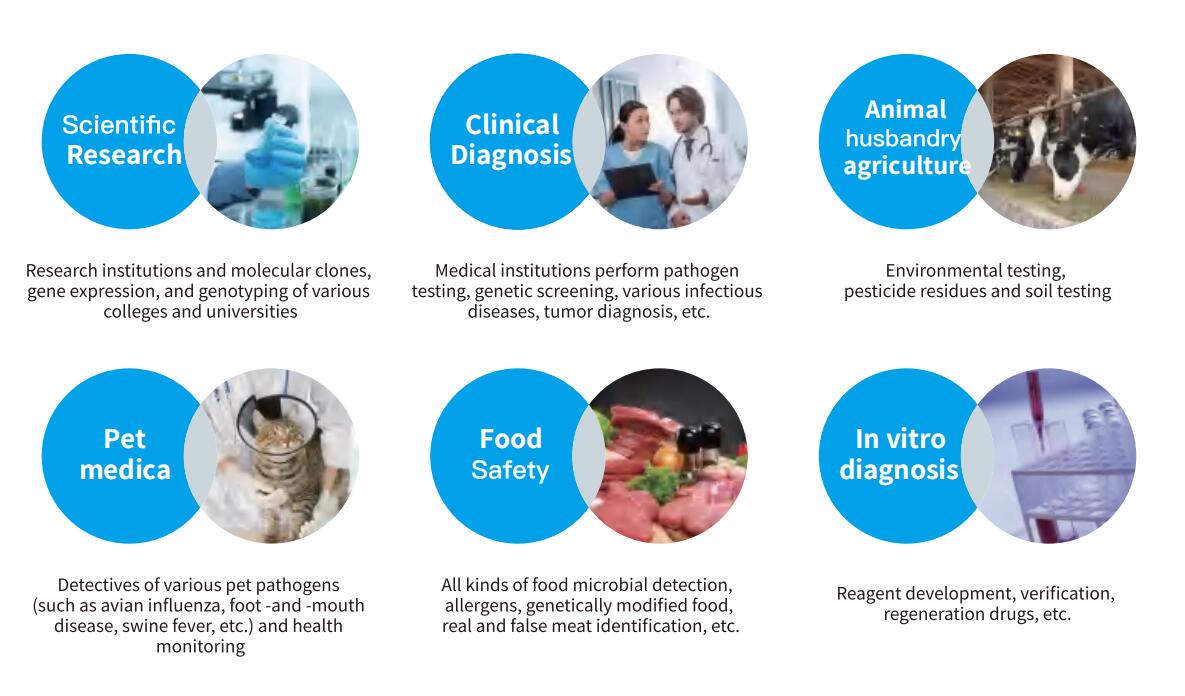

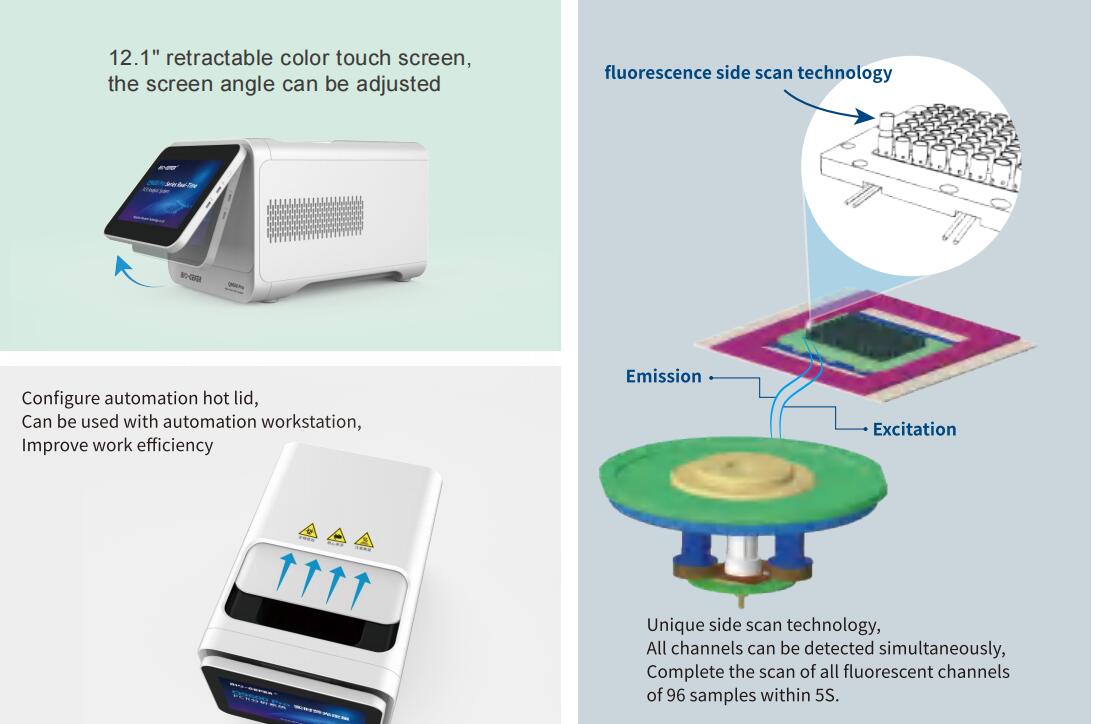

Q9600 Pro is ahigh-throughput real-time PCR instrument. lt adheres to the principles of high efficiency and quality, combined with the advanced temperature control system andoptical system, as well as powerful software analysis functions. lt canrealize applications such as qualitative/quantitative analysis, genotyping, allele identification, HRM, melting curve analysis and etc . The product adopts side scan technology and all channels are collected at the sametime. 96 samples can be scanned within 5 seconds to save the test time.This product has powerful software and hardware functions to meetthe different need.
Features
● Strong fluorescence signal, low background noise and high sensitivity
● 96 samples 6 fluorescent channels are scaned within 5S
● LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free
● Automatic hot lid, which can be used with automated workstations to improve work efficiency
● With 12.1-inch LCD touchscreen, real-time monitoring of operating conditions
● Powerful software analysis functions can perform qualitative/quantitativeanalysis, high-resolution melting curve, genetic typing, relative quantitative, temperature gradient function, etc.
Specifications
Model/Specification | |||
Model No. | Q9602 Pro | Q9604 Pro | Q9606 Pro |
Sample Capacity | 96 well, 12×8 strip, 96×0.2ml single tube | ||
Formats | 0.2ml tube, 0.2ml 8-tube strips, 0.2ml 96 well plate | ||
Reaction Volume | 10-100ul | ||
Temperature Control Performance | |||
Temperature Range | 0-100℃ | ||
MAX. Ramp Rate | 8℃ | ||
Temp. Fluctuation | ≤±0.1℃ | ||
Uniformity | ≤±0.2℃ | ||
Accuracy | ≤±0.1℃ | ||
Gradient Spreed | 0.1-42℃ | ||
Hot Lid Temperature | 30℃-110℃（Adjustable, default 105℃） | ||
Temperature Control | Block/Tube | ||
Optical Performance | |||
Excitation Wavelength | 300-810nm | ||
Emission Wavelength | 500-810nm | ||
Detection Channel | 2 channel | 4 channel | 6 channel |
Detection Method | All channels scan at the same time | ||
Scan Period | 5 seconds to complete 96 well test | ||
Factory Calibrated Dyes | F1:FAM/SYBR-Green/EVA-Green F2:HEX/VIC/JOE/TET/CY3/YELLOW | F1:FAM/SYBR-Green/EVA-Green F2:HEX/VIC/JOE/TET/CY3/YELLOW F3: ROX/Texas Red F4: Cy5 | F1:FAM/SYBR-Green/EVA-Green F2: HEX/VIC/JOE/TET/YELLOW F3: ROX/Texas Red F4: Cy5 F5:Cy5.5 F6: CY3 |
Excitation | Long life LED | ||
Detection | High sensitivity photoelectric detector | ||
Dynamic Range | 1-1010Copies | ||
Sensitivity | 1 copy | ||
Control System | |||
Lid Operation | Automatic hot lid | ||
Feature Function | Qualitative/absolute quantification, relative quantitative, genotyping, HRM, melting curve, standard curve, allele identification, temperature gradient function, etc. | ||
Data Management | Audit Trail System | ||
Operation System | Win7,Win10,Win11 | ||
Remote Monitoring | Can connected to laboratory management system
| ||
Automation Platform | Can be used with automated workstations
| ||
Date Export Formats | excel,csv,txt，pdf | ||
Printing | Report can be printed directly | ||
Control Method | 12.1-inch retractable color touch screen control or connect to computer control
| ||
Communication | USB2.0，RS232 | ||
Other Performance | |||
Dimension | 520×350×330mm(L×W×H) | ||
Weight | 30KG | ||
Voltage | 100-220VAC，50-60Hz | ||
Power | 1500W | ||
