1 year
other
China
NADE
RPDV-1
Electronic
50 - 300,000
60,100,150,200
±2% of full scale
1.0%
Product Description

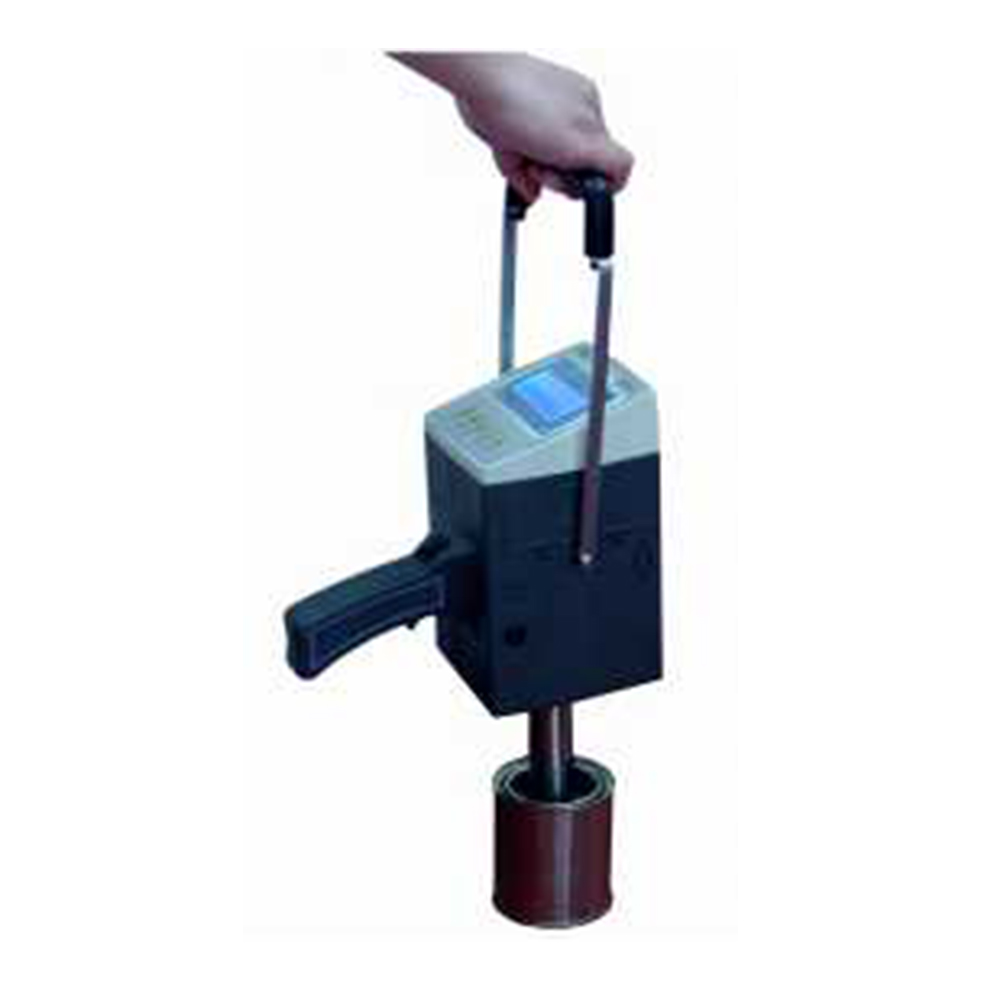

NADE PDV series portable digital viscosimeter The new handy type model PDV serial viscometer RPDV-1
Insert the fluid and do real-time measurement
microcomputer control technique ,user friendly interface;
brand new and humanized design,easy operation,accurate and fast measurement;
calibration of full scale ,every level linearity;
new design,liquid crystal display,prevent slippery handle,overrange alarm;
display temperature ,viscosity ,rotate speed ,torsion in percentage , serial number of rotor and the maximum coscosity of seleted rotor in current speed on LCD;
unique structure design, insure useful life and
measurement accuracy;
ac/dc power supply in two design, lithium batteries continuous measuring eight hours without charging;
portable packaging , suitable for fluid viscosity measurement in several condition like outdoor ,laboratory ,factory assembly line and the scene
Optional Accessories(If you need them, pls inquiry and we’ll send offer):
Lift frame
Portable pole
ink ,glue ,latex ,solvent adhesive ,polymer,solution ,petroleum ,paint ,solvent ,cosmetic ,milk products ,pharmaceutical ,juice and so on
| Model | LPDV-1 | RPDV-1 | HPDV-1 |
| Measuring Range (mPa.s) | 25 - 150,000 | 50 - 300,000 | 200 - 1,200,000 |
| Rotating Speed (r/m) | 60,100,150,200 | 60,100,150,200 | 60,100,150,200 |
| Number of Rotor | B1,B2,B3,B4 four kinds of rotors | ||
| Accuracy | ±2.0% (full scale) | ||
| repeatability | 1.0% | ||
