1 year
other
China
NADE
NTV-79A
Electronic
1-1.5M
E,F,G
±1.0% of range
Product Description

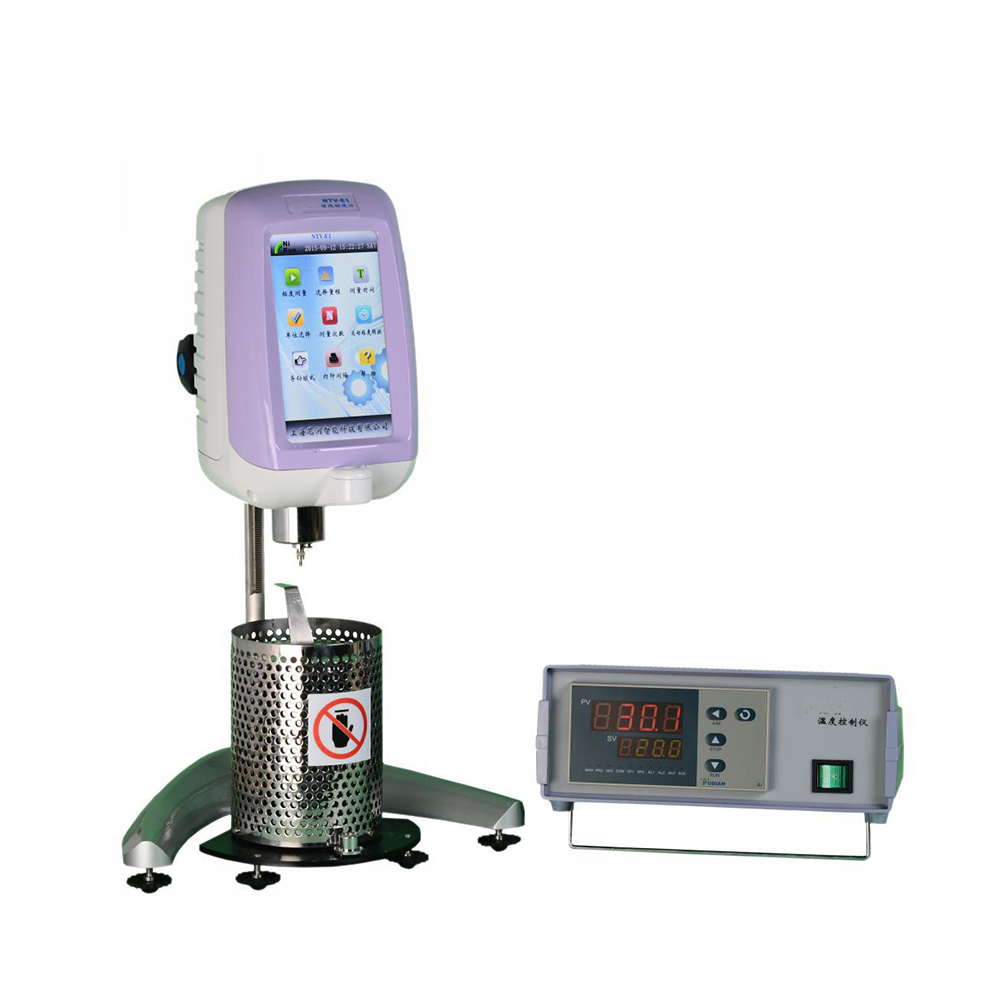

NADE DV-79 Digital Rotational Viscometer Price Paint Viscometer
NADE NTV-79 Series
Smart Touch Viscometer
Visual Intelligent Viscometer
1.7-inch touch screen with rich information,
And easy to operate
2.Anti-static shell
3.Build-in temperature probe
4.ARM chip processor: higher data processing speed
5.New designed durable sensor
6.Powerful human machine interface
7.Automatic switch between dynamic viscosity
and kinematic viscosity
8.Varies viscosity units and easy to switch
9.Humanized operation interface
10.Accompanied with detailed operation instruction
11.Display continuous change of viscosity
12.linear correction in whole range by computer
13.Wide range power supply: 100V- 240V
Remarkable anti-interference
Feature:
1.DvGather Software is for optional
2.Configurate RTD Temperature Probe
3.Stepping Motor means Accurate,reliable operation
4.Direct readout of all measurement parameters
5.Auto Range Showing
6.Time Function for measurement
7.Sound alarm at under 20% Torque
8.Linear calibration
9.Wide range power supply:100V-240V
Applications:
Printing ink, Mucilage, Emulsion,
Adhesives(solvent base), Polymer solutions,
Petroleum, Paints and coatings, solvents,Cosmetics, Milk and milk products,
Medicine, Juice, etc.
Thermostatic water bath
A container
Standard oils
Micro printer
NTV Series Viscosity Ranges(mPa.s):
1M=1million
| Model | NTV-79 | NTV-79A |
| Range(mPa.s) | 1-1M | 1-1.5M |
| RPM | 7.5,75,750 | 7.5rpm,75rpm,100rpm,200rpm,300rpm,400rpm, 500rpm,600rpm,700rpm,750rpm |
| Spindles | E,F,G, the three spindles are With B container for high viscosity(standard configuration) A,B,C,D, the four spindles are With A container for low viscosity(optional) | |
| Accuracy | ±1.0% of range | |
NTV-79:B container measuring range: 50 mPa. S - 1000000 mPa. S.
A container measuring range: 1 mPa. S - 5000 mPa. S.
NTV-79A:B container measuring range: 30mPa.s-1,500,000mPa.s.
A container measuring range: 1 mPa. S - 5000 mPa. S.
