China
NADE
5-1M or 50-10M
±1.0% of range
±0.2%( of full range)
Product Description

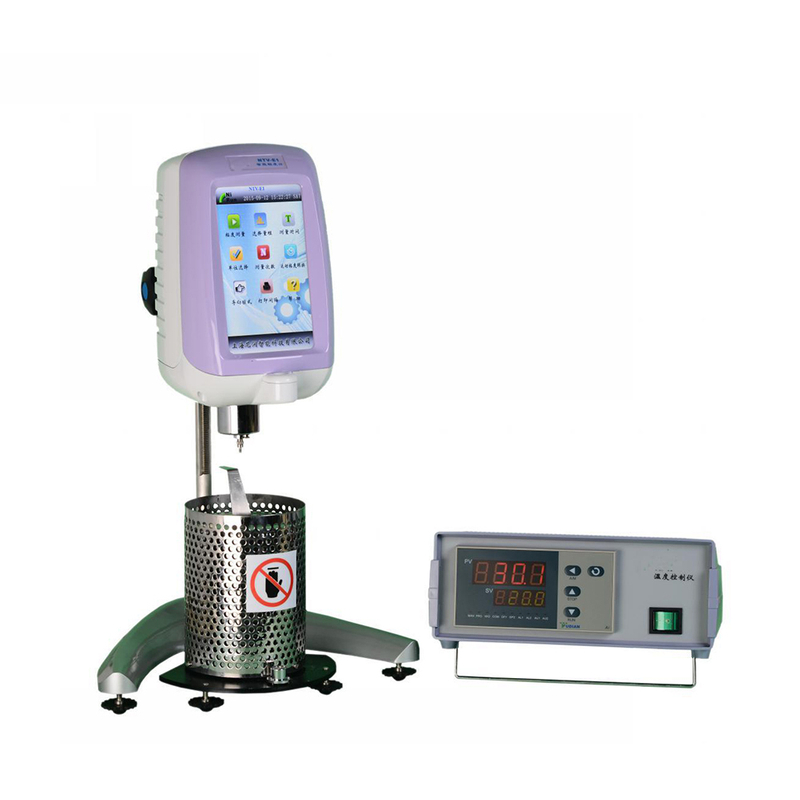

NADE Lab Rotational Digital High Temperature Viscometer Price NTV-AI500
1:7 inch touch screen with rich information and easy to operate
2:Anti-static shell and metal lifter
3:New designed durable axles
4:ARM chip processor for higher data processing speed
5:simple operation of temperature control
6:Humanized operation interface
7:Support external storage: single point, continuous and timing data
8:temperature and correction factor: protected by password
9:Rotate speed: variety of speed and easy to choose
10:Auto switch between dynamic and kinematic viscosity
11:Variety of viscosity units
12:Gigabit ethernet port to ensure rapid and stable data transfer
13:intelligent testing: easy to operate
14:Sample volume: very small
15:Sample container: thermal insulation and steady temperature control
16:Screen: flow profile displayed
17:Optional SNB software: record flow profile
18:Accompanied with detailed instruction
19:Linear calibration by a computer
20:Power supply: 100V-240V, powerful anti-interference
Applications:
hot melt adhesive, pitch, paraffin, high polymer
SNBGather Software
| Type | NTV-AI250 | NTV-AI500 |
| Range mPa.s | 5-1M or 50-10M | 5-1M or 50-10M |
| Temp range | Indoor temperature+5℃ to 250℃( or 500 ℃) | |
| Rotate speed (RPM) | 0.1-200 | |
| Spindles | SC4-21,27,28,29 four spindles Optional: SC4-14, 15, 16, 18, 25, 31, 34 | |
| Accuracy | ±1.0%( of full range ) | |
| Repeatability | ±0.2%( of full range) | |
| Supply | AC100-240V, 50Hz/60Hz. Output: DC12V1.5A | |
This series is an upgrade to SNB-AI viscometer.
