NADE LBJ-24 Total Radiation Sensor with hand-held data logger 0-2000W/m^2 for monitoring the environmental of agrometeorological

  • China
  • NADE
  • -40℃~50℃
  • ≤100%RH
  • ±5 %
  • 0.3~3μm
  • 0 ~2000W/m 2
  • a bout 350Ω
  • ≤ 35 seconds (99%)
  • 7 ~ 14 μV / w.m^2
  • ≤ ± 2%
  • ≤2%

Product Description

Product Description

The Agricultural Environment Monitor consists of hand-held data logger and different sensors. It can be connected to a host through a multi-channel hub, but also access to a plurality of the same or different types of sensors. The product is a device suitable for monitoring the environmental parameters of agrometeorological. It has USB data export function and can choose voice function, GPRS positioning function and GPRS unload function etc. It ultimately based on your needs to configure your desired function.

Feature

1.Low-power design, increase system reset protection against short-circuit power supply or external interference and damage, to avoid system crashes

2.Liquid crystal display screen, can display the current time, sensor measurements, storage capacity, battery life, GPS status, network status, etc.

3.Large-capacity lithium battery-powered and battery overcharge and over-discharge protection

4.The charger 5V1A is full of 2-3 hours

5.USB interface for data communication with the computer, you can export data, parameter configuration and other operations

6.Large-capacity data storage, the device comes with Flash can store 30,000 recent data and can unlimitedly store data by configuring the TF card. The data in the TF card and Flash are stored at the same time.

7.Agricultural environment monitor has a PC (Instrument cloud), the data in the TF card can be imported to PC Client Software by USB. And it can realize the function of data analysis, data export and cloud synchronization.

8.Environmental information parameter alarm settings is simple, quick

Specification

Working power

DC 6V~14V

Working current

<8. 5mA;

Weight

2.5kg

Size (length*width*height )

16 5mm×165m m×120mm

Ambient temperature

-40℃~50

Relative humidity

≤100%RH

Measurement accuracy

±5 %

Spectral range

0.3~3μm

Measuring range

0 ~2000W/m 2

Internal resistance

a bout 350Ω

Response time

≤ 35 seconds (99%)

Sensitivity

7 ~ 14 μV / w • m-2

Degree of stability

≤ ± 2%

Cosine response

≤7% (when the solar elevation angle 10 °)

Azimuth response error

≤5% (when the solar elevation angle 10 °)

Temperature characteristics

± 2% (- 10 ~ 40 )

Non linear

≤2%

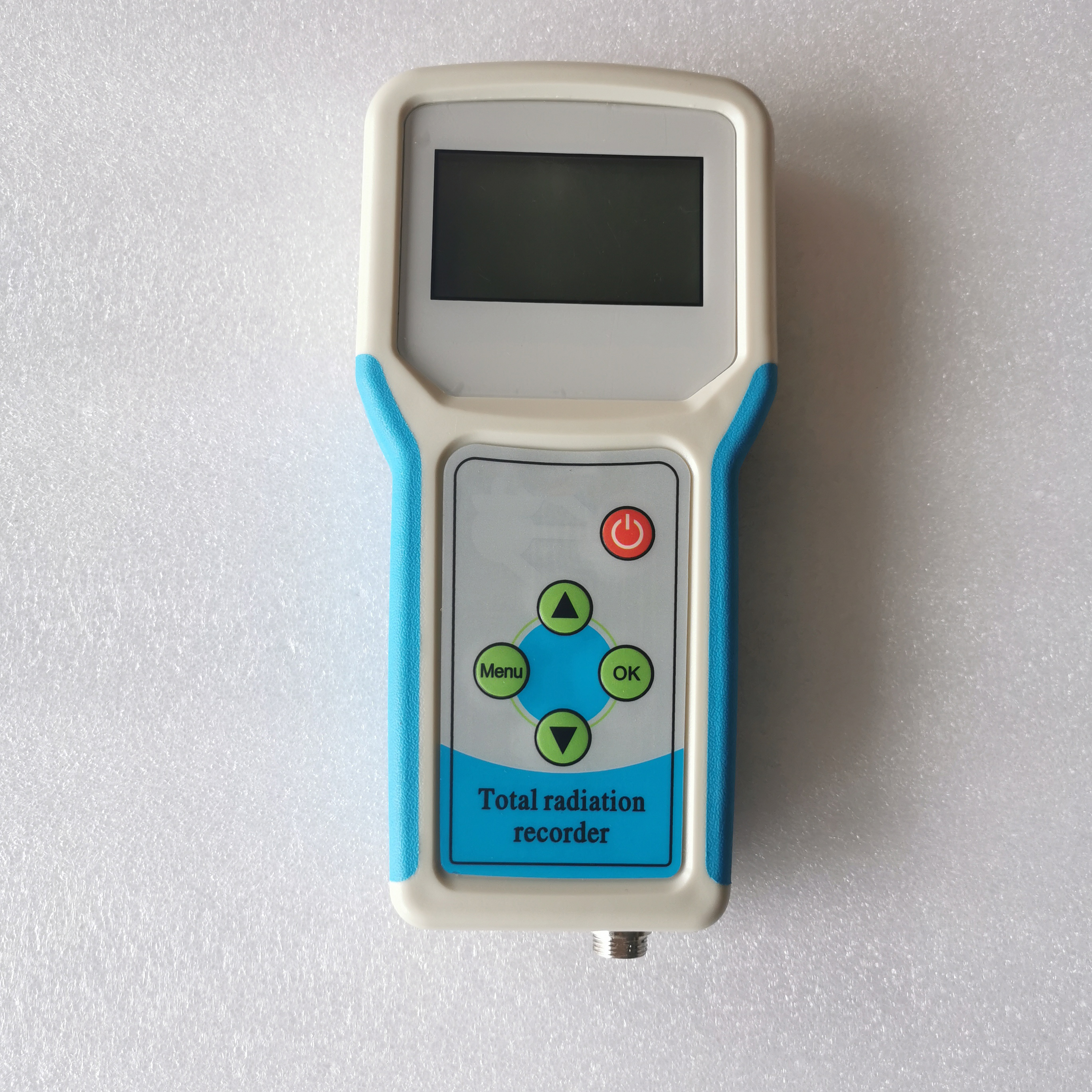

Real photos show

NADE LBJ-24 Total Radiation Sensor with hand-held data logger 0-2000W/m^2 for monitoring the environmental of agrometeorological

Packaging & Shipping

Our Packaging Details:

NADE LBJ-24 Total Radiation Sensor with hand-held data logger 0-2000W/m^2 for monitoring the environmental of agrometeorological

Our Shipping

NADE LBJ-24 Total Radiation Sensor with hand-held data logger 0-2000W/m^2 for monitoring the environmental of agrometeorological

Our Services

NADE LBJ-24 Total Radiation Sensor with hand-held data logger 0-2000W/m^2 for monitoring the environmental of agrometeorological

Company Information

NADE LBJ-24 Total Radiation Sensor with hand-held data logger 0-2000W/m^2 for monitoring the environmental of agrometeorological

NADE LBJ-24 Total Radiation Sensor with hand-held data logger 0-2000W/m^2 for monitoring the environmental of agrometeorological

FAQ
Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.

Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.

Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.

Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
