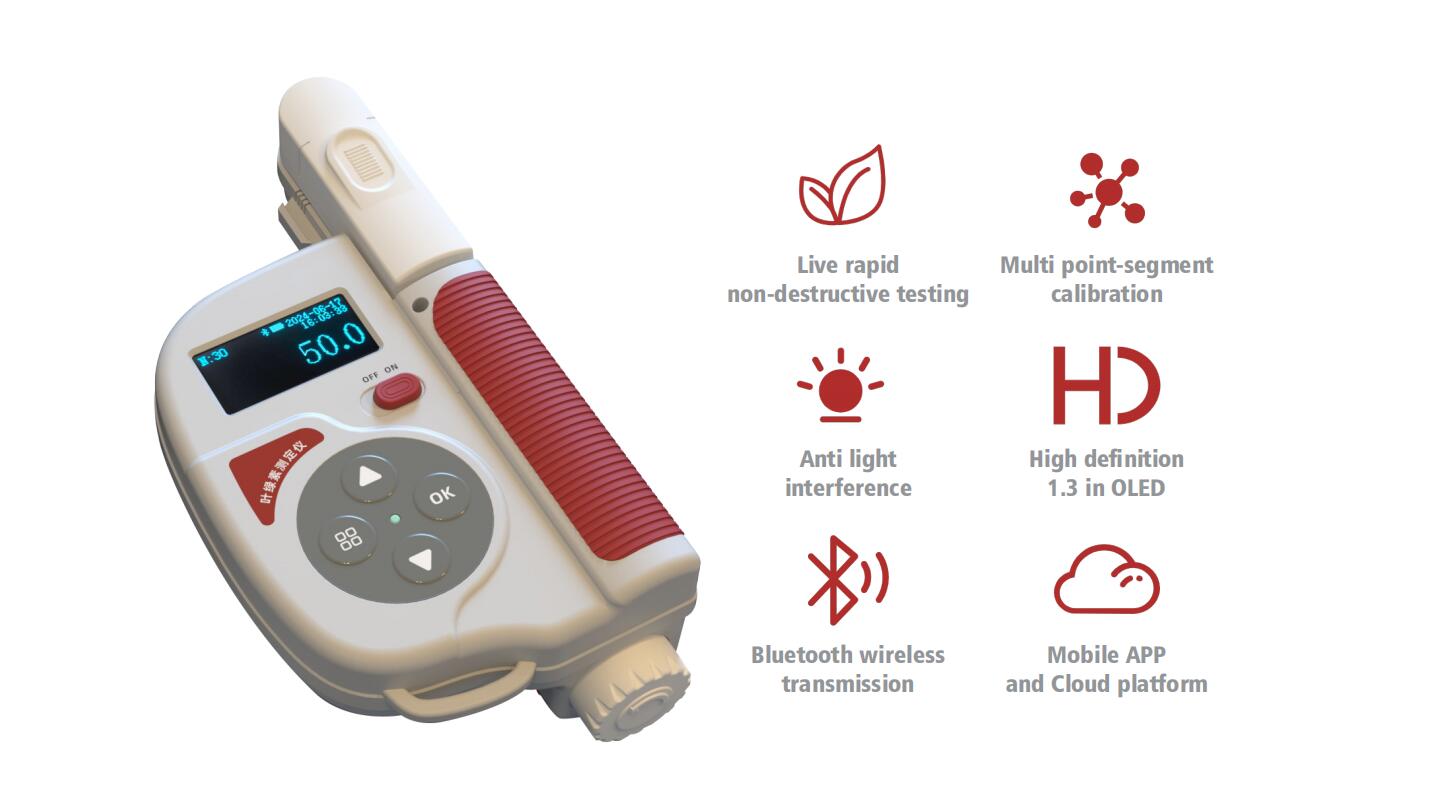

Plant Nutrition Analyzer TYS-B

Measuring Range:chlorophyll: 0.0~99.9SPAD
Leaf surface temperature : 10~99.9℃

Availability:
  • TYS-B

  • NADE

  • 1

  • CHINA

Product Description

TYS-BThe handheld chlorophyll analyzer can non-destructive detect the relative chlorophyll  content and leaf temperature value of leaves. By measuring chlorophyll content, the  efficiency of plant photosynthesis and the health status of leaves can be evaluated,  which helps to understand the growth and development laws of plants, optimize  plant cultivation techniques, and improve crop yields. Widely used in agricultural and  forestry related research institutions and universities for the study of plant physiology  and guidance of agricultural production.

tys

Specifications

Measuring Range
chlorophyll0.0~99.9SPAD
Leaf surface temperature10~99.9℃
Measurement accuracychlorophyll± 1.0 SPAD (SPAD values range from 0 to 50 at room temperature)
Leaf surface temperature±0.5℃
Repeatabilitychlorophyll± 0.3 SPAD(SPAD values range from 0 to 50 )
Leaf surface temperature±0.2℃
Measurement time  interval2 seconds
Measure area2mm*2mm
Power Supply2 1.5V dry batteries, capable of continuous measurement up to 5000 times
Data storage capacityHost 1000 pieces of data, unlimited storage in the instrument APP
