Product Description

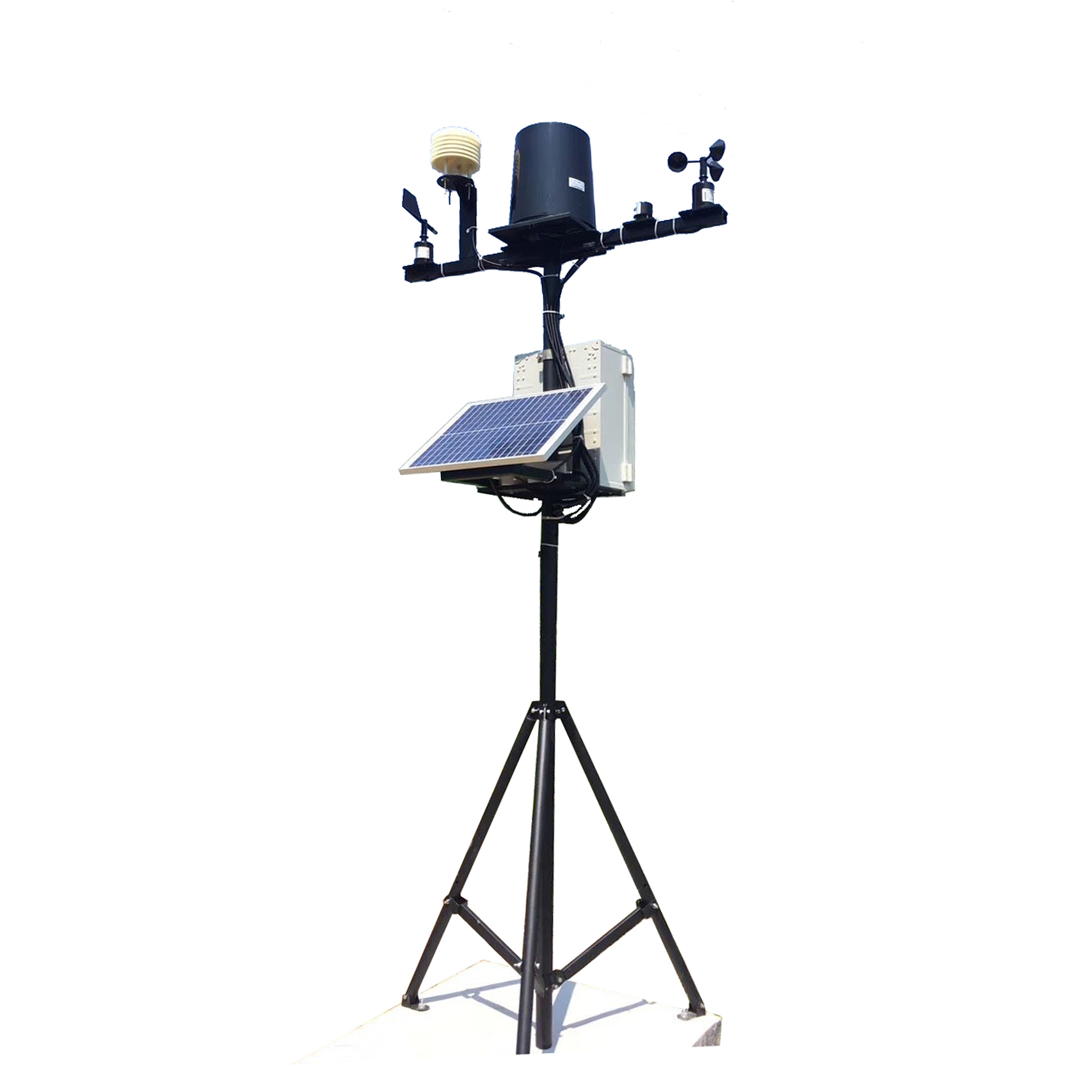

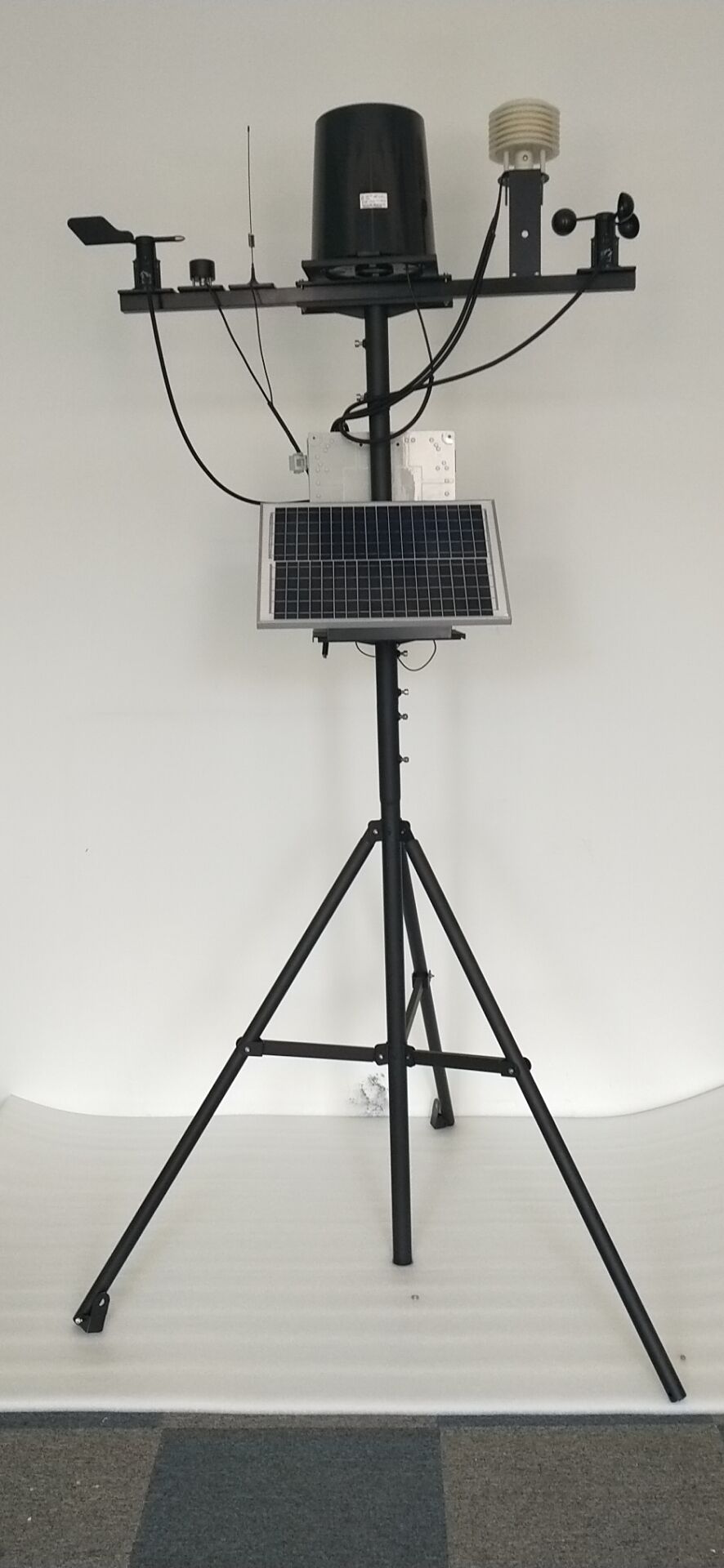

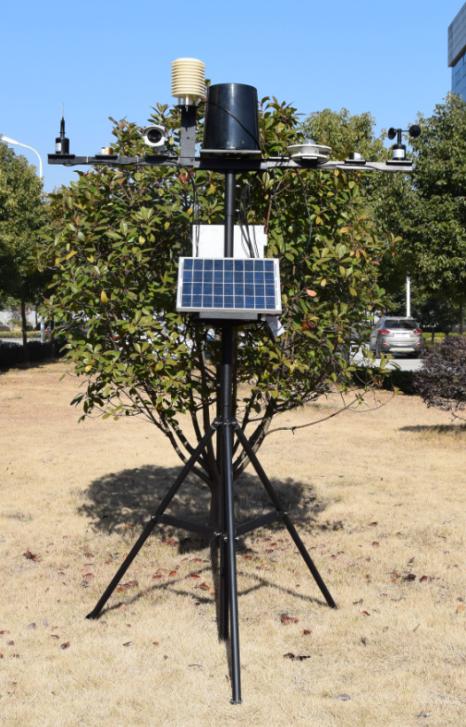

NL-5G Multiparameter Professional meteorological wireless automatic agricultura Weather Station Multi Sensor Selectable
The Agricultural Environment Monitor consists of hand-held data logger and different sensors. It can be connected to a host through a multi-channel hub, but also access to a plurality of the same or different types of sensors. The product is a device suitable for monitoring the environmental parameters of agrometeorological. It has USB data export function and can choose voice function. It ultimately based on your needs to configure your desired function.
It can optionally configure more than a dozen wired sensors, measurement accuracy and convenience
Low-power design, increase system reset protection against short-circuit power supply or external interference and damage, to avoid system crashes
Liquid crystal display screen,can display the current time,sensor measurements, storage capacity, battery life, network status, etc.
Large-capacity lithium battery-powered and battery overcharge and over-discharge protection
The charger 5V1A is full of 2-3 hours
USB interface for data communication with the computer, you can export data, parameter configuration and other operations
Large-capacity data storage, the device comes with Flash can store 30,000 recent data and can unlimitedly store data by configuring the TF card. The data in the TF card and Flash are stored at the same time.
Agricultural environment monitor has a PC (Instrument cloud), the data in the TF card can be imported to PC Client Software by USB. And it can realize the function of data analysis, data export and cloud synchronization.
Environmental information parameter alarm settings is simple, quick
Attention:
1. In order to prolong the life of battery, manually shut down the device if you don’t use it.
Solar power supply: 10WP
Standby power: DC-9V/ 1A
Watt: ≤ 1.5W
Coordinate accuracy: 3 decimal places ± 0.05 minutes; N: 0-90 ° E0-180 °
Capacity: 1M (local storage) + 4G (SD CARD)
Technical parameters of sensors :
- Temperature:Range: -40°C-120°C
Resolution: 0.1 ℃
Accuracy: ± 0.4 ℃
- Humidity Range: 0-100%RH
- Illuminance:Range: 0-200000LUX
Resolution:1LUX
Accuracy: ±2%
- Rainfall:Range:0-6553mm
Resolution:0.1mm
Accuracy: ±0.1mm
- Wind Speed:Range: 0-65m/s
Resolution:±0.1m/s
Accuracy: ±(0.13-0.015)m/s
- Wind Direction:Range: 0-360°
Resolution:1°
Accuracy: ±3°
Other optional sensors: soil moisture, soil temperature, atmospheric pressure, radiation, dew point, direct radiation, sunlight, photosynthetically active radiation, total radiation, ultraviolet radiation, evaporation, carbon dioxide and other sensors.
