NADE DSX Electric Sieve Shaker

  • 1 year
  • other
  • Zhejiang, China
  • NADE
  • DSX
  • Electronic
  • (115±5) r/min
  • 2.smooth sieve(60±2%) s;Inverse sieve (60±2%) s
  • 3.Approx. 200 - 220mm
  • 100 mm
  • 500g
  • AC (220±22) V, 50Hz, 0.2A
  • 350*330*200mm
  • 10 kg
  • 3 layers

Product Description

Product Description

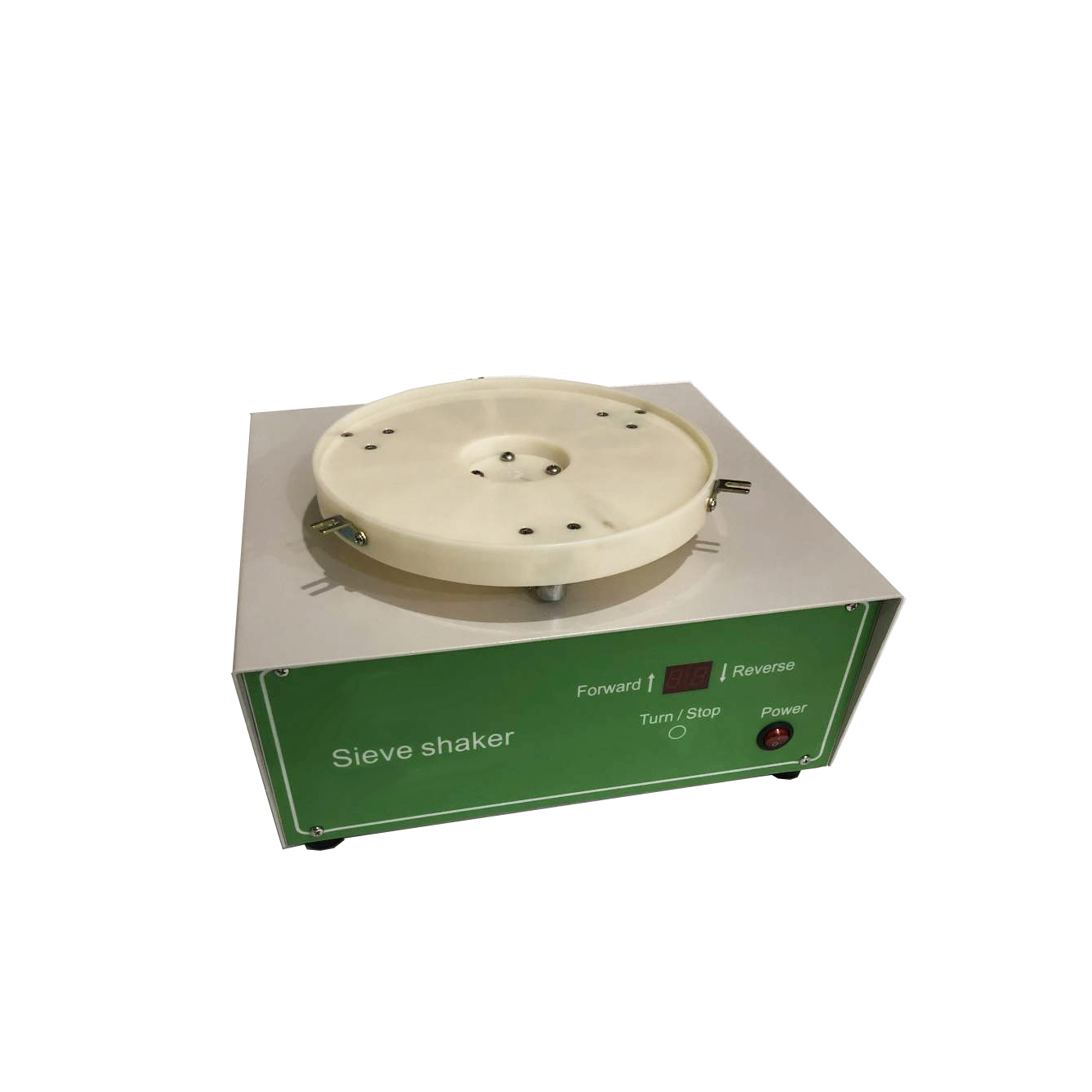

NADE DSX Electric Sieve Shaker

The Sieve shaker is a professional equipment developed and produced by our company according to the national standard of GB5494-2008 "Inspection of Impurities and Imperfect Grains of Grain and Oil". This equipment is used in conjunction with grain selection and sieving. It is suitable for the sieveing and determination of grain and oilseeds. It is a necessary sieving and grading equipment for agricultural breeding.

Feature

The equipment uses a desktop structure, the worm gear is used for variable speed transmission, the Sieve body is supported by three points plane, and the plane rotates through the eccentric link mechanism. The control part adopts single-chip microcomputer, forward 60 (0 ~ 60) seconds and then reverse 60 (60 ~ 0) seconds, digital display, the control of forward and reverse time has high precision, reliable performance, and can work repeatedly without turning off the power.

Specification

1. Speed: (115±5) r/min

2. Sieving time: smooth sieve(60±2%) s;Inverse sieve (60±2%) s

3. Grain sieve diameter: Approx. 200 - 220mm

4. Sieving range: 100 mm

5. Maximum sieving capacity: 500g

6. Power source: AC (220±22) V, 50Hz, 0.2A

7. Dimensions: 350×330×200

8. Weight: 10 kg

9. Sieving frame level: 3 layers

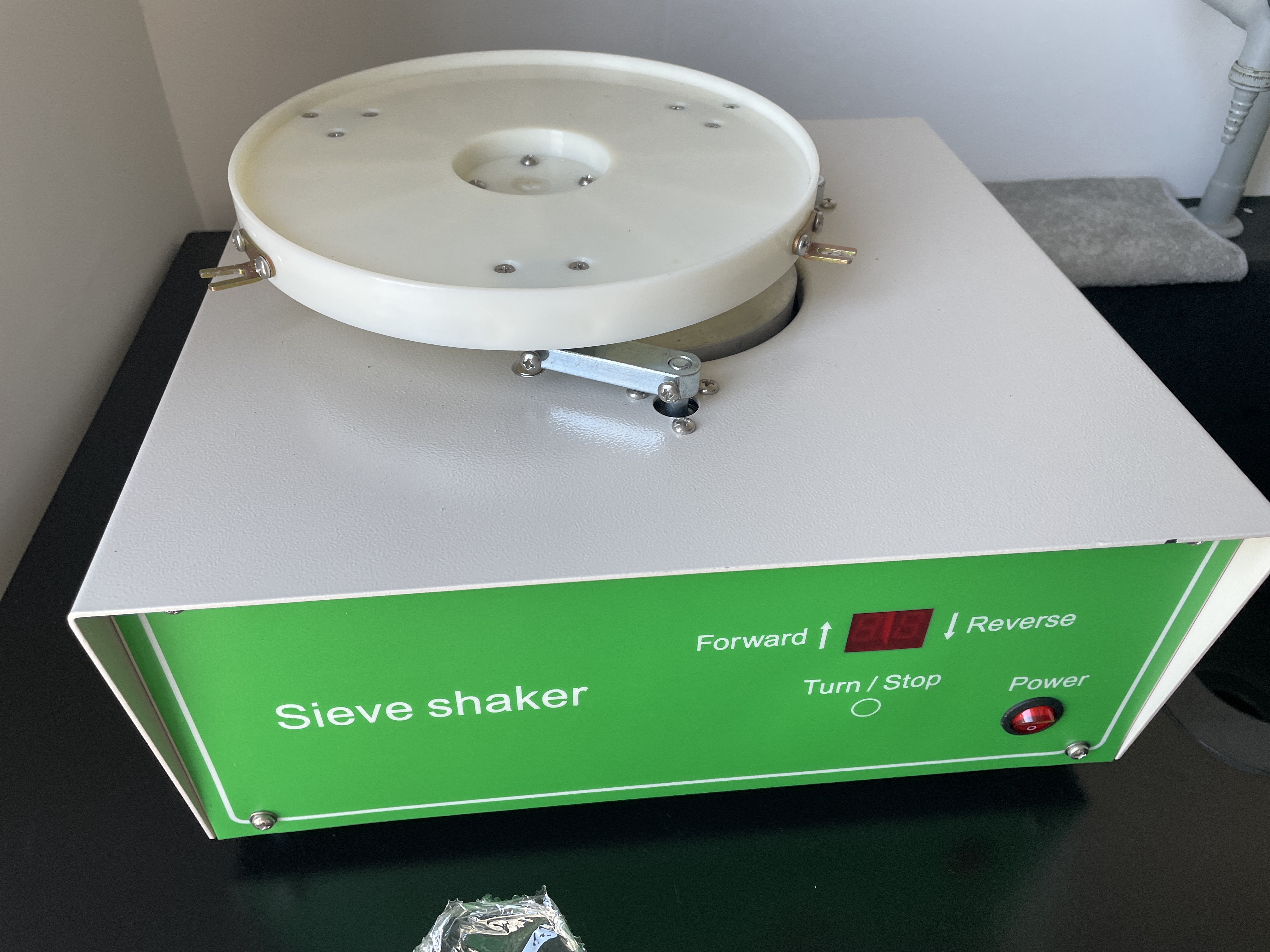

Real photos show

NADE DSX Electric Sieve Shaker NADE DSX Electric Sieve Shaker

Packaging & Shipping

Our Packaging Details:

NADE DSX Electric Sieve Shaker

Our Shipping

NADE DSX Electric Sieve Shaker

Our Services

NADE DSX Electric Sieve Shaker

Company Information

NADE DSX Electric Sieve Shaker

NADE DSX Electric Sieve Shaker

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
