ph meter
Zhejiang, China

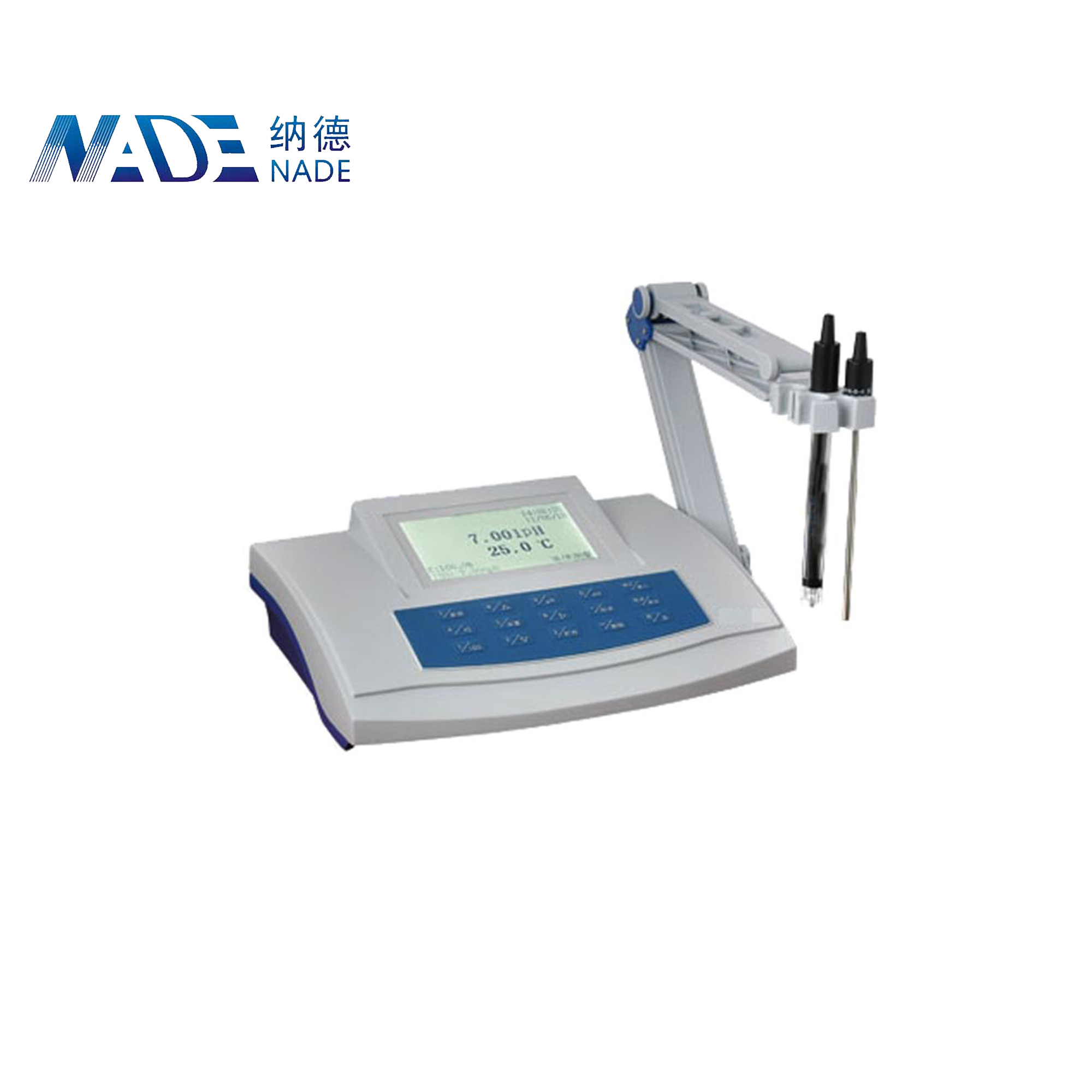

Nade PH METER
PHSJ-3F
±0.01pH ±1bit/3h
0.0~100.0℃
-2 to 20
±1999.9
Product Description
1. LCD display, English operation system for easy use
2. All-round GLP operation design and self-inspection function
3. Automatic/manual temperature compensation in wide range, self-calibration, self-calculation of electrode percentage of theoretical slope
4. Test results can be stored, deleted, viewed and printed. The amount of data can reach the maximum of 200 sets.
5. Five types of pH buffer solution can be chosen to conduct automatic calibration (one point or two points)
6. It has RS-232 interface, and it can be connected to TP-16 printer. Also, the interface can be used to connect data collecting software and computer.
7. It can be used to measure pH value of ultrapure water, pure water and boiling water by adjusting equipotential point and choosing specific electrode.
8. It is equipped with E-201-C combined electrode and T-818-B-6 temperature electrode.
| Measuring range | PH | -2.00~20.00 |
| mV | -1999~1999 | |
| Temperature | -5.0~135.0°c | |
| Resolution | PH | 0.01 |
| mV | 1 | |
| Temperature | 0.1°c | |
| Accuracy | PH | +/- 0.01Ph +/-1bit |
| mV | +/- 0.1%(FS) | |
| Temperature | +/-0.3 °c +/- 1bit | |
| Input impedance | >=1x1012 Ω | |
| Stability | (+/-0.01pH+/- 1byte)/3h | |
| Range of temperature compensation | Automatic/manual (-5.0~135.0) °c | |
| Power | DC power (9V DC, 500Ma, inside positive and outside negative) | |
| Dimension | 280x210x90mm | |
| Net Weight | 1KG | |
| Gross Weight | 2.5kg | |
| Package Size | 340X270X280mm | |
