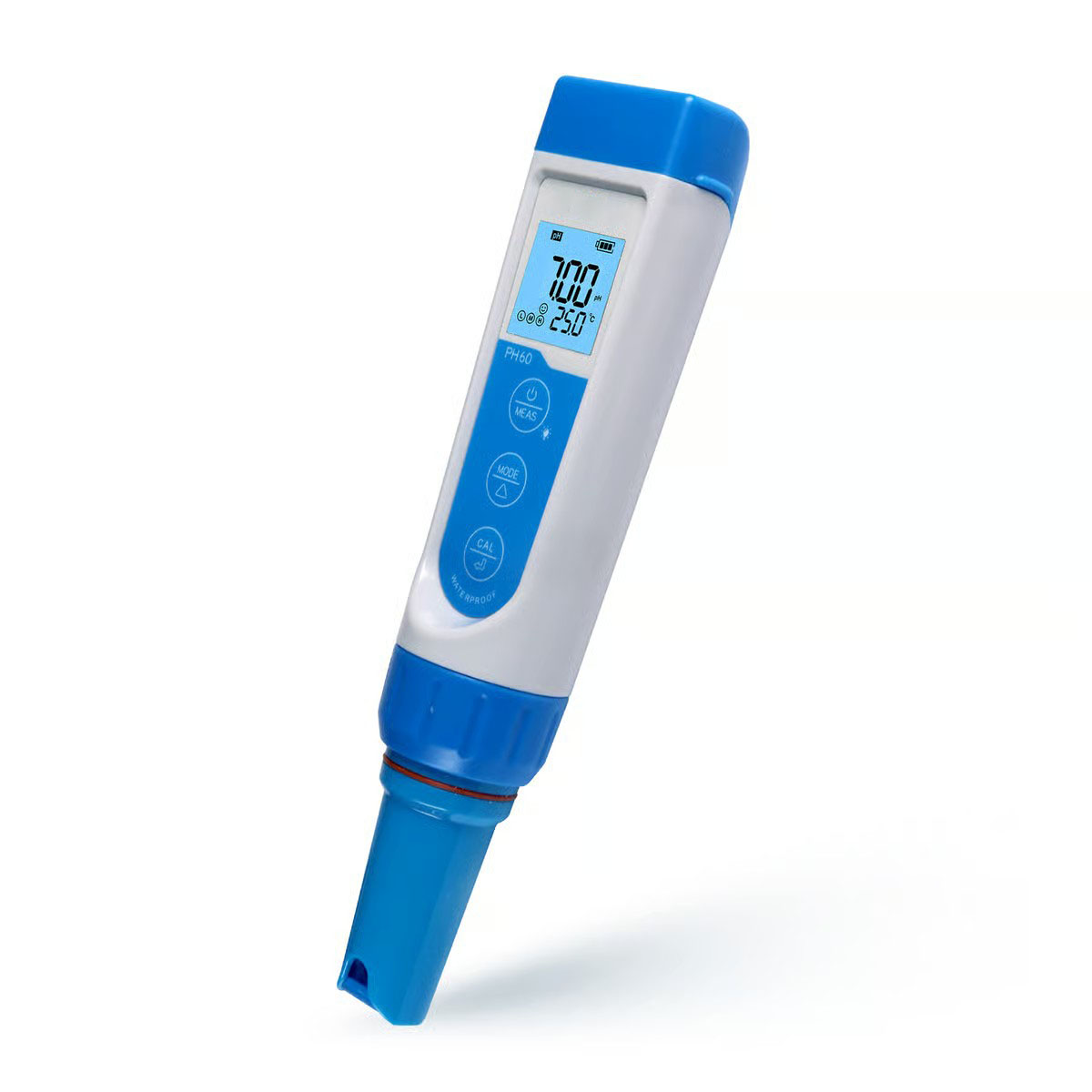

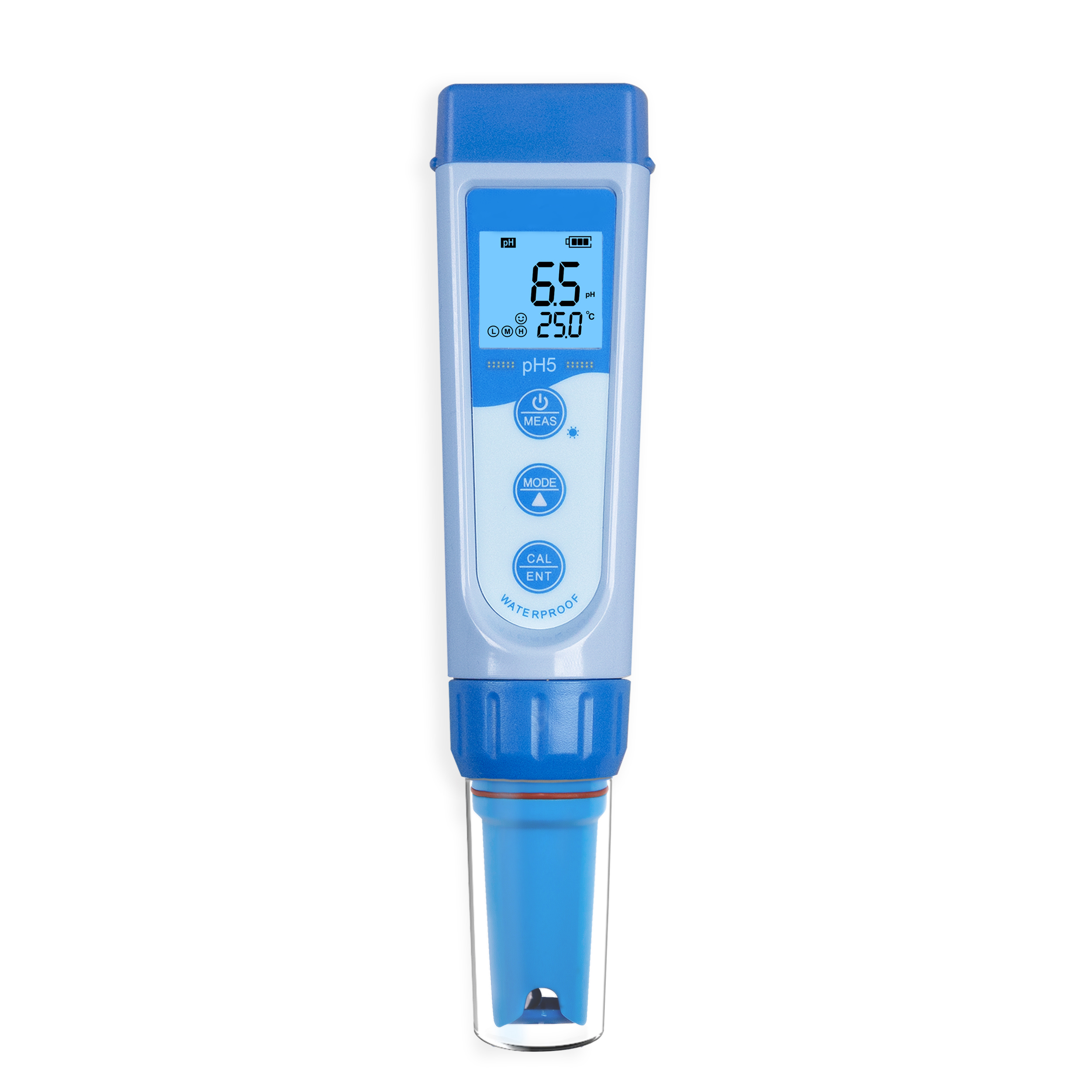

PH5 Functional Pen-Type pH Meter

pH range:-2.00 to 16.00 pH
pH Accuracy: ±0.01 pH ±1 digit
ORP (mV) range: ±1000 mV
Temp. range: 0 to 50°C
Availability:
Inquire

  • PH5

  • NADE

  • DC3V, AAA batteries*4

  • 1

  • 1 year

  • China

Product Description

PH5 P5

PH5 Functional Pen-Type pH Meter

Suitable for routine pH testing of aqueous solutions, applicable in scenarios such as hydroponics, aquaculture, swimming pools and hot springs, water treatment, and industrial cooling towers. It features functions including automatic temperature compensation, automatic calibration, and self-diagnosis, effectively addressing common issues encountered during calibration and measurement.


Features:

* Easy Auto Calibration with buffer recognition; Auto Temp. Compensation (ATC) ensures accuracy in variant temperatures (0-50.0°C); Accuracy: ±0.01 pH, 0.5°C, Range: -2.00 to 16.00 pH

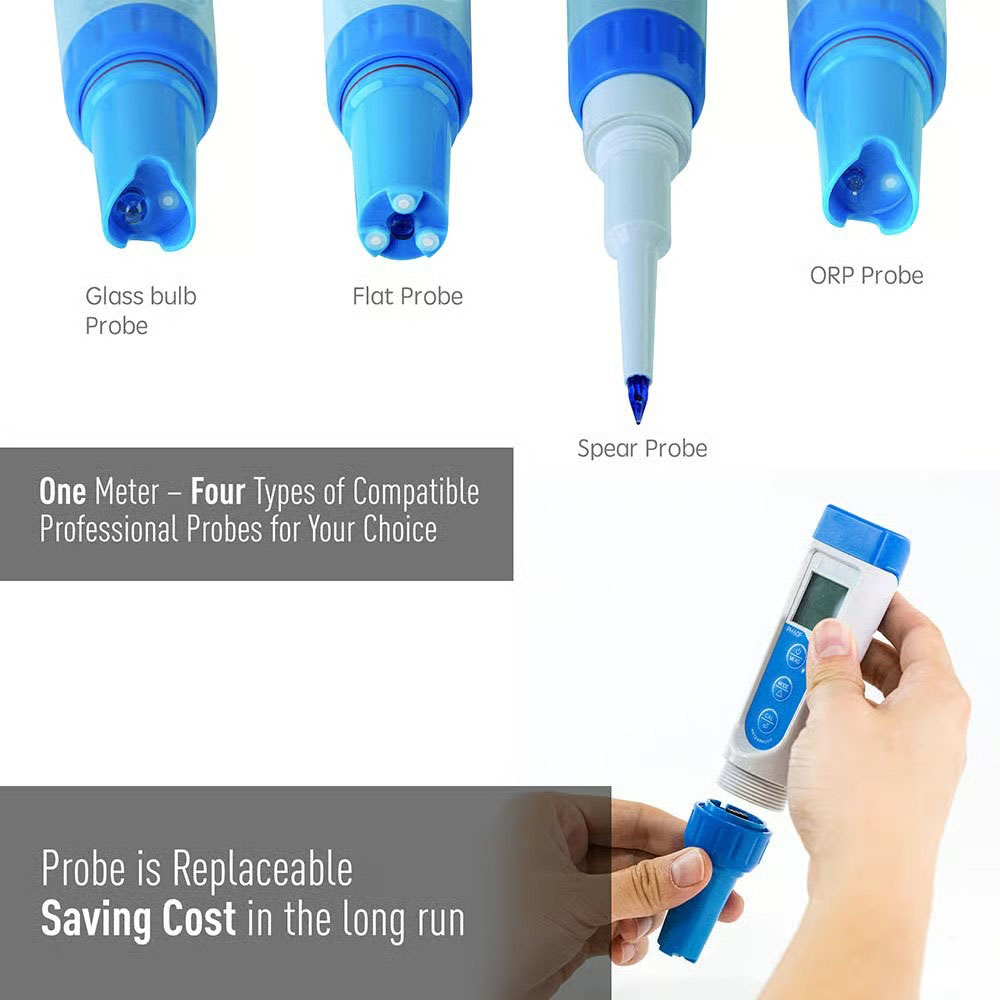

* Compatible with four types of replaceable probes depending on your specific testing need (PH5S, PH5F, ORP5, EC5 and PC5)
* Auto. recognition of stable values (optional Auto HOLD function available) improves consistency so you don't have to guess when to manually hold measurement
* LARGE CLEAR screen with 3 backlit color (indicating 3 different modes), dual display of temp./pH, and reminders of completed calibrations and stable readings
* COMPLETE KIT with READY-TO-USE calibration solutions, calibration bottles, storage solutions, AAA batteries, and a lanyard all in a premium portable carrying case




Application

SX610

Specification

Model

PH5









pH

Range

-2.00 to 16.00 pH

Resolution

0.01/0.1 pH

Accuracy

±0.01 pH ±1 digit

Calibration Points

Automatic 1 to 3 points (recognizes 5 types: 7.00, 4.00, 10.01, 1.68, 12.46)

Temperature Compensation

Auto Temperature Compensation
0 to 50°C (32 to 122°F)



ORP (mV)

Range

±1000 mV

Resolution

1 mV

Accuracy

±0.2% F.S



Temp.

Range

0 to 50°C (32 to 122°F)

Resolution

0.1°C

Accuracy

±0.5°C



LCD

3-Color Backlit LCD, 180° Viewing Angle
Blue: Measurement Mode; Green: Calibration Mode;
Red: Heads-Up Mode

Reading Lock

HOLD

Stable Reading Indication

Smiley Face icon

Low-Battery Warning

Battery icon flashing, reminder of battery replacement

Self-Diagnosis

Yes

Heads-Up Function

Yes

Auto. Power-Off

Yes, auto power-off in 8 minutes without operation

Waterproof Rating

IP67; Floatable

Power

DC3V, AAA batteries*4

Battery Life

Continuous operation up to 2000 hours

Dimensions& Weight

Tester: (40*40*178) mm/ 133g
With case_(255*210*50) mm/ 700g
