ORP5 ORP Pocket Tester

ORP (mV) range: ±1000 mV
ORP (mV) accuracy: ±0.2% F.S
Temp. range: 0 to 50°C
Display: 3-Color Backlit LCD
Availability:
  • ORP5

  • NADE

  • DC3V, AAA batteries*4

  • 1

  • 1 year

  • China

Product Description

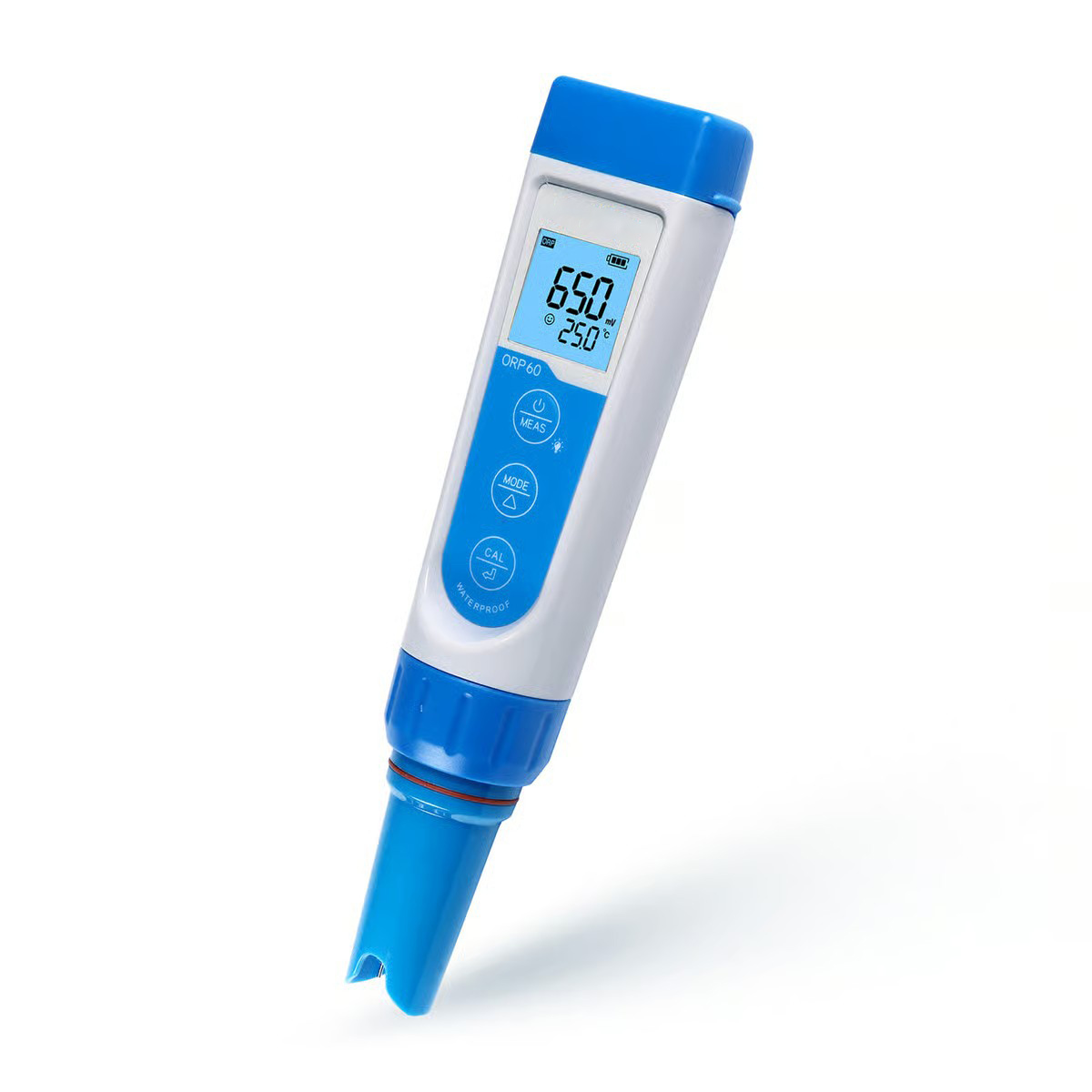

orp5-side

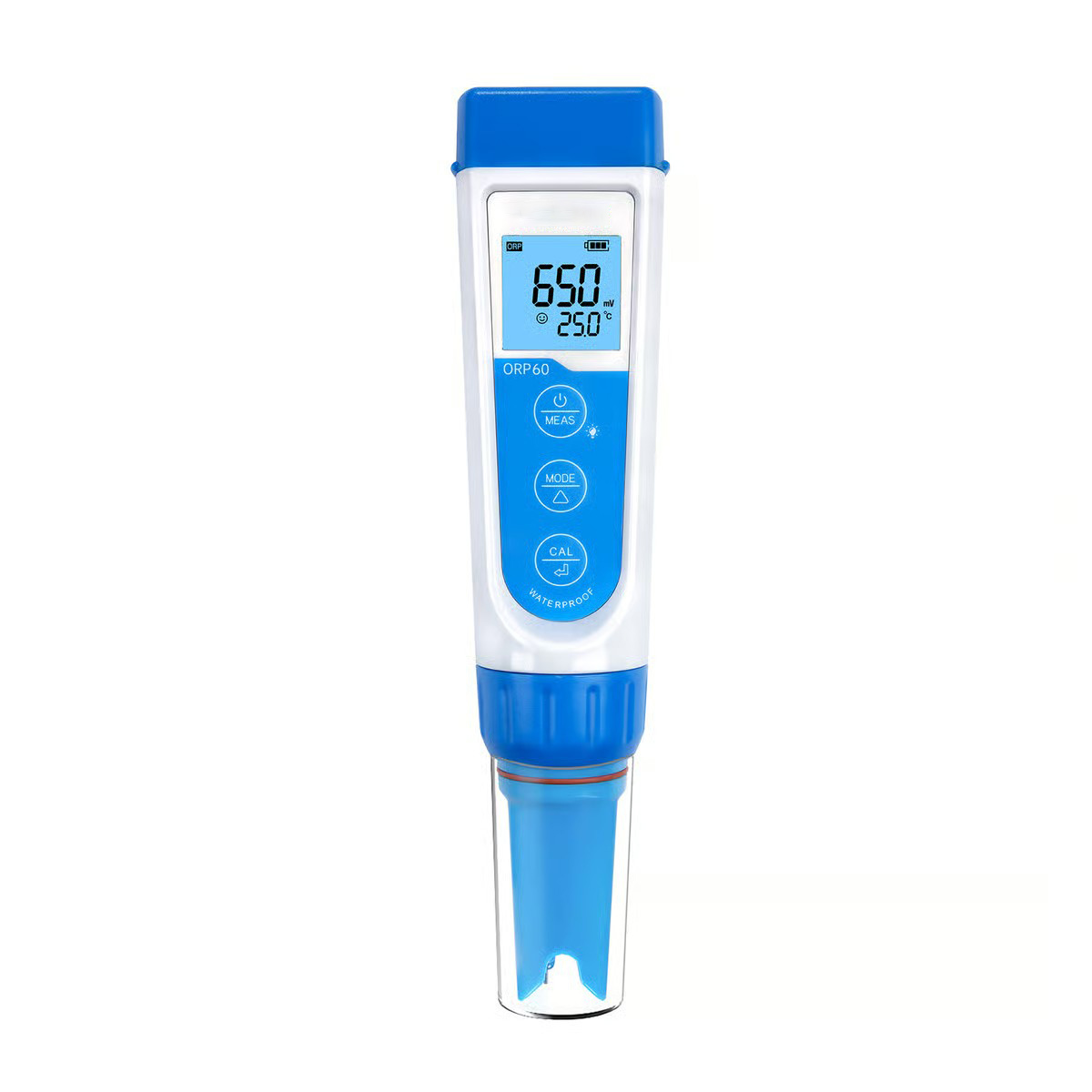

ORP5 Premium ORP Pocket Tester

ORP5 tester is designed for reliable ORP (redox) monitoring in regular water solutions e,g, pools and water treatment. The

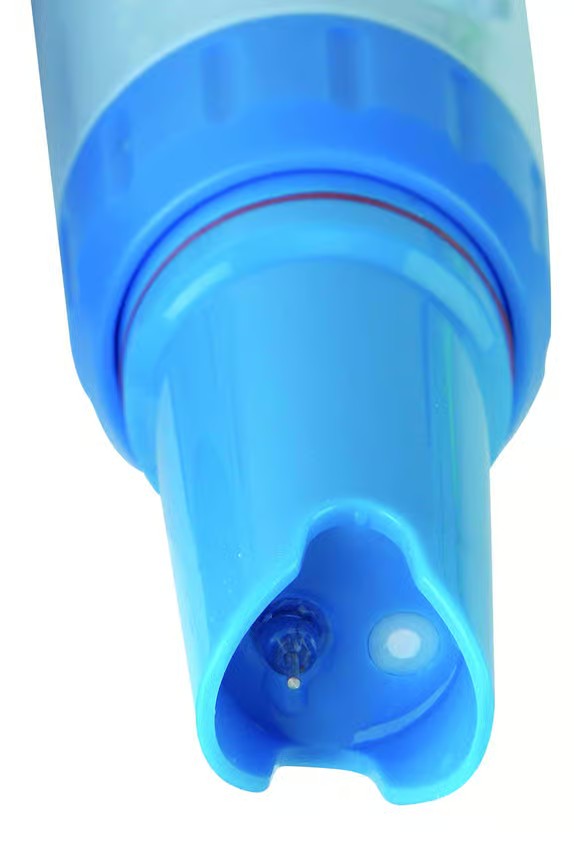

platinum ORP probe is replaceable and easy to install, so you don't have to buy a whole new meter once the probe is aged.



Manual Calibration with 222 mV standard in the kit. 1 mV/±0.2% F.S, 0.5°C accuracy with -1000 to 1000 mV measuring range, an indication of stable values (optional auto hold function available) improves consistency, saving you the trouble of guessing when to manually hold measurement (with optional auto hold function). A Large clear 180° viewing angle screen with 3 backlit colors (blue for measuring mode, green for calibration mode, red for warnings), it supports dual display of temperature/mV value and stable readings (with a smiley face).

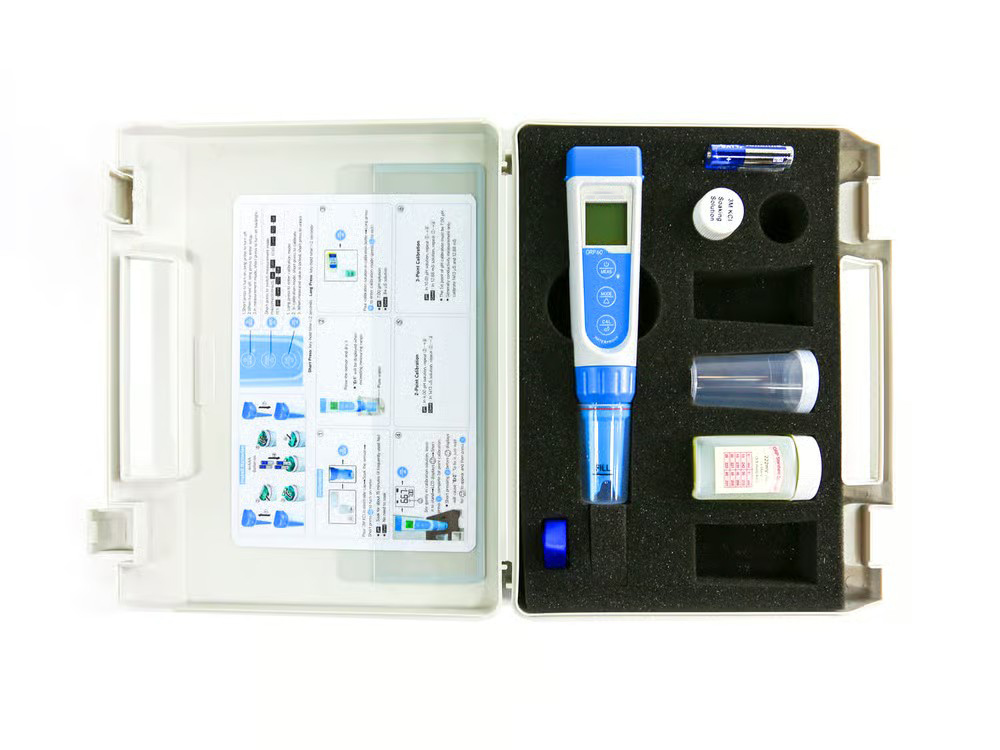

Comes with a complete kit of premixed standard solution (222 mV), soaking solutions (KCL), AAA batteries, and a lanyard all in a portable carrying case. Easy menu setting, customizing your tester according to your needs. IP67 water-proof and dust-proof, floats on water so you don't have to worry if dropped in water by accident. Longest 2000 hours' continuous operation (without backlit) powered by 4 AAA batteries (with low power warning and auto power off in 8 min if no operation).


Features:

* Calibration mode available for ORP at different temperatures.
* Replaceable ORP Platinum Probe, easy to install so that you don't have to buy a whole new meter once the probe retires
* Auto-recognition of stable values (optional auto hold function available) improves consistency so you don't have to guess when to manually hold measurement
* LARGE CLEAR LCD with 3 backlit colors (indicating 3 different modes), dual display of ORP and temperature, and indications of completed calibrations and stable readings
* COMPLETE KIT with ready-to-use calibration solutions, a calibration bottle, storage solutions, AAA batteries, and a lanyard all in a premium portable carrying case





Application

Regular water solution testing, such as pools and spas, hydroponics, tap water, drinking water, water treatment, aquaculture, etc.

SX610

Specification

Model

ORP5



ORP (mV)

Range

±1000 mV

Resolution

1 mV

Accuracy

±0.2% F.S



Temp.

Range

0 to 50°C (32 to 122°F)

Resolution

0.1°C

Accuracy

±0.5°C



LCD

3-Color Backlit LCD, 180° Viewing Angle
Blue: Measurement Mode; Green: Calibration Mode;
Red: Heads-Up Mode

Reading Lock

HOLD

Stable Reading Indication

Smiley Face icon

Low-Battery Warning

Battery icon flashing, reminder of battery replacement

Self-Diagnosis

Yes

Heads-Up Function

Yes

Auto. Power-Off

Yes, auto power-off in 8 minutes without operation

Waterproof Rating

IP67; Floatable

Power

DC3V, AAA batteries*4

Battery Life

Continuous operation up to 2000 hours

Dimensions& Weight

Tester: (40*40*178) mm/ 133g
With case_(255*210*50) mm/ 700g
