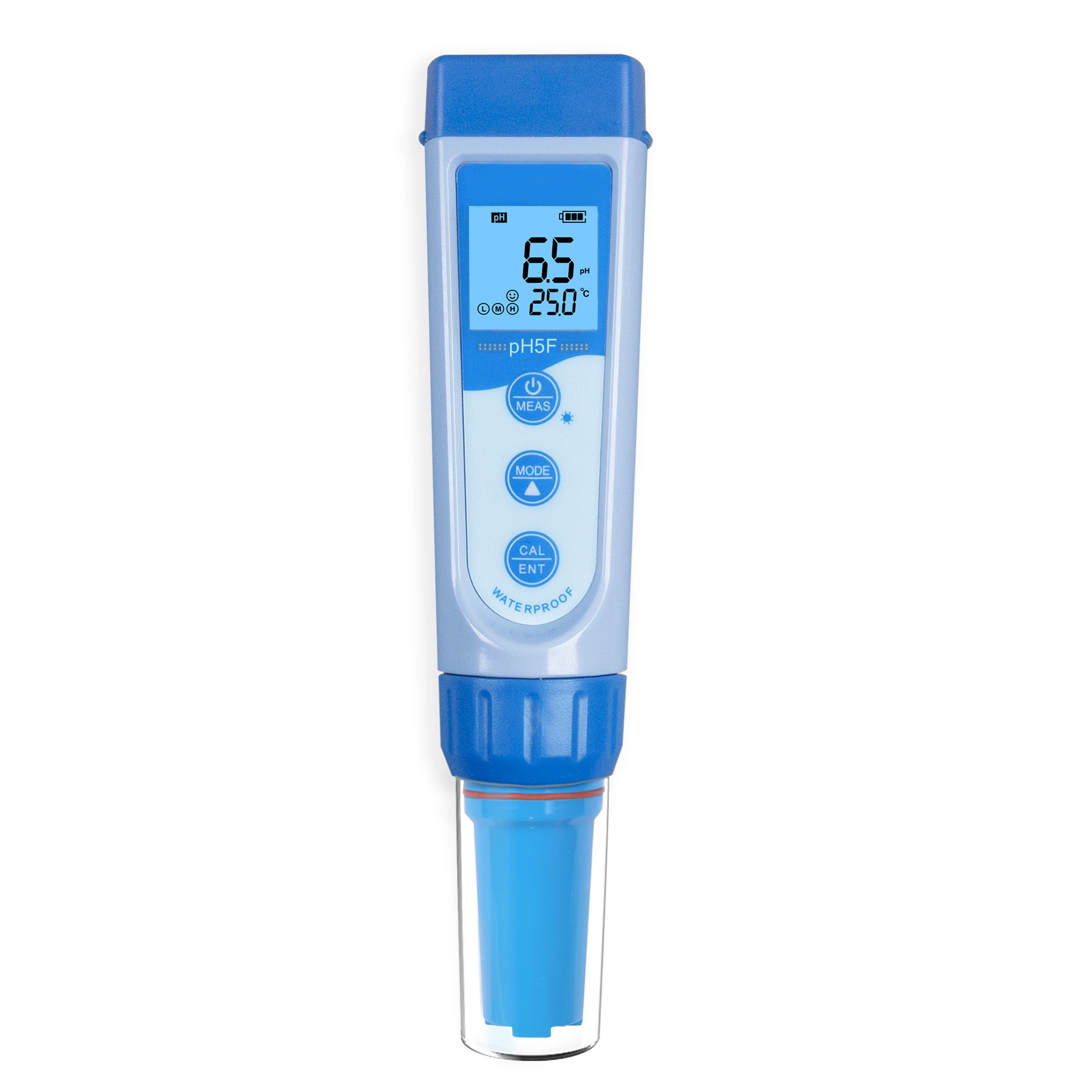

PH5F Flat Pocket pH Tester

pH range: -2.00~16.00pH
Accuracy: ±0.01 pH ±1 digit
ORP (mV) range: ±1000 mV
Temp. range: 0 to 50°C (32 to 122°F)
Availability:
  • PH5F

  • NADE

  • DC3V, AAA batteries*4

  • 1

  • 1 year

  • China

Product Description

ph5f-main

PH5F Flat Pocket pH Tester

Equipped with a flat-surface pH electrode, it is suitable for pH testing of surfaces and small-volume samples (such as skin, paper, fabrics, leather, etc.) and micro-sample testing. It is also suitable for routine pH testing of aqueous solutions, applicable in scenarios including hydroponics, aquaculture, swimming pools and hot springs, water treatment, and industrial cooling towers.


Features:

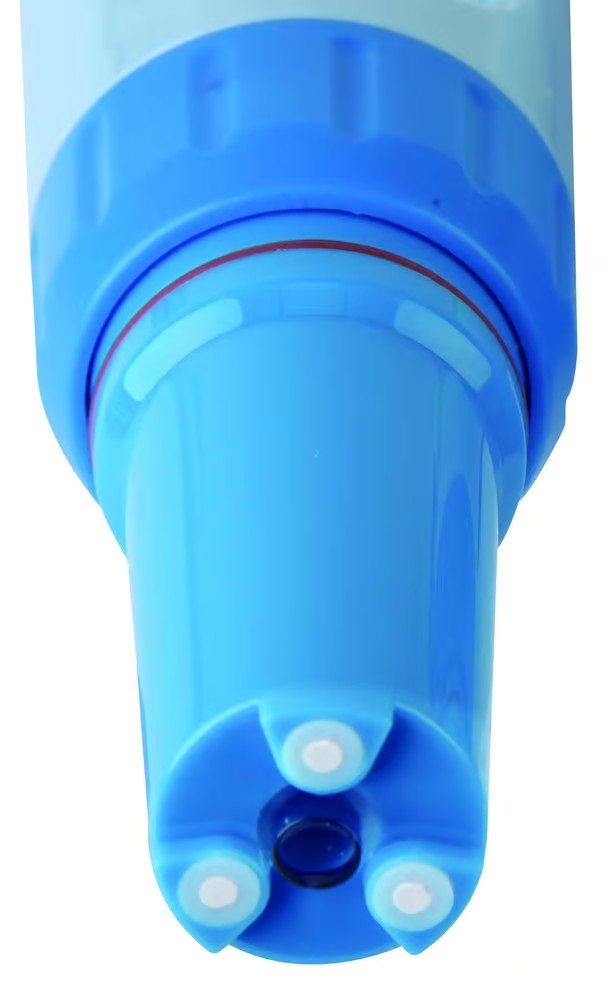

* Easy-to-install Replaceable FLAT sensor, designed for Skin, Fabrics, Paper, and other flat surface pH testing, also works great for small-volume and regular liquid pH measurement
* Easy Auto Calibration with auto buffer recognition (1 to 3 points); Auto Temperature Compensation (ATC)
* Unique High/Low Value HEADS-UP function, instantly reminding you of any results that need your attention with a red backlight
* LARGE CLEAR LCD with 3 backlit color (indicating 3 different modes), DUAL display of temp./pH, and REMINDERS of completed calibrations and stable readings

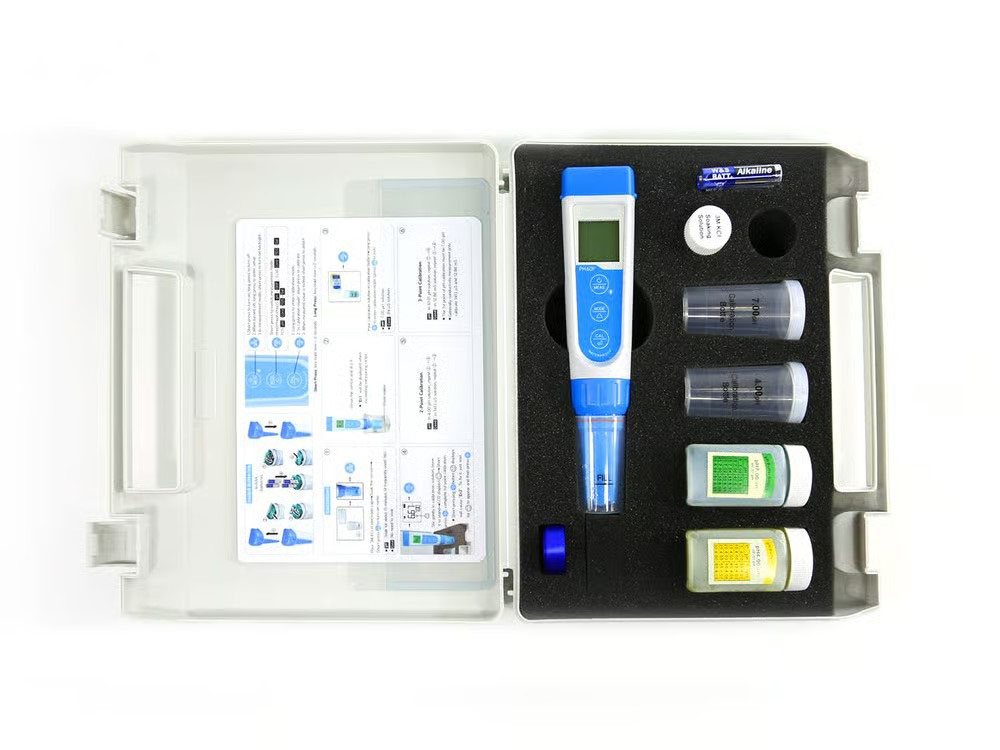

* COMPLETE Kit with READY-TO-USE calibration buffer solutions, calibration bottles, storage solutions, AAA batteries, and a lanyard all in a portable carrying case



Application

ph5f-application

Specification

Model

PH5F









pH

Range

-2.00 to 16.00 pH

Resolution

0.01/0.1 pH

Accuracy

±0.01 pH ±1 digit

Calibration Points

Automatic 1 to 3 points (recognizes 5 types: 7.00, 4.00, 10.01, 1.68, 12.46)

Temperature Compensation

Auto Temperature Compensation
0 to 50°C (32 to 122°F)



ORP (mV)

Range

±1000 mV

Resolution

1 mV

Accuracy

±0.2% F.S



Temp.

Range

0 to 50°C (32 to 122°F)

Resolution

0.1°C

Accuracy

±0.5°C



LCD

3-Color Backlit LCD, 180° Viewing Angle
Blue: Measurement Mode; Green: Calibration Mode;
Red: Heads-Up Mode

Reading Lock

HOLD

Stable Reading Indication

Smiley Face icon

Low-Battery Warning

Battery icon flashing, reminder of battery replacement

Self-Diagnosis

Yes

Heads-Up Function

Yes

Auto. Power-Off

Yes, auto power-off in 8 minutes without operation

Waterproof Rating

IP67; Floatable

Power

DC3V, AAA batteries*4

Battery Life

Continuous operation up to 2000 hours

Dimensions& Weight

Tester: (40*40*178) mm/ 133g
With case_(255*210*50) mm/ 700g
