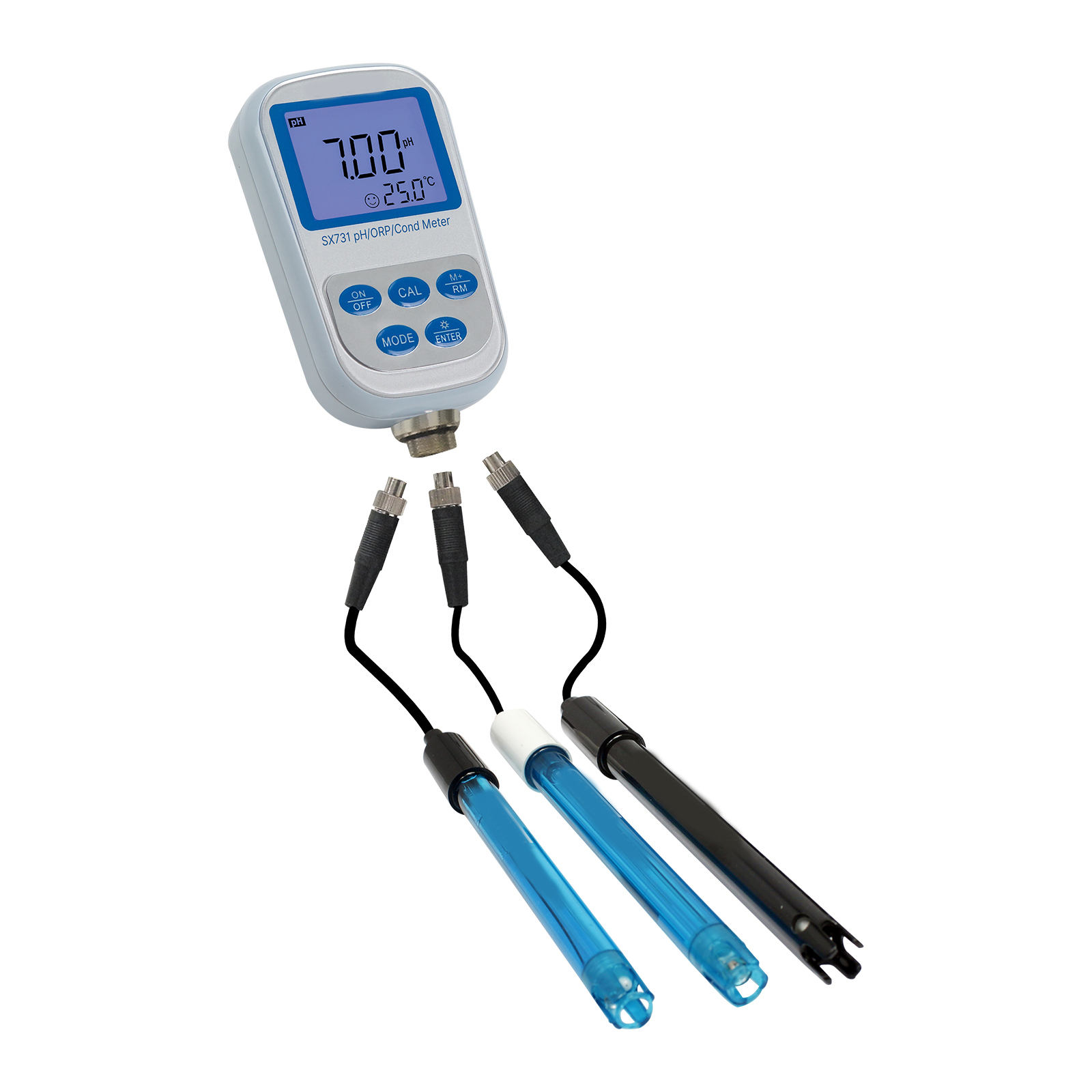

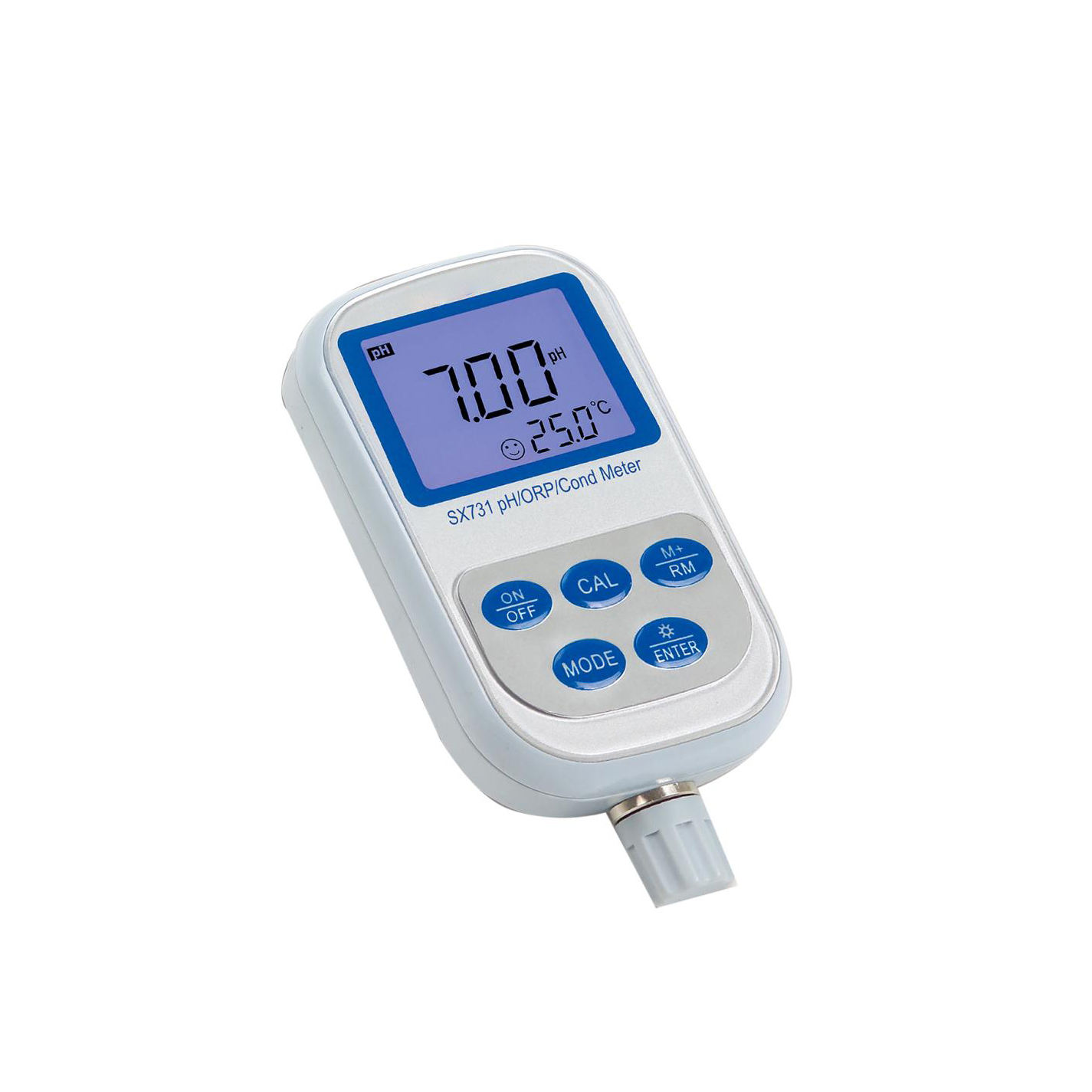

SX731 7-in-1 Portable PH/ ORP/ Conductivity Meter

pH range: (-2.00 to 19.99) pH
ORP(mV) range: -1999 mV to 0 to 1999mV
Conductivity range: (0.00 to 19.99)μS/cm (20.0 to 199.9)μS/cm
(200 to 1999)μS/cm (2.00 to 19.99) mS/cm
(20.0 to 199.9) mS/cm
Availability:
Inquire

  • SX731

  • NADE

  • Two AA alkaline batteries (1.5V x2)

  • 1

  • 1 year

  • China

Product Description

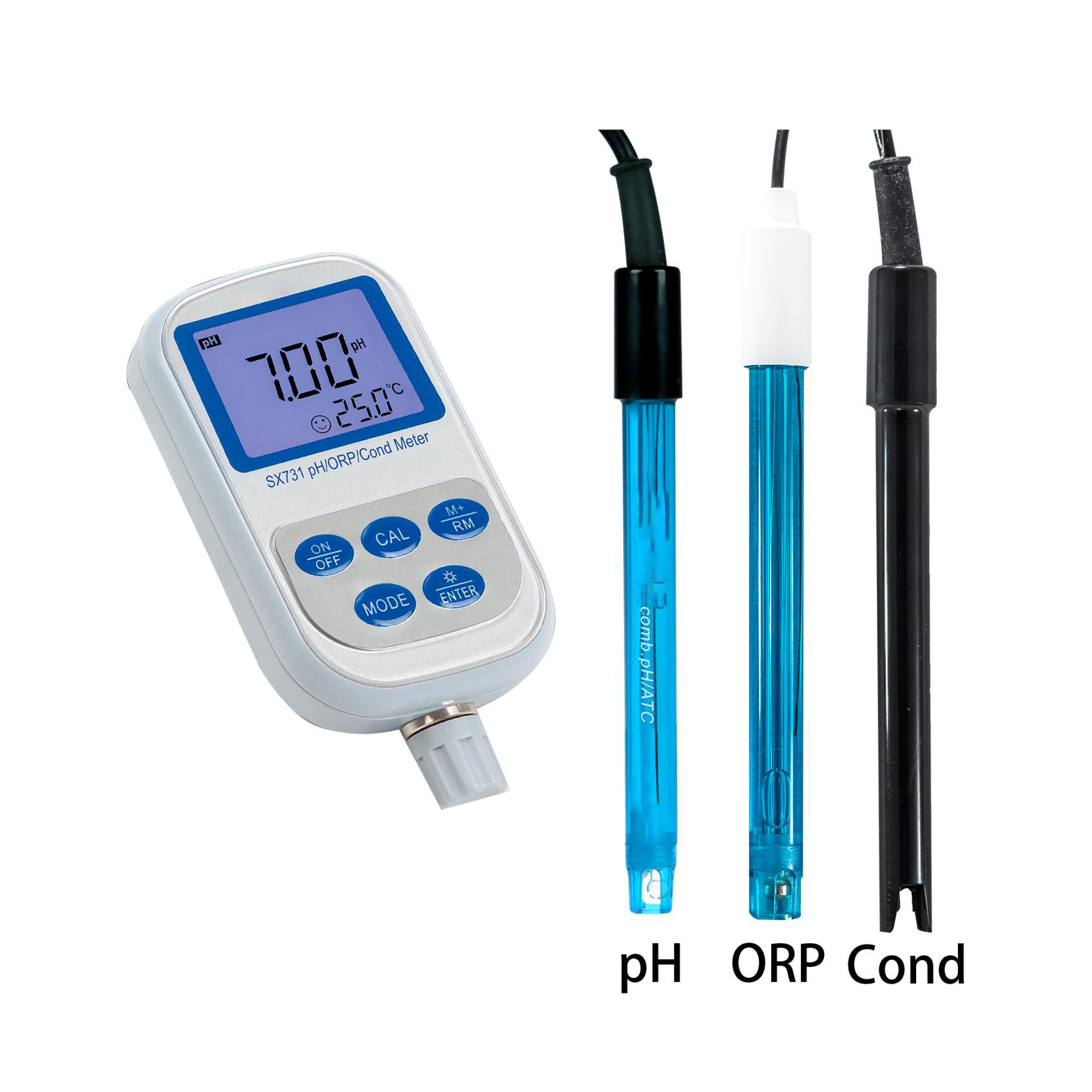

731 p2

SX731 7-in-1 Portable pH/ORP/Conductivity/TDS/Salinity/Resistivity Meter
SX731 is designed for lab-grade measurement of up to 7 water quality parameters in the field, including pH, ORP (redox),
conductivity, TDS, salinity, resistivity, and temperature. It is suitable for general water solutions’ applications such as water
treatment, groundwater, surface water, hydroponics, environmental monitoring, aquaculture, aquarium, beverage making, etc.


Basic Features
* Intelligent functions –– auto. calibration, auto. temperature compensation, self-diagnosis, data logging, auto. power off, and more.
* Digital filter technology –– enhance the meter’s response time and measurement accuracy
* Automatic electrode recognition –– the meter automatically switches to the right parameter mode according to the connected electrode
* Data logging –– 400 sets of data storage and recall
* Built tough –– IP57 water-resistant structure, ideal for use in harsh environment

Application

SX751 application

Specification

Model

SX731





pH

Measurement range

(-2.00 to 19.99) pH

Resolution

0.1/0.01 pH

Accuracy

Meter: ±0.01pH; Overall: ±0.02pH

Stability

±0.01 pH/3h

Temp. compensation range

(0 to 100) °C (automatic)



ORP(mV)

Measurement range (mV/ORP/EH)

-1999 mV to 0 to 1999mV

Resolution

1mV

Accuracy

Meter: ±0.1% FS, Overall: ±15mV













 Conductivity

Measurement range

Conductivity:
(0.00 to 19.99)μS/cm
(20.0 to 199.9)μS/cm
(200 to 1999)μS/cm
(2.00 to 19.99) mS/cm
(20.0 to 199.9) mS/cm
TDS: (0 to 100) g/L;
Salinity: (0 to 100) ppt
Resistivity: (0 to 100) MΩ·cm

Resolution

0.01/0.1/1μS/cm 0.01/0.1 mS/cm

Accuracy

Meter: ±1.0% F.S, Overall:±1.5% F.S

Temp. compensation range

(0 to 50) °C (automatic)

Electrode constant

0.1 / 1 / 10 cm⁻¹

Reference temperature

25°C, 20°C, and 18°C





Other Technical Parameters

Data storage

400 sets

Data content

Serial number, measurement value, measurement unit, and temperature

Power Supply

Two AA alkaline batteries (1.5V x2)

Dimensions and weight

Meter: (65×120×31) mm/180g
Complete Kit: (255 x 210x 50) mm/1490g

Quality and safety certification

CE, ISO 9001:2015



Working Condition

Working temperature

5 to 35°C

Working humidity

≤85%

IP rating

IP57 water-resistant
