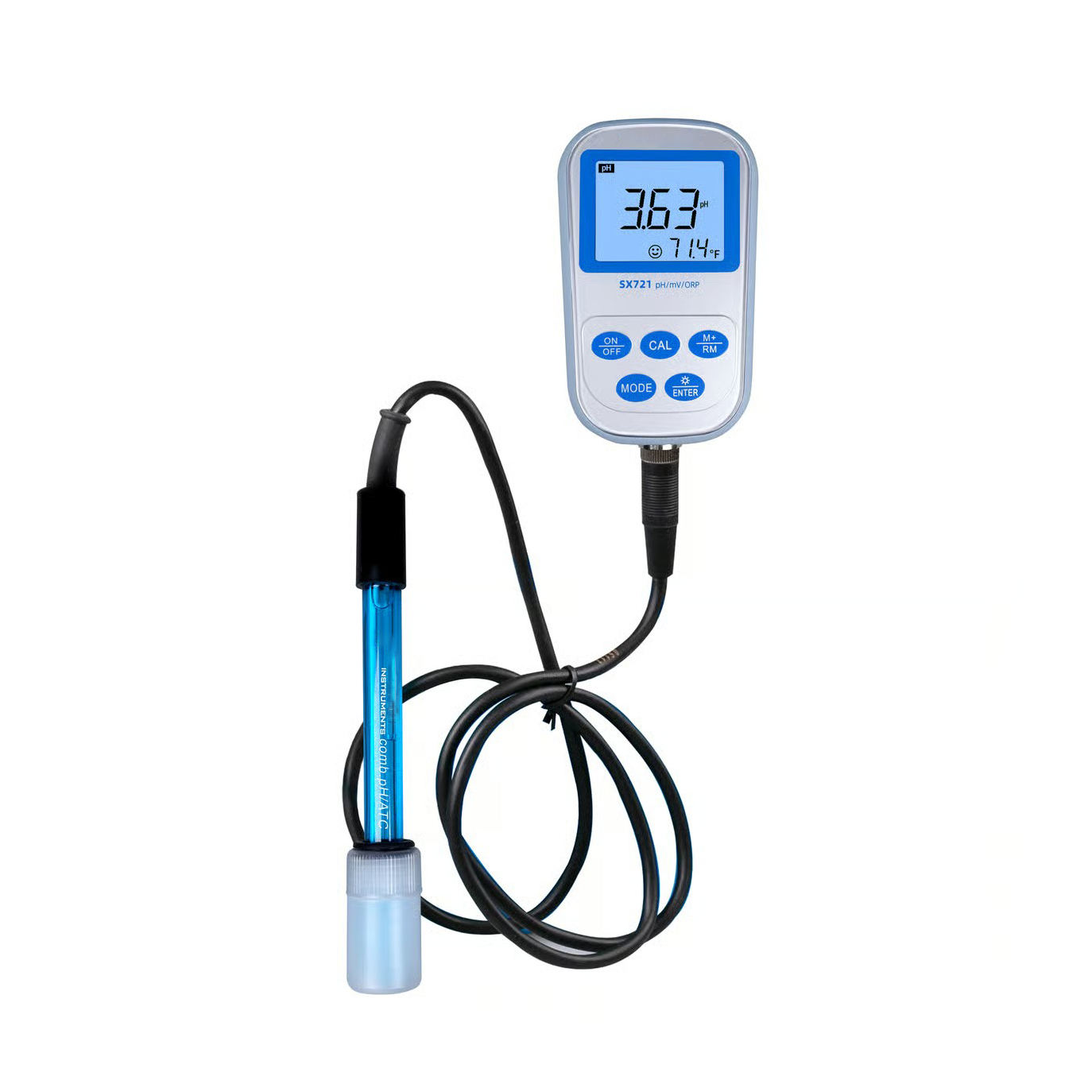

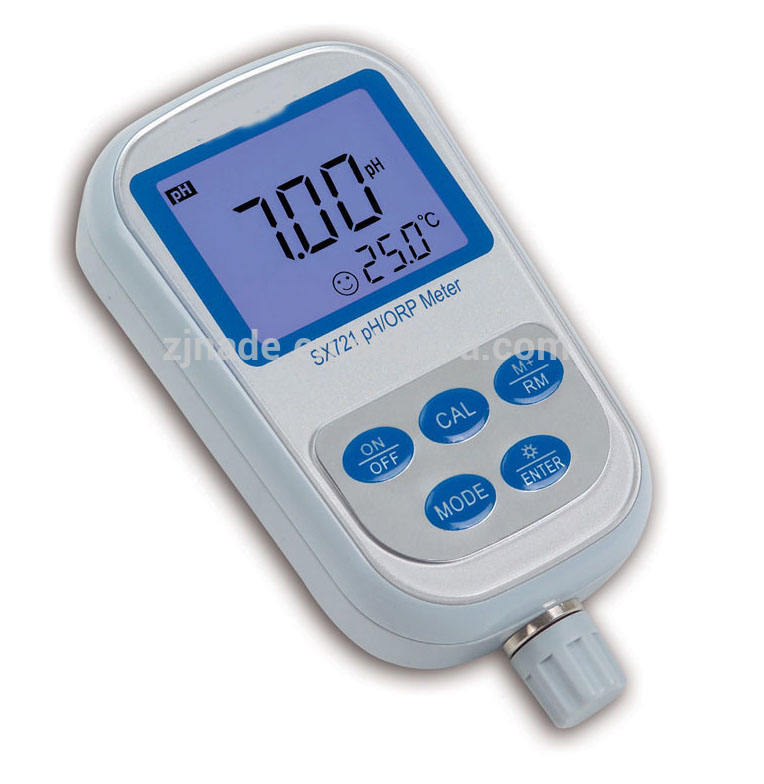

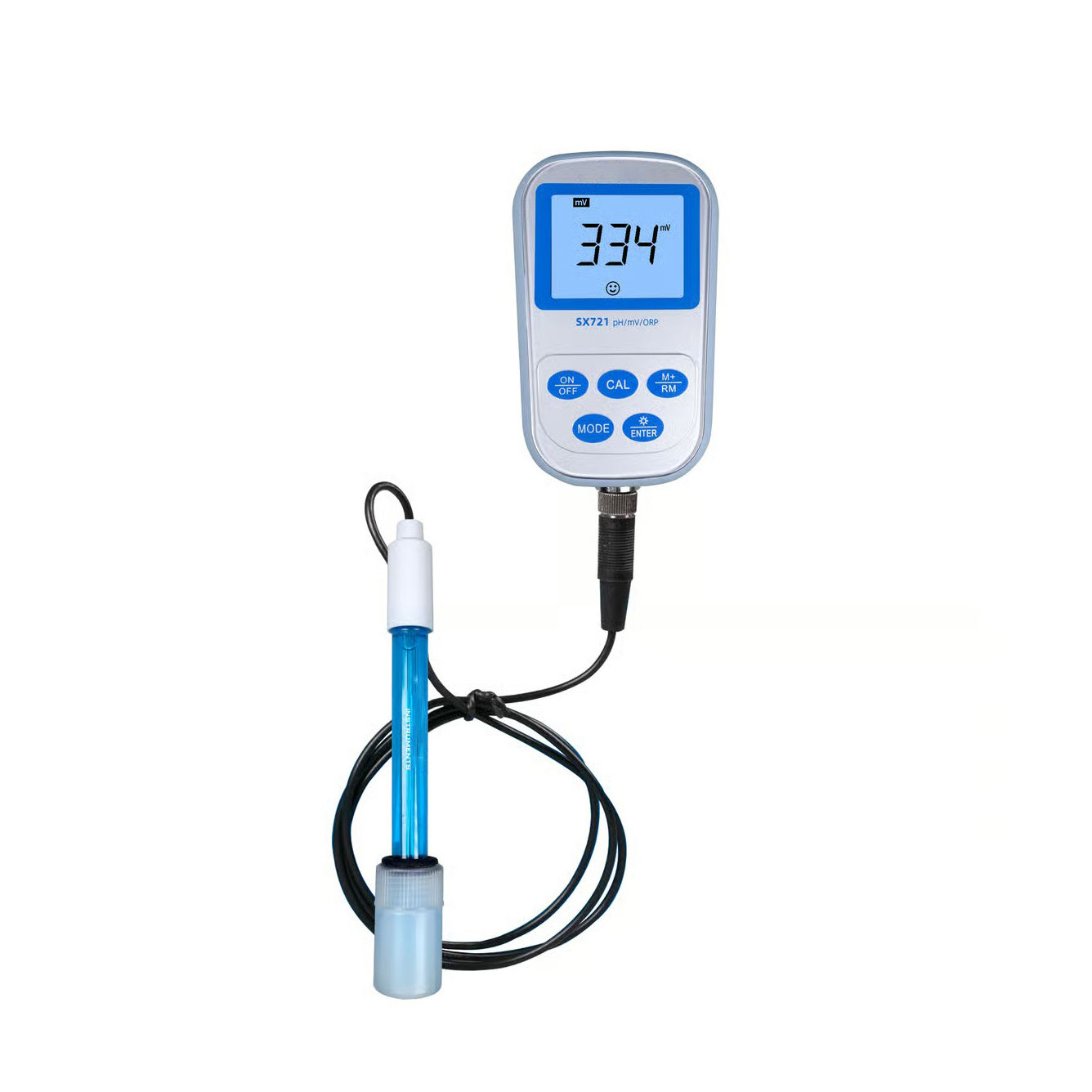

SX721 Portable pH/ORP Meter

pH range: (-2.00 to 19.99) pH
pH Accuracy: ±0.01pH
ORP(mV) range: -1999 mV to 0 to 1999mV
Data storage: 200sets

Availability:
  • SX721

  • NADE

  • Two AA alkaline batteries (1.5V x2)

  • 1

  • 1 year

  • China

Product Description

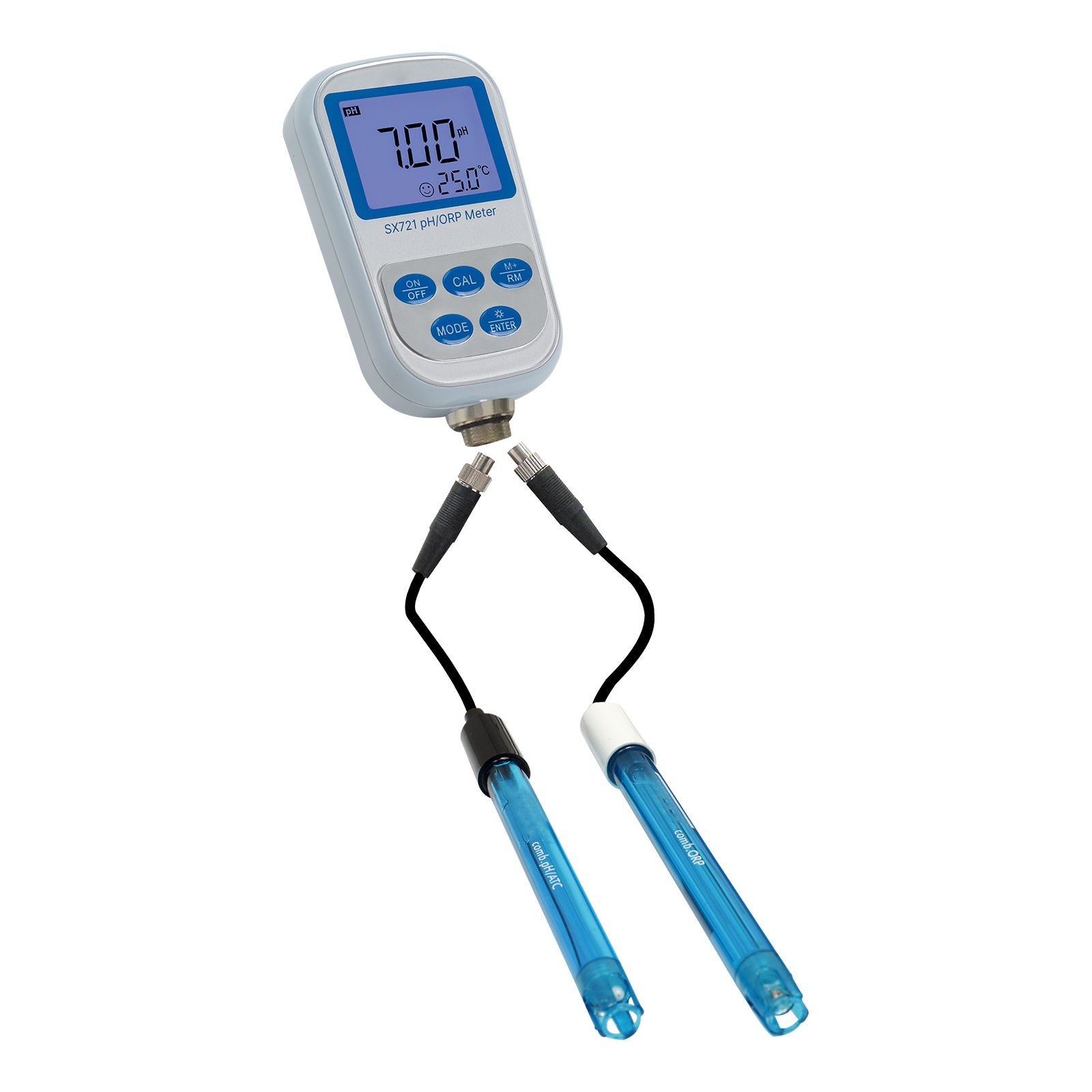

SX721 P2


The SX721 Portable pH/ORP Meter, designed for measuring pH and ORP values in aqueous solutions, is a cost-effective portable dual-parameter (pH + ORP) measuring instrument. It is ideal for industries such as industrial and mining enterprises, water treatment projects, and environmental protection, and performs exceptionally well for field and on-site applications.
This meter integrates a variety of functions, including automatic calibration, automatic temperature compensation, menu setting, automatic shutdown, and low-voltage display. Additionally, it adopts advanced digital processing technology, which enhances the meter's response speed and measurement accuracy, and features a stable reading display mode.


Basic Features
* Intelligent functions –– auto. calibration, auto. temperature compensation, self-diagnosis, data logging, auto. power off, and more.
* Digital filter technology –– enhance the meter’s response time and measurement accuracy
* Automatic electrode recognition –– the meter automatically switches to the right parameter mode according to the connected electrode
* Data logging –– 400 sets of data storage and recall
* Built tough –– IP57 water-resistant structure, ideal for use in harsh environment

pH Features
* Built with lithium glass membrane and fiber ceramic junction, the 201T-S pH/temp. electrode provides the foundation for quick response and accurate pH readings.
* 1 to 3 points of quick auto. calibration, recognizing up to 13 kinds of pH buffers.
* The self-diagnosis function helps you understand common problems and how to fix them.
* With the 8-pin to BNC converter (sold separately), a variety of LabSen pH electrodes can be connected to meet the testing needs of specialized applications.

ORP Features
* Equipped with 301Pt-S Platinum ORP electrode featured with stable potential and fast response
* No need for ORP calibration
* The platinum sensor is easy to clean and maintain
* Comes with 222mv ORP standard solution for checking accuracy and sensor conditioning


Application

SX751 application

Specification

pH

Measurement range

(-2.00 to 19.99) pH

Resolution

0.1/0.01 pH

Accuracy

±0.01pH±1 digit

Input current

≤2×10-12 A

Input impedance

≥1×1012 Ω

Temp. compensation range

(0 to 100) ˚C (automatic)



ORP

Measurement range (mV/ORP/EH)

-1999 mV to 1999mV

Resolution

1mV

Accuracy

±15mV



Other Technical Parameters

Data storage

200 sets

Data content

Serial number, measurement value, measurement unit, and temperature

Power Supply

Two AA alkaline batteries (1.5V x2)

Dimensions and weight

Meter: (65×120×31) mm/180g

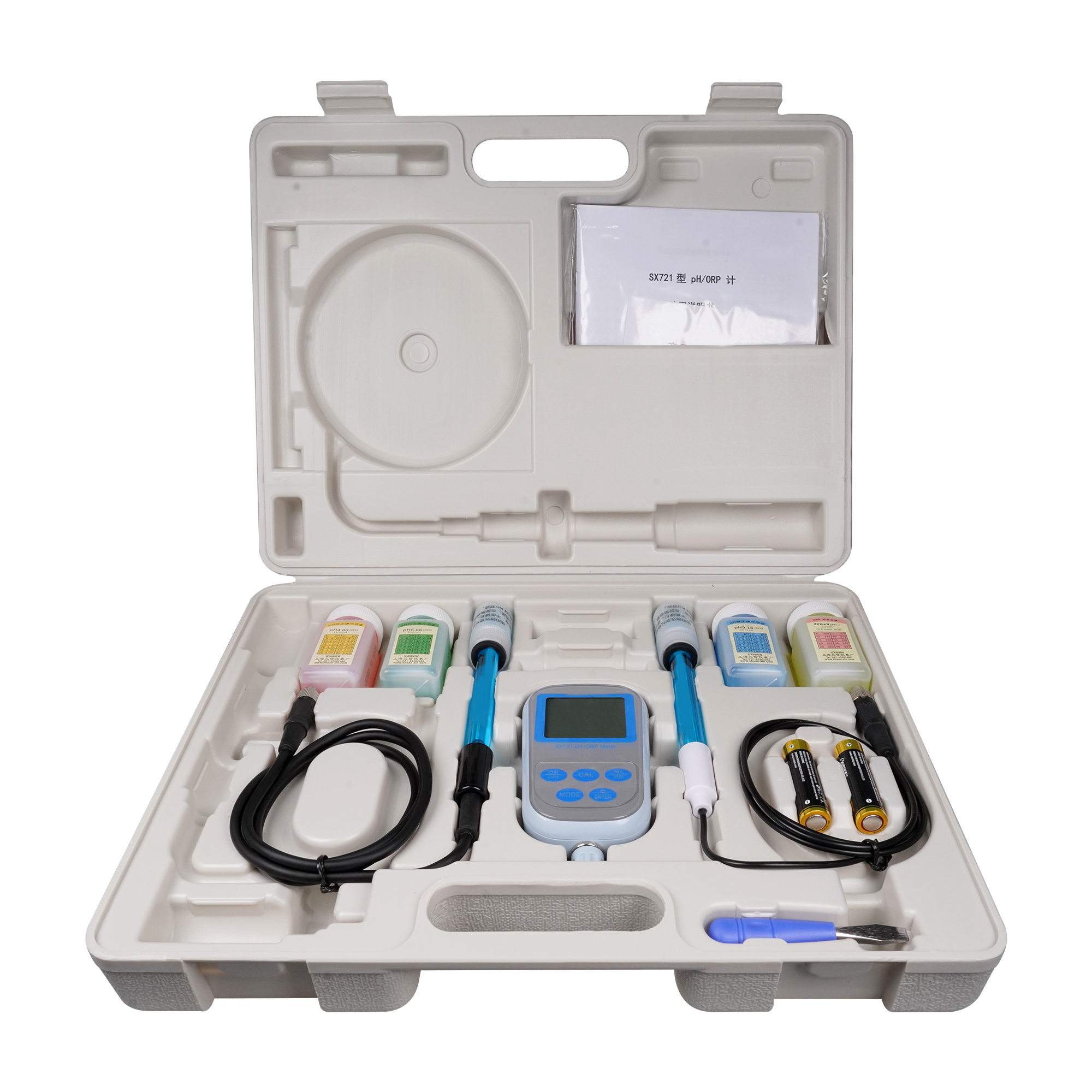

Complete Kit: (255 x 210x 50) mm/1760g

Quality and safety certification

CE, ISO 9001:2015



Working Condition

Working temperature

5 to 35˚C

Working humidity

≤85%

IP rating

IP57 water-resistant
