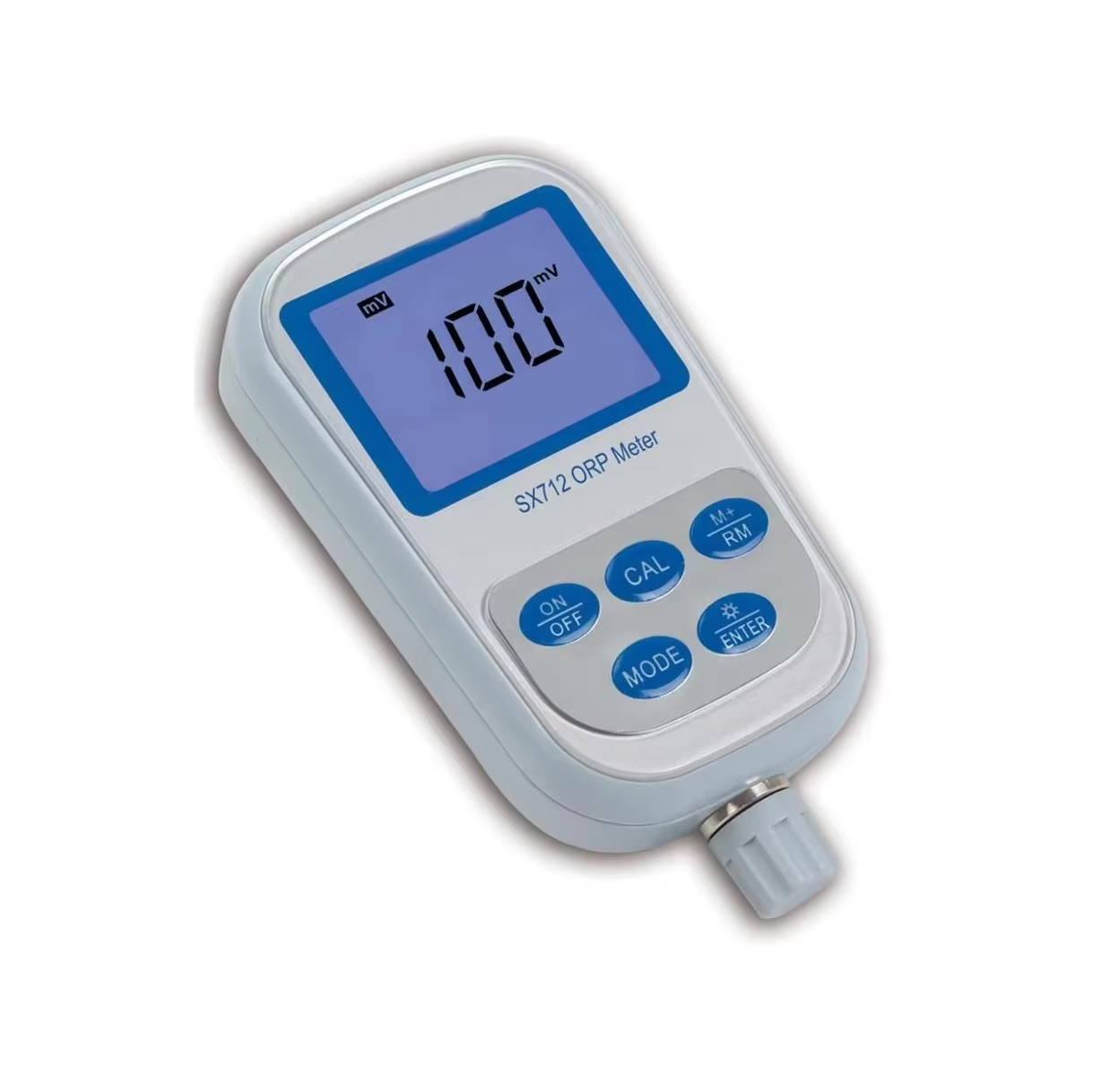

SX712 Portable ORP Meter

ORP range: -1999 mV to 1999mV
ORP Accuracy: ±15mV
Data storage: 100sets
IP rating: IP57 water-resistant



Availability:
  • SX712

  • NADE

  • Two AA alkaline batteries (1.5V x2)

  • 1

  • 1 year

  • China

Product Description

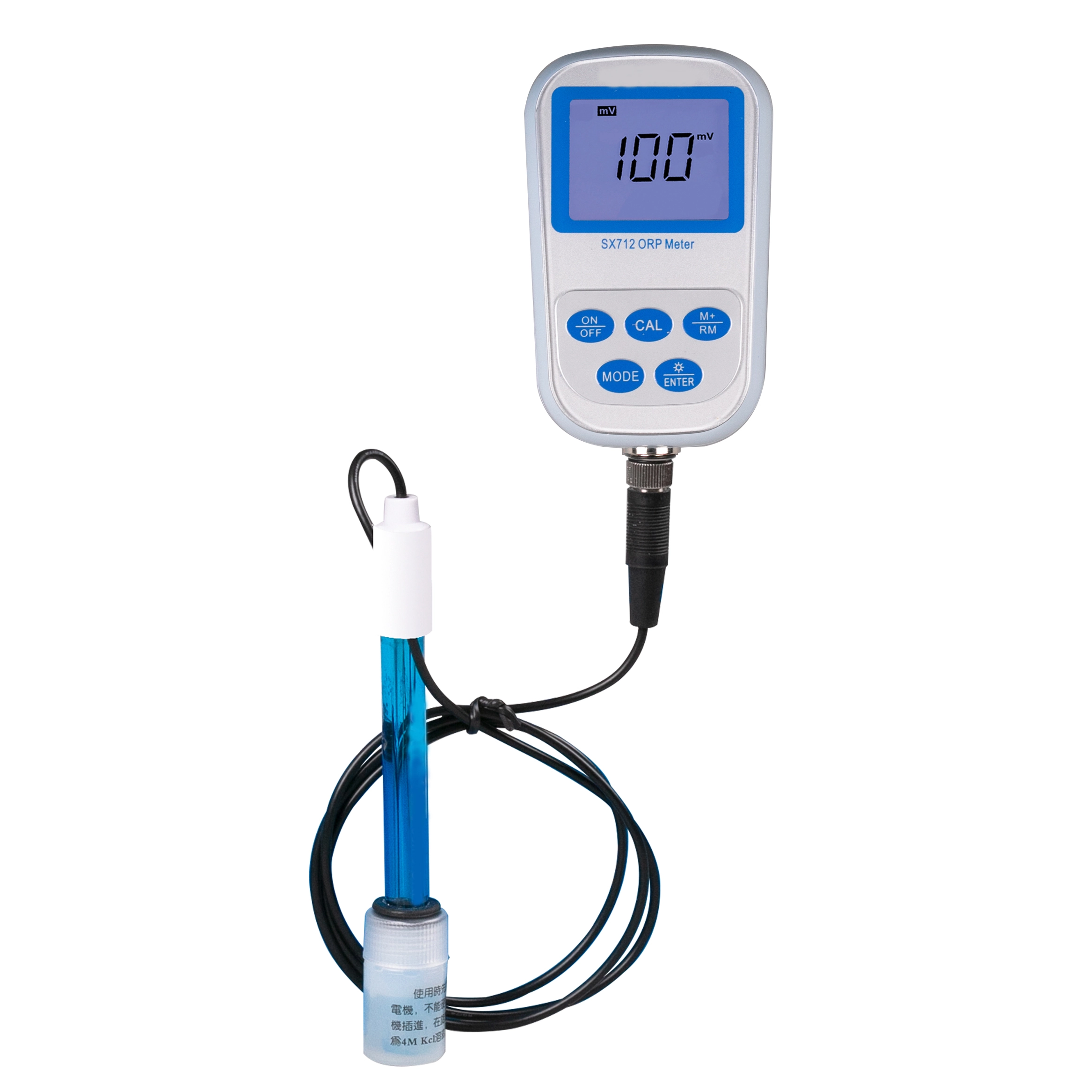

sx712-3_2334_2334

SX712 Portable ORP Meter

Equipped with a built-in microprocessor chip, the SX712 Portable ORP Meter features an elegant design and user-friendly operation.
It represents the perfect integration of advanced electronic technology, sensor technology, and software design.
This instrument is capable of high-precision measurement of ORP (Oxidation-Reduction Potential) values in aqueous solutions,

making it a portable ORP meter with optimal cost-effectiveness. It is suitable for industries such as industrial and mining enterprises, water treatment projects, and environmental protection, and is particularly ideal for field and on-site use.


Features:

* Specialized Platinum ORP Electrode: Features low drift, fast stabilization, no calibration required, and easy cleaning.
* Built-in Microprocessor Chip: Equipped with intelligent functions including automatic calibration, automatic temperature
  compensation, data storage, function setting, self-diagnostic information, automatic shutdown, and low-voltage display.
* Advanced Measurement Technologies: Adopts digital filtering and slip difference technology to intelligently improve the meter’s response speed and the accuracy of measured data. It is fitted with a high-definition blue backlit display, which shows a smiley icon when the measured value is stable.
* Data Management: Supports storage, recall, and deletion of up to 100 sets of data.

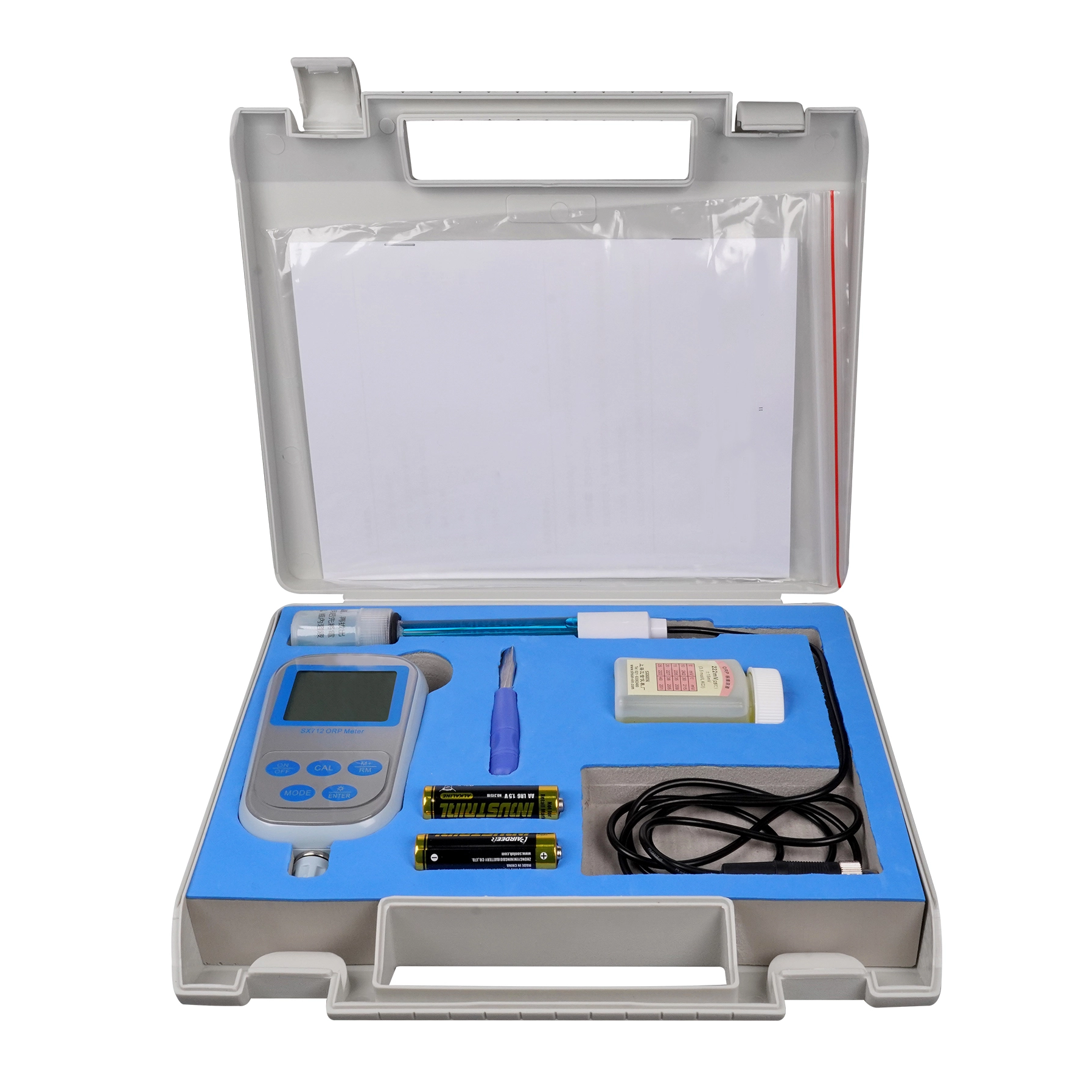

* Durability & Portability: Complies with IP57 dust and water resistance rating. Comes standard with a sturdy carrying case that contains all accessories, facilitating on-site use.



Application

SX751 application

Specification

ORP

Measurement range (mV/ORP/EH)

-1999 mV to 1999mV

Resolution

1mV

Accuracy

±15mV



Other Technical Parameters

Data storage

100 sets

Data content

Serial number, measurement value, measurement unit

Power Supply

Two AA alkaline batteries (1.5V x2)

Dimensions and weight

Meter: (65×120×31) mm/180g
Complete Kit: (255 x 210x 50) mm/1760g



Working Condition

Working temperature

5 to 35˚C

Working humidity

≤85%

IP rating

IP57 water-resistant
