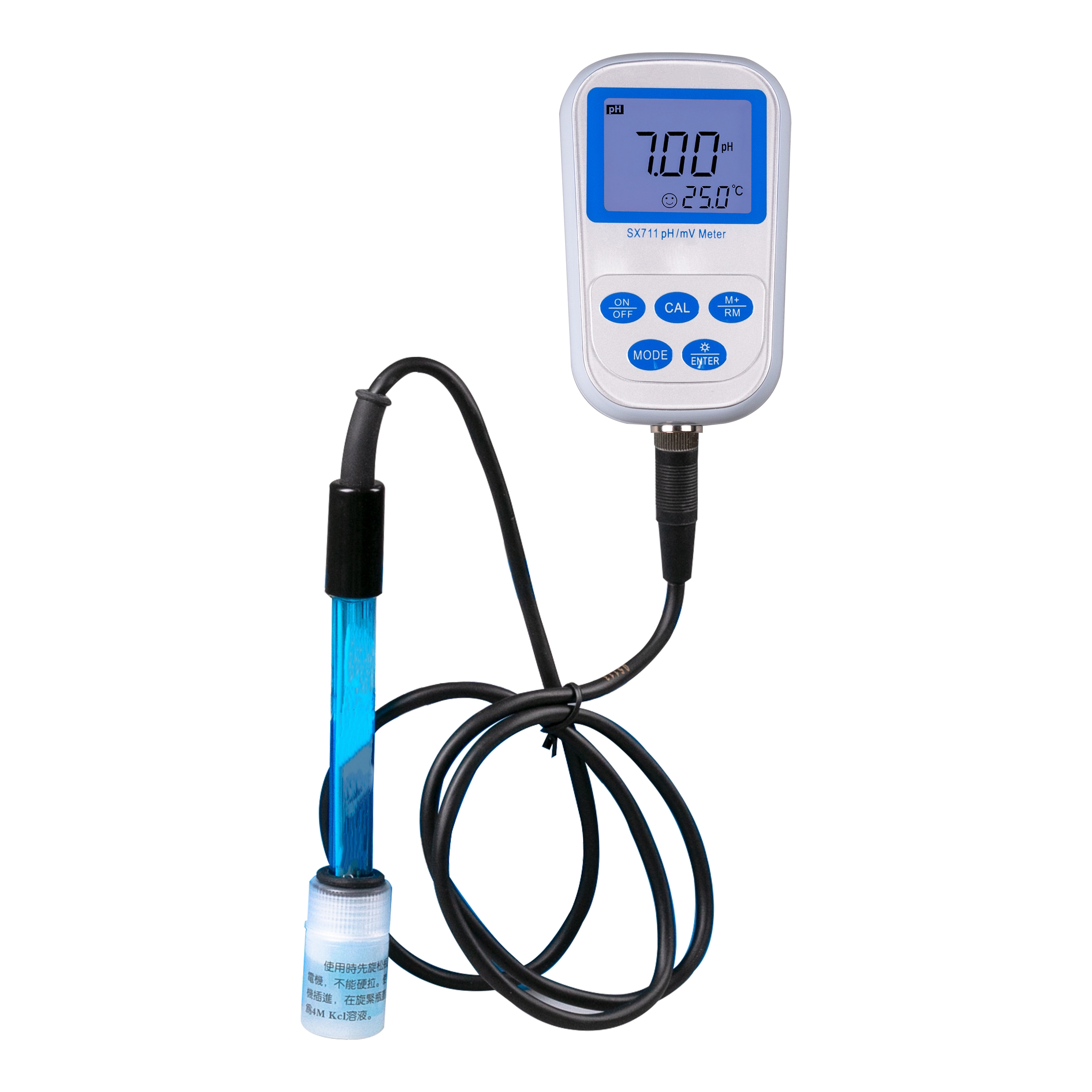

SX711 Portable pH/mV Meter

pH range: (-2.00 to 19.99) pH
pH Accuracy: Meter: ±0.01pH; Overall: ±0.02pH
ORP(mV) range: -1999 mV to 0 to 1999mV
Data storage: 200 sets
Availability:
Inquire

  • SX711

  • NADE

  • Two AA alkaline batteries (1.5V x2)

  • 1

  • 1 year

  • China

Product Description

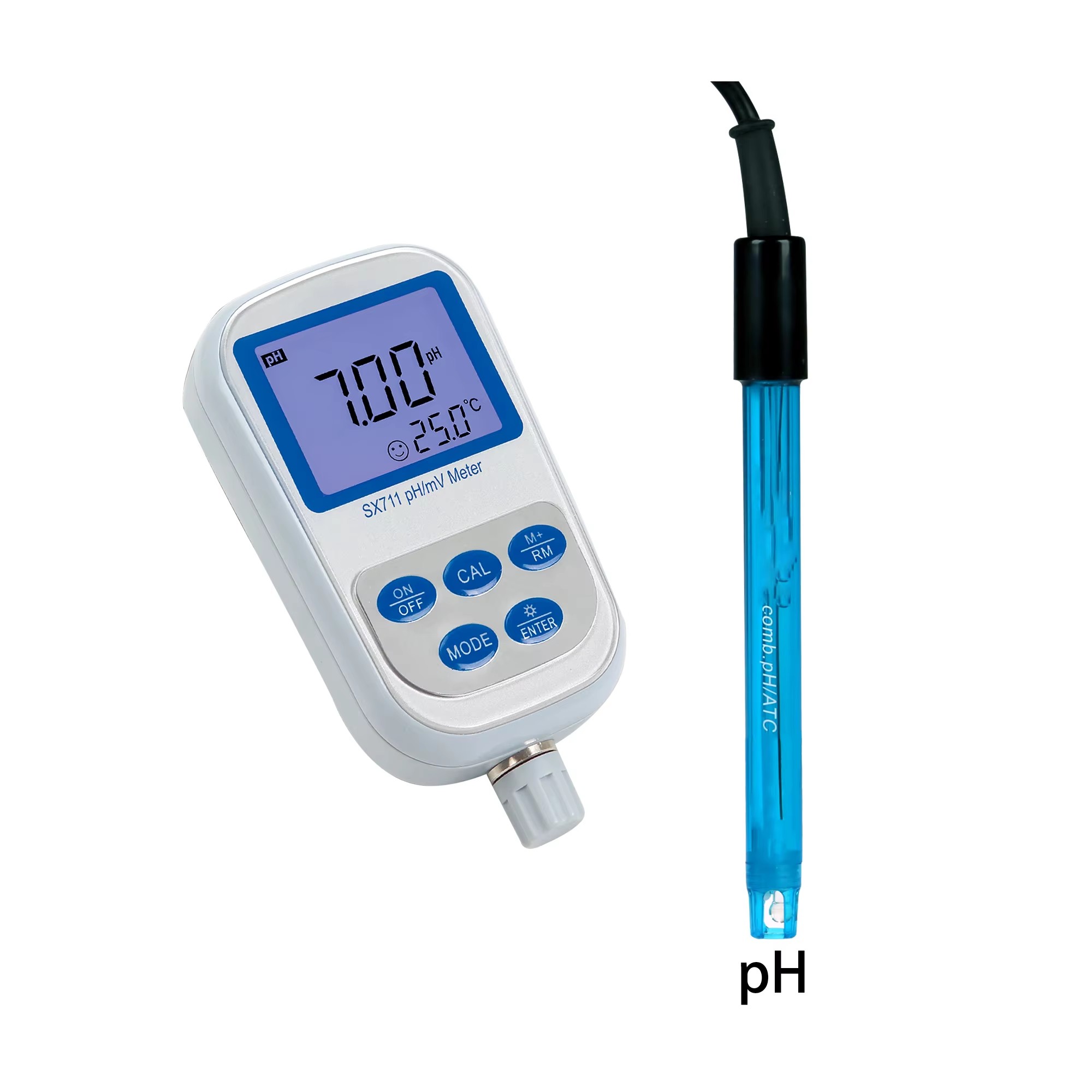

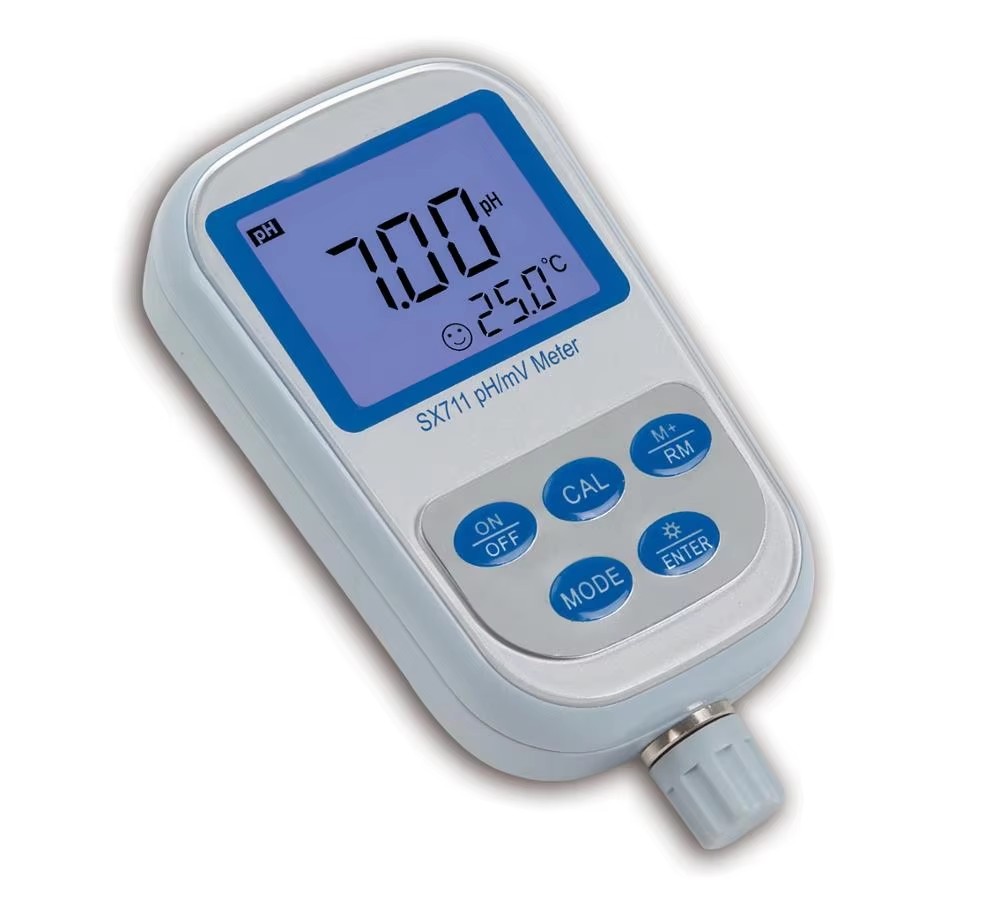

SX711 P1

The SX711 Portable pH/mV Meter is the perfect combination of advanced electronic technology, sensor technology, and software
design. This instrument can be used for high-precision measurement of parameters such as pH, mV, and temperature of aqueous
solutions, making it a portable pH tester with optimal cost-effectiveness. It is suitable for industries including industrial and
mining enterprises, power plants, water treatment projects, and environmental protection, and performs exceptionally well for
field and on-site use.


Features:

Equipped with a pH electrode, an ORP electrode, a conductivity electrode, and a dissolved oxygen electrode, the meter will
automatically recognize the electrodes once they are inserted, ensuring easy operation.

It has a built-in microprocessor chip and features intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function setting, self-diagnostic information, automatic shutdown, and low-voltage display.

Adopting digital filtering and slip technology, the meter intelligently improves its response speed and the accuracy of
measurement data. It is equipped with a high-definition blue backlit display, and a smiling face icon will appear when the
measured value is stable.

It supports storage, recall, and deletion of up to 200 sets of data.

The standard configuration includes a 201T-S triple-combination pH electrode. With a lithium glass sensing membrane, this electrode offers fast response and low drift, and is integrated with a built-in temperature sensor.

It supports 1~3 point automatic pH calibration and can automatically recognize 13 types of pH standard buffer solutions. Three series of standard buffer solutions are available for selection: European & American series, NIST series, and Chinese series.

It allows setting of pure water pH measurement mode and ammonia-added pure water pH measurement mode. For these two special pH measurement modes, the meter automatically performs non-linear temperature compensation.

The meter complies with the IP57 dust and water resistance rating. It comes with a sturdy carrying case as standard, which contains all accessories, facilitating on-site use.




Application

SX751 application

Specification

Model

SX711







pH

Measurement range

(-2.00 to 19.99) pH

Resolution

0.1/0.01 pH

Accuracy

Meter: ±0.01pH; Overall: ±0.02pH

Stability

±0.01 pH/3h

Temp. compensation range

(0 to 100) °C (automatic)





ORP(mV)

Measurement range

-1999 mV to 0 to 1999mV

Resolution

1mV

Accuracy

Meter: ±0.1% FS









Other Technical Parameters

Data storage

200 sets

Data content

Serial number, measurement value, measurement unit, and temperature

Power Supply

Two AA alkaline batteries (1.5V x2)

Dimensions and weight

Meter: (65×120×31) mm/180g
Complete Kit: (255 x 210 x 50) mm/790g

Quality and safety certification

ISO9001:2015, CE , RoHS, CMC



Working Condition

Working temperature

5 to 35°C

Working humidity

≤85%

IP rating

IP57 water-resistant
