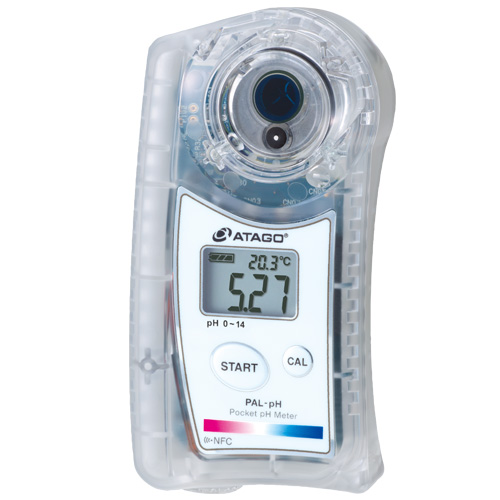

PAL-PH Hand-held PH Meter

Sample Volume:0.6mL
  • PAL-PH

  • Atago

  • 1

  • 1 year

  • Japan

Product Description

A new pocket pH meter in a unique droplet style.

Operation is simple, requiring only a small amount of sample.
It can be used in a variety of applications, such as food and beverage, soil, water-soluble cutting oil, alkaline cleaning liquid, and more!
This is suitable for cutting oil that contains amine.


Unbreakable glass electrode Safe and Peace of Mind


In conventional pH meters the glass electrode has a protrusion-like shape and is easily broken requiring delicate handling.The PAL-pH succeeded in developing a durable glass electrode that can withstand large loads. In various fields as well as food production sites, the risk of contamination and injuries can be reduced and used daily without hesitation. Also, the electrode does not require a storage solution.

Measure merely with 3 drops


The PAL-pH can measure pH with only 0.6 mL of sample and the measurement time is as fast as 3 seconds. This is an advance that dip-style pH meters did not offer. There is no need to prepare a beaker to hold the sample, and the trouble of preparation and cleaning can be omitted. Of course, there is no need to purchase a large volume of calibration standard.

Easy to clean with full flat sample stage, and hygienic


It is a pH meter with IP65 that can be "washed" under running tap water. Most of the conventional pH meters require careful attention when washing and the complex shape of the measurement section or sensor unit, but PAL-pH is easy to wash because the measurement unit is completely flat and samples can be easily wiped off. PAL-pH is easy to maintain and clean, so contamination can be avoided. Using PAL-pH is a relief from daily stress.

Unconsumable KCl


Electrode’s internal liquid, KCl is inseparable with the pH meter. Ordinary pH meters are designed so that KCl will flow little by little, and it will need to be replaced and filled regularly as it flows out. We took it upon ourselves to get rid of these stresses our users endured. We made every effort to figure out how to make KCl last longer. With PAL-pH, you do not have to worry about KCl depletion. The pride and effort of ATAGO developers, who wanted to create an easy-to-use device, created PAL-pH.

The only portable one equipped with "NFC function"


100 measured data can be wirelessly transferred by simply touching the reader connected to the smartphone or PC. You can prevent errors and forgetting to write down from handwritten recording.

Semi-solid and viscous samples can be measured.


Semi-solid and viscous samples such as jam, jelly, yogurt, bean paste, chocolate, tomato ketchup, seasoning, bread dough, shampoo, detergent, etc. can be measured stably.

Commitment of design


The PAL series has been awarded the Good Design as an instrument that extends the measurement field and possibilities.PAL with the meaning of fellow; Brix meter, salinity (EC) meter, and pH meter. The PAL-pH will provide the ease of use and high performance that PAL series is known for and continue to be loved in many industries.













Calibration at 3 points at 4.01, 6.86, 9.18.
Calibration at 3 points at 4.01, 7.00, 10.01.

Temperature compensation

10 to 40C

Sample Volume


Power Supply

Size AAA alkaline battery * 2
