PH200EM Benchtop PH Meters

pH Range: -2.00 to 18.00 pH
pH Accuracy: ±0.01 pH
mV Range: -1999 to 1999 mV
Reading Mode: Auto Read, Continuous
Availability:
  • PH200EM

  • AC Adapter, 100-240V AC input, DC9V output

  • 1

  • 1 year

  • China

Product Description

PH200EM

● High resolution LCD display screen, 6.0 inches.

● Multi-reading feature allows auto-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data Storage 50 sets for each parameter.

● Reset feature automatically resumes all settings back to factory default options.

● IP54 waterproof.

● 1-3 points calibration with Standard Recognition.

● Automatic/Manual temperature compensation ensures accurate results.

PH200EM old version    PH200EM new version

PH200EM new features

Application

PH measurement is widely used in universities, environmental protection, medicine, food, health, geological prospecting, metallurgy, marine exploration and other fields. It is required for common acid rain detection, surface water, industrial wastewater, drinking water, beverages, daily chemical products, textiles, etc.

 Ph meter application 1pH meter application 2.jpg

Detailed Examples:

1. The PH value of meat is related to the freshness of meat. By detecting the PH value of meat, we can judge the shelf life of meat and the nature of meat.

 pH meter application 3

2. When the beverage is within the proper PH range, it is conducive to ensuring the good taste and stability of the juice.

pH meter application 4

3. PH value measurement is a very important test item in the pharmaceutical process, and it is also one of the important tools for the detection of mobile phase buffer system in drug liquid phase analysis. Refer toChinese Pharmacopoeiafor PH test basis.

pH meter application5

4. The main component of MSG is sodium glutamate, with a PH value of about 7.

pH meter application 6

5. PH value is a mandatory inspection item for canned products.

pH meter application7

6. PH measurement is a very important experiment in the cosmetics industry. Face cream, hair dye and other daily chemical products have pH requirements.

pH meter application 8

Contact us to know more application solutions, NADE company will recommend suitable pH meter with ph sensor.

Specification

Model

PH200EM

Parameters

pH/mV

pH

Range

-2.00 to 18.00 pH


Resolution

0.01pH


Accuracy

± 0.01 pH


Calibration Points

Up to 3


Standard Recognition

NIST buffers

mV

Range

-1999 to 1999 mV


Resolution

1 mV


Accuracy

± 0.1%FS

Measurement

Reading Mode

Auto Read, Continuous


Reading Prompts

Reading, Stable, Locked


Temp. Compensation

MTC

Data management

Data Storage

50 results each

Inputs

pH Electrode

BNC(Q9)

Display options

Backlight

Yes


Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off


IP Rating

IP54

General

Power

AC Adapter, 100-240V AC input, DC9V output


Dimensions

242 × 195 × 68 mm


Weight

900g (1.98 lb)


Configuration

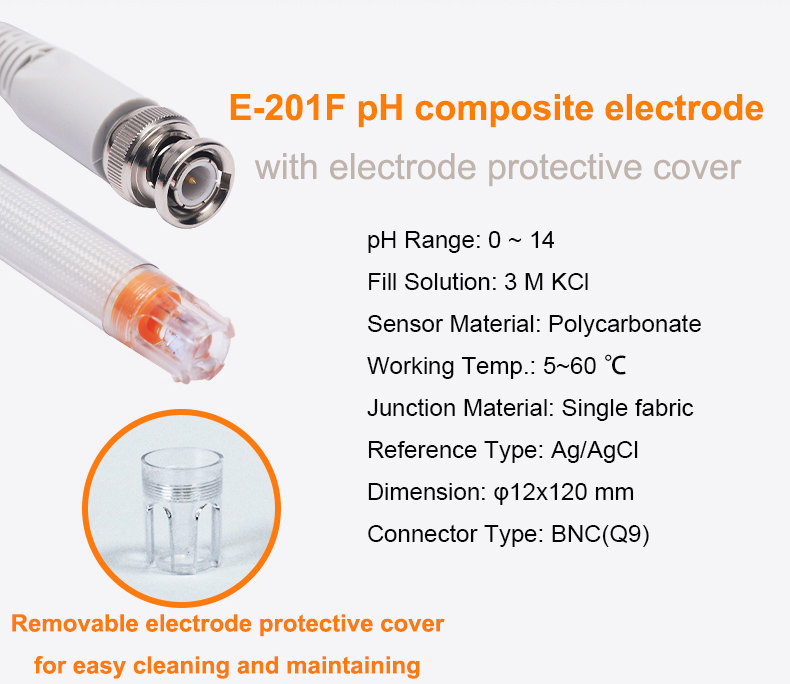

E-201F pH composite electrode

NIST pH Standard Solution (4.01, 7.00, 10.01) one bottle each (50ml/bottle)

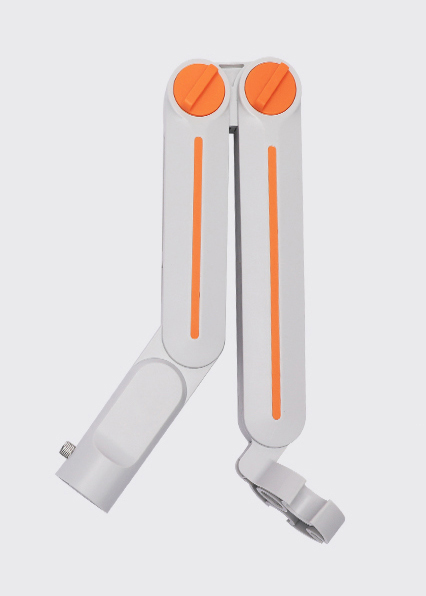

REX-5 Multifunction Electrode Stand

E-201F pH composite electrodeREX-5 P2                          pH Standard Solution
