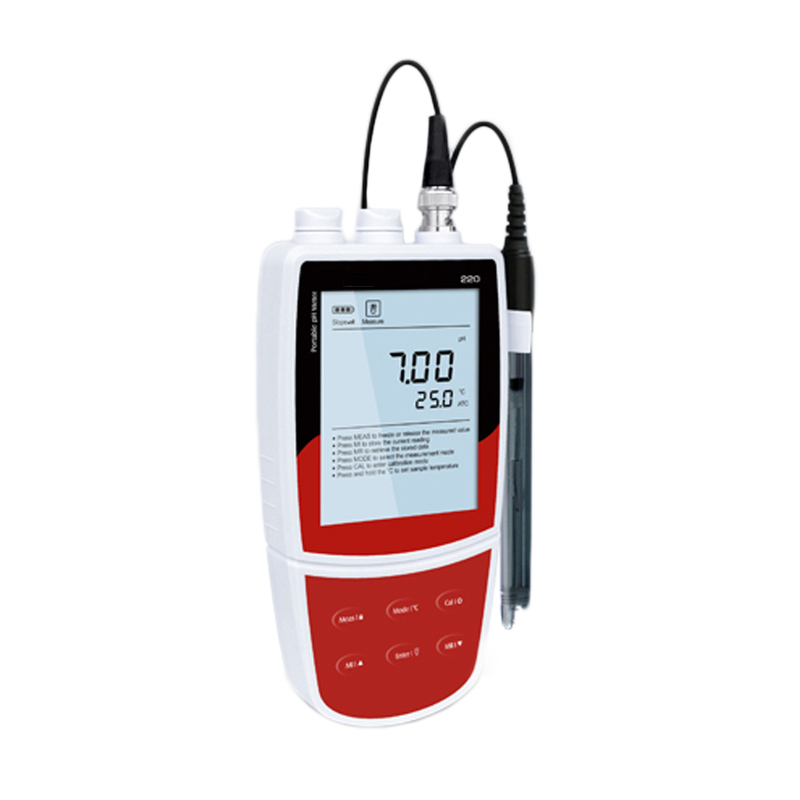

Bante220 Portable pH Meter

PH Range: -2.00 to 20.00pH
pH Resolution: 0.01pH
pH Accuracy: ±0.01pH
pH Calibration Points: 1 to 3 points
Availability:
  • Bante220
  • NADE
  • 1
  • 1 year
  • China

Product Description

 NADE Bante220 Laboratory Economy Portable pH Meter for Measuring pH and mV Values of Samples

Brief introduction:

Economy portable pH meter, 1 to 3 points calibration, Automatic Temperature Compensation, setup menu contains 7 options, which is suitable for measuring pH and mV values of samples.



Features:

1. Economy portable pH meter is equipped with a backlit LCD display.

2. 1 to 3 points calibration with automatic recognition for USA and NIST buffers.

3. Automatic electrode diagnosis helps the user decide whether to replace the pH electrode.

4. Automatic temperature compensation ensures accurate readings over the entire range.

5. Auto-Read function senses and locks the measurement endpoint.

6. Auto-Power Off effectively conserves battery life.

7. Setup menu allows setting the pH buffer group, number of calibration points, temperature unit, etc.

8. Reset function automatically resumes all settings back to the factory defaults.

9. Expanded memory stores or recalls up to 100 data sets.

10. USB communication interface for data transfer or connecting a power adapter to meter.


Specification

Model

Bante220

pH

Range

-2.00 to 20.00pH

Resolution

0.01pH

Accuracy

±0.01pH

Calibration Points

1 to 3 points

pH Buffer Options

USA (pH4.01/7.00/10.01), NIST (pH4.01/6.86/9.18)

mV

Range

±1999mV

Resolution

1mV

Accuracy

±1mV

Temperature

Range

0 to 105°C/32 to 221°F

Resolution

0.1°C/0.1°F

Accuracy

±0.5°C/±0.9°F

Offset Calibration

1 point

Calibration Range

Reading ±10°C

General Specifications

Temperature Compensation

0 to 100°C/32 to 212°F, manual or automatic

Auto-Power Off

30 minutes after last key pressed

Memory

Stores up to 100 data sets

Output

USB communication interface

Connector

BNC, 3.5mm jack socket

Display

Custom LCD (80×60mm)

Power

3×1.5V AA batteries or DC5V power adapter

Battery Life

Approximately 150 hours (turn off the backlight)

Dimensions

170(L)×85(W)×30(H)mm

Weight

300g

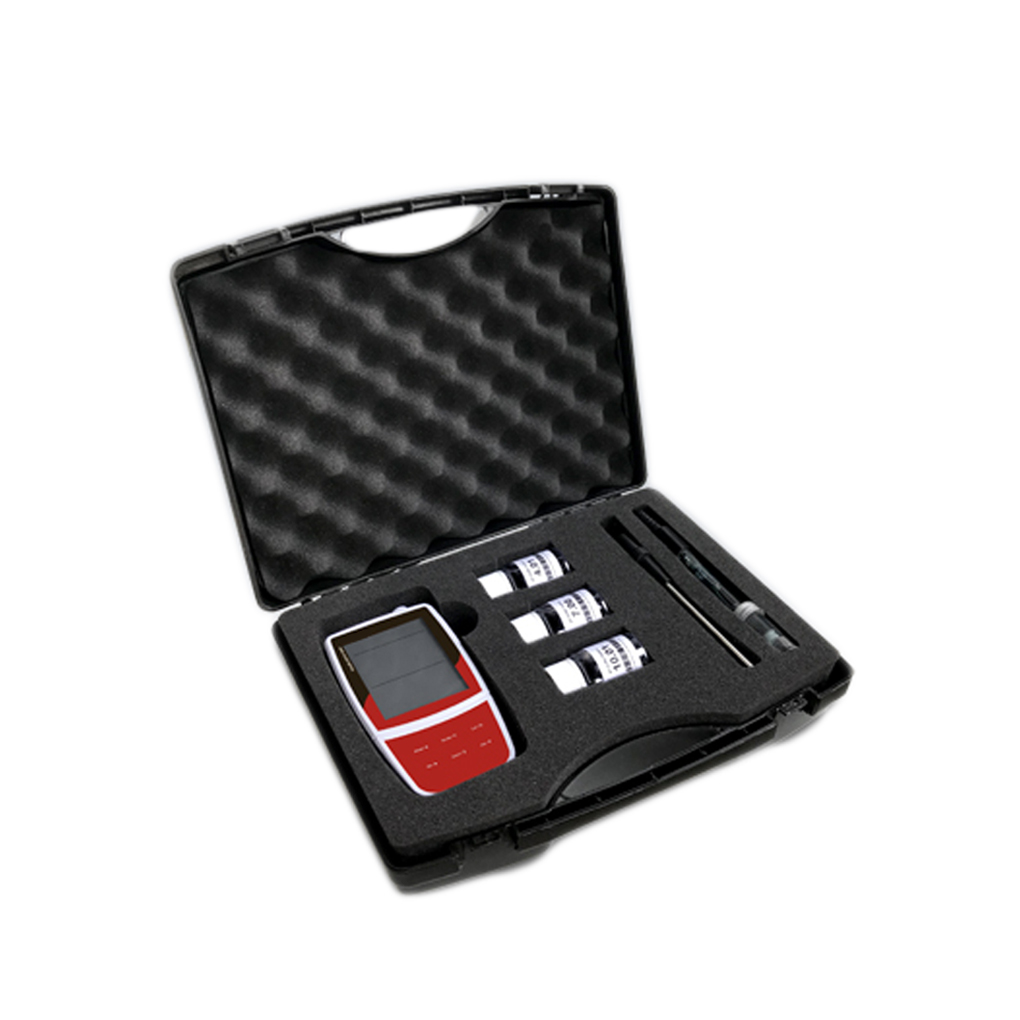

Accessories

² E201-BNC pH electrode

² TP-10K temperature probe

² pH4.01/7.00/10.01 buffer solutions

² Carrying case

NADE Bante220 Laboratory Economy Portable pH Meter for Measuring pH and mV Values of Samples
