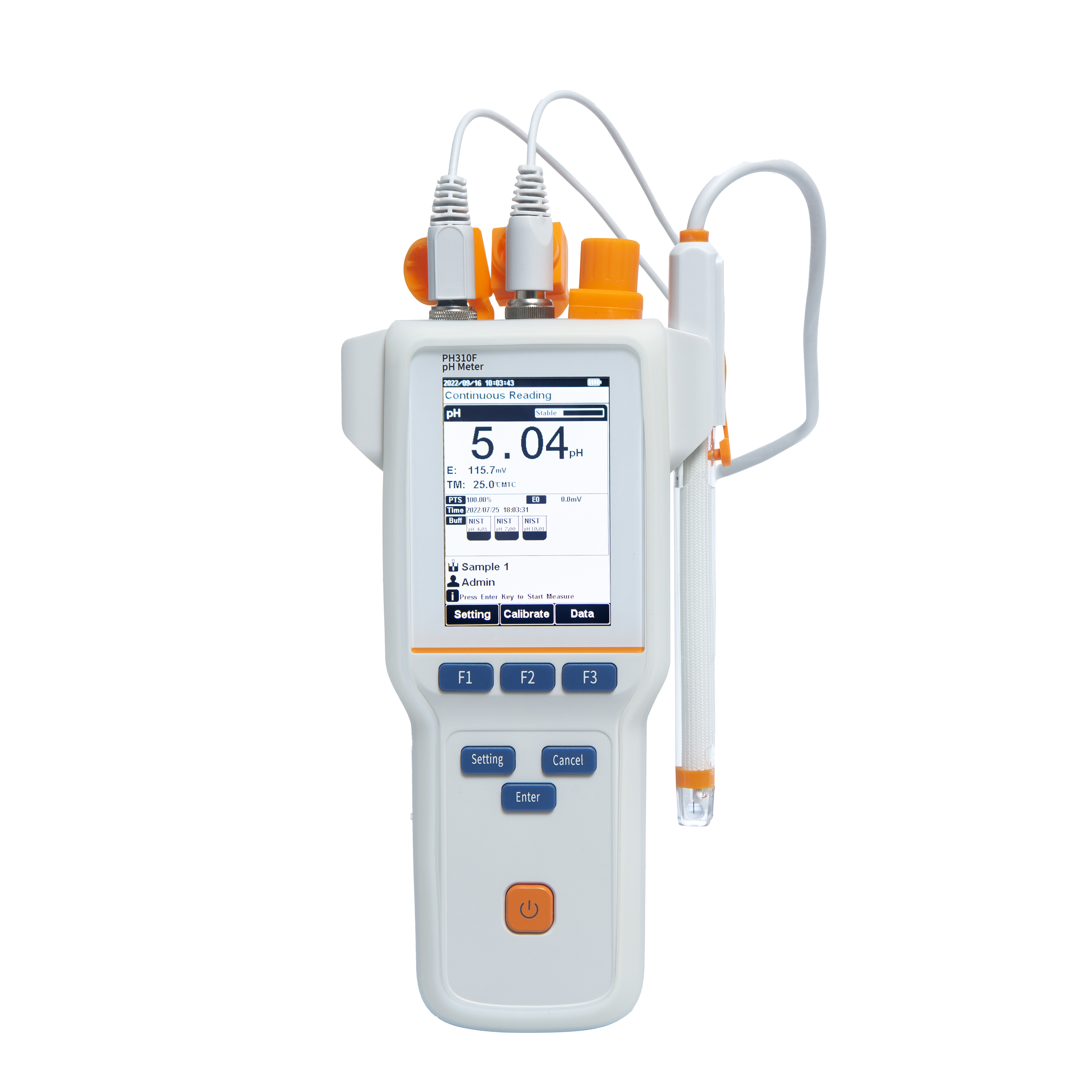

PH310F Portable pH Meter

pH Range: -2.00 to 20.00pH
mV Range: -2000.0 to 2000.0 mV
Temp Range: -5 to 110 ºC, 23 to 230 ºF
Data Storage: 500 results each
Availability:
  • PH310F

  • Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

  • 1

  • 1 year

  • China

Product Description

PH310F

● LCD display screen, 3.5 inches.

● Multi-reading feature allows auto-read, timed-read and continuous-read.

● Automatic/Manual temperature compensation ensures accurate results.

● Auto-hold feature senses and locks the measurement endpoint.

● Data capacity of up to 500 sets for each parameter (GLP-compliant).

● Support for USB communication.

● Auto-power off feature effectively extends the battery service life.

● Reset feature automatically resumes all settings back to factory default options.

● IP65 waterproof. The portable meter is suitable for fields measurements and out door measurements.

● 1-5 points calibration with Standard Recognition.

● Selectable pH buffer groups, including NIST, DIN, GB.

● Automatic electrode diagnosis with pH slope and offset display.

Application

PH measurement is widely used in universities, environmental protection, medicine, food, health, geological prospecting, metallurgy, marine exploration and other fields. It is required for common acid rain detection, surface water, industrial wastewater, drinking water, beverages, daily chemical products, textiles, etc.

 Ph meter application 1pH meter application 2.jpg

Detailed Examples:

1. The PH value of meat is related to the freshness of meat. By detecting the PH value of meat, we can judge the shelf life of meat and the nature of meat.

 pH meter application 3

2. When the beverage is within the proper PH range, it is conducive to ensuring the good taste and stability of the juice.

pH meter application 4

3. PH value measurement is a very important test item in the pharmaceutical process, and it is also one of the important tools for the detection of mobile phase buffer system in drug liquid phase analysis. Refer toChinese Pharmacopoeiafor PH test basis.

pH meter application5

4. The main component of MSG is sodium glutamate, with a PH value of about 7.

pH meter application 6

5. PH value is a mandatory inspection item for canned products.

pH meter application7

6. PH measurement is a very important experiment in the cosmetics industry. Face cream, hair dye and other daily chemical products have pH requirements.

pH meter application 8

Contact us to know more application solutions, NADE company will recommend suitable pH meter with ph sensor.


Specification

Model

PH310F

Parameters

pH/Temp.(mV)

           pH

Range

-2.00 to 20.00pH



Resolution

0.1, 0.01 pH



Accuracy

± 0.01 pH



Calibration Points

Up to 5



Standard Customization

Yes



Standard Recognition

NIST, GB and DIN buffers



Slope Limit

Yes

           mV

Range

-2000.0 to 2000.0 mV



Resolution

0.1



Accuracy

± 0.3 mV or ± 0.1%

   Temperature

Range

-5 to 110 ºC, 23 to 230 ºF



Unit

ºC, ºF



Resolution

0.1



Relative Accuracy

± 0.2

  Measurement

Reading Mode

Auto Read (Fast, Medium, Slow), Timed, Continuous



Reading Prompts

Reading, Stable, Locked



Temp. Compensation

ATC, MTC

Data

management

Data Storage

500 results each



GLP Features

Yes

Inputs

pH Electrode

BNC(Q9)



Temp. Probe

4-pin aviation connector

Outputs

USB

PC, printer

 Display options

Backlight

Yes



Auto Shutdown

300, 600, 1200, 1800, 3600 sec., off



IP Rating

IP65



Date and Time

Yes

       General

Power

Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output



Dimensions

80 × 255 × 35 mm



Weight

400g (0.88 lb)


Configuration

E-301-QC 3 in 1 pH Composite Electrode
NIST pH Standard Solution (4.01, 7.00, 10.01) one bottle each (50ml/bottle)
Electrode Hanger Protective Cover

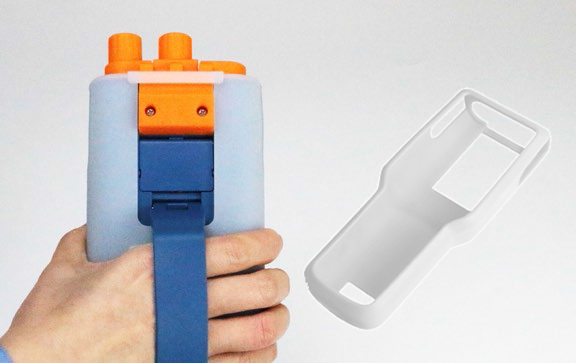

Wrist Strap Assembly

Portable Protective Case

3 in 1 pH Composite Electrode E-301-QC


WristbandsPH310F P8
