Nade kjeldahl apparatus Lab Testing Machine Automatic Kjeldahl Analyzer K1100F

  • 1 year, 1 Year
  • other
  • Zhejiang, China
  • Nade
  • K1100F
  • Electronic
  • 0.1-200mg N
  • 5 - 10 min/sample
  • Average value relative error 0.5%
  • 1000 pieces
  • USB or RS485
  • Kjeldahl Analyzer
  • K1100F
  • Dia 42mm
  • 220V 50Hz

Product Description

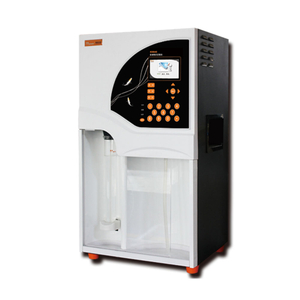

Nade Lab Testing Machine Automatic Kjeldahl Analyzer K1100F

Product Description

K1100/K1100F Automatic Kjeldahl Analyzer is an automatic device integrating distillation and titration functions designed based on classic Kjeldahl nitrogen determination method. It’s equipped with the latest core control system, powerful automation and high-quality components, can easily achieve automatic waste discharge and cleaning of digestion tubes and titration cups, control steam supply and real-time detection of condensation temperature. High-accuracy charging pump and titration system ensure test results accuracy, and multiple fluid level detection gives smooth test process.

Complete microcomputer control

Automatic completion of distillation, titration,calculation, printing, waste discharge and multiple protections, i.e.failure self-detection,hints of condensed water shortage, displacement of safety door and digestion tube and so on.

Large LCD Touch Screen Panel
Large LCD touch screen gives visual operation and abundant information,enabling user to have a good command of it.

K1100F
Complete compatible design

Compatible with congeneric products perfectly

Performance advantage

  • Compatible with φ42 digestion tube
  • Titration while distillation, enhance the efficiency rapidly.
  • User friendly design, color touch screen, easy for operating
  • Faster ARM system, faster operating rate
  • Digester model SH220F and SH420F is matching K1100F, with φ42 digestion tube

  • Automatic waste discharge and cleaning ensure operator safety and save worktime.
  • External titration cup design gives operator real-time control of the whole test process.
  • Steam flow is controllable, satisfying different test requirements.
  • Regent barrel enjoys fluid absence warning function, ensuring smooth test going.
  • High-precision charging pump and titration ensure test results accuracy.
  • The temperature of distilled liquid is detected real time. If the temperature of distilled liquid is abnormal, to ensure the accuracy of experiment’s result, instrument will stop working.
  • Double distillation model is used to meet different experiments, to retard the speed of acid-base reaction.
  • Digestion tube fast drain function is used to avoid operator touch distilled hot reagents, protecting operators.
  • USB or RS485 interface is optional for PC connection.

Technical data:

Measuring range 0.1mg ~200mg N
Analysis time 5~10min/sample
Reproducibility Average value relative error ±0.5%
Recovery >=99.5%
Burette volume 1.0μL/step
Sample capacity solid<=5g/sample, liquid<=20mL/sample
Water consumption in the distillation process 1.5L/min
Data storage capacity K1100: 1000 groups, K1100F: 1800 groups
Power supply 220VAC±10%, 50Hz
Power 2Kw
Net weight 38Kg
Dimensions 455mm×391mm×730mm

Packaging & Shipping

Our Packaging Details:

Nade kjeldahl apparatus Lab Testing Machine Automatic Kjeldahl Analyzer K1100F

Our Shipping

Nade kjeldahl apparatus Lab Testing Machine Automatic Kjeldahl Analyzer K1100F

Our Services

Please contact us by alibaba message or TEL: +0086-571-88064952 for any requirements or questions. There may be a time zone difference depending on your location, but we will respond to you as soon as we can.

We cherish every opportunity to serve our customer! It will be our great pleasure to do business with you and hope it will be a win-win situation for both of us.

Nade kjeldahl apparatus Lab Testing Machine Automatic Kjeldahl Analyzer K1100F

Company Information

Nade kjeldahl apparatus Lab Testing Machine Automatic Kjeldahl Analyzer K1100F

Nade kjeldahl apparatus Lab Testing Machine Automatic Kjeldahl Analyzer K1100F

FAQ

Q: How long is the delivery time?
A: 7-15 working days after we received your payment or order confirmed.


Q: What is the warranty for the equipment?
A: One year. We can provide you lifelong technical support.


Q: What is the payment terms?
A: T/T, L/C, Western Union, etc.

Q: What after-sales service can be provided by Nade ?
A: The after-sales service of Nade is divided into two parts: technical support and maintenance.


Q: What about the technical support and maintenence?
A: Sometimes users will get some problems when they operate the instruments which are unfamiliar or first time use, users can send us emails or call us about detailed information. We will provide users solution or operation video.For so many years’ experience, our instruments works well during warranty period. If there any parts are broken during warranty period, we would like to provide spare parts for free.
